Home / Rotax Engines & Parts / Parts / Two Stroke Parts / Accessories / Gearbox /ROTAX 945-690 RETAINING RING 47X1,75
Main Image

ROTAX 945-690 RETAINING RING 47X1,75

0 Reviews 0 Answered Questions
$3.60/Each
Quantity
Add to Wishlist View More In This Series →
Part# 15-03355
MFR Model# 945-690
No.Rotax Part NumberDescriptionQty 582 Mod. 99PN
12945-690 RETAINING RING 47X1,75115-03355

Overview

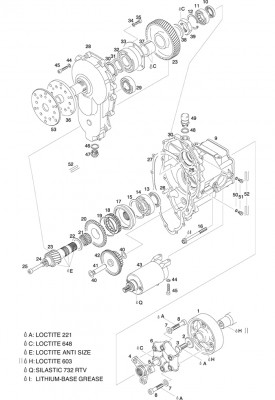

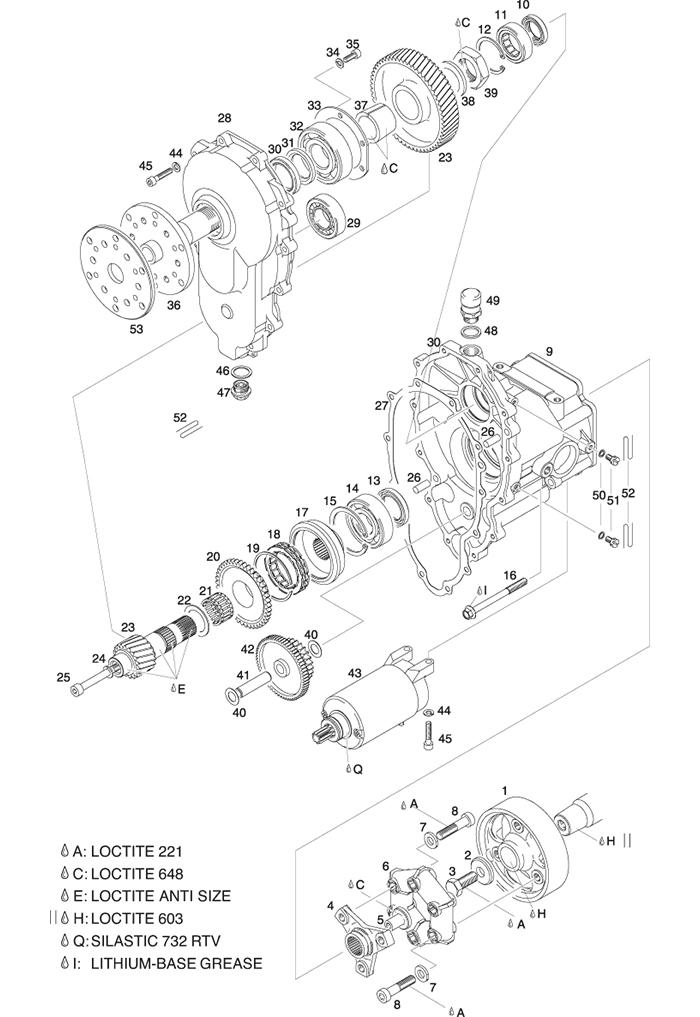

- Items not illustrated
  • a   replace layshaft gear 55 T and pinion shaft 21 T only together.
  • b   replace layshaft gear 57 T and pinion shaft 19 T only together.
  • c   replace layshaft gear 59 T and pinion shaft 17 T only together.
  • d   replace layshaft gear 60 T and pinion shaft 15 T only together.
  • e   NOTICE left-hand thread.
  • f    coupling flange 958-971 and sealing ring 950-084 has to be used as a set.
  • g   coupling flange 958-970 and sealing ring 950-085 has to be used as a set.
  • h   gear set and splitted cone sleeve 847-757 has to be used together!
         NOTE: Included starter relay. see also SI-2ST-007


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
447
503
582
m90
582
m99
618
Price
13
950-084
 OIL SEAL 32X47X7
1f
1f
1f
1f
$71.56
