Cleveland Conversion Kit 199-08401

2 Reviews 5 Answered Questions
$4463.00/Each
Quantity
Add to Wishlist View More In This Series →
Part# 199-84A
MFR Model# 199-08401
DescriptionPart Number
Cleveland Wheel & Brake Conversion Kit199-84A

Overview

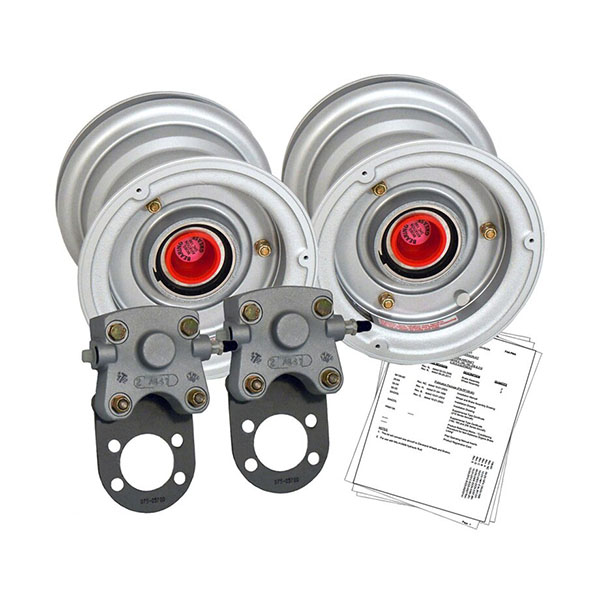

Important Note: Image is for reference only. Individual components may vary by kit.

Cleveland Wheel & Brake Conversion Kits for Cessnas

Please request quote on any unlisted kit!

Cessna Wheel & Brake (6.00 x 6) FOR CESSNA MODELS: 120, 140, (SN 8004 thru 13399), 140A (SN 13400 and up), 170, 170A, 170B, 172, 172A thru 172E, 175, 175A, 175B, 175C, P172D, 180, 180A thru 180E, 182, 182A thru 182G.
Description
Part No.
Cessna Wheel & Brake
199-46
Cessna Wheel & Brake (Chrome)
199-46C
Components
Description
Qty.
Part No.
Wheel Assembly
2
40-97A
Brake Assembly
2
30-63A
Bushing
8
145-02200
Bushing
4
145-01000
Wheel & Brake Assy Drawing.
1
*20-134
Installation Instructions
1
*50-24
--
Installation Instructions
1
*50-25
--
Installation Instructions
1
*50-26
Supplemental Type Certificate
1
--
Cessna Wheel & Brake (6.00 x 6) FOR CESSNA MODELS: 180, 180A, B, C, D, E, F, H, J. 185, 185A, B, A185E, A185F, 206E, 206F, TU206E, TU206F, 210, 210A, B, C. 210K, L, T210K, T210L.
Description
Part No.
Cessna Wheel & Brake
199-60
Cessna Wheel & Brake (Chrome)
199-60C
Components
Description
Qty.
Part No.
Wheel Assembly (40-75B)
2
06-40752
Brake Assembly
2
30-52

Installation Drawing (210 series)

1
--

Installation Drawing (180,185,206 Series)

1
--

Supplemental Type Certificate (210 series)

1
--

Supplemental Type Certificate (180,185,206)

1
--
--
Note: Kit to be used only on aircraft with 6.00 x 6 tires.
Cessna Wheel & Brake (8.00 x 6) FOR CESSNA MODELS: 180, 180A, B, C, D, E, F, H, J, & K. 185, 185A, B, A185E, A185E, A185F, 206E, F, TU206E, TU206F.
Description
Part No.
Cessna Wheel & Brake
199-62
Cessna Wheel & Brake (Chrome)
199-62C
Components
Description
Qty.
Part No.

Wheel Assembly

2
040-07504

Brake Assembly

2
030-05213

Installation Drawing

1
50-36

Supplemental Type Certificate (180,185,206)
1
--
Note: Kit to be used on aircraft with 6.00-6, 7.00-6, or 8.00-6 tires.
Cessna Wheel & Brake CESSNA APPROVED RETROFIT FOR THE FOLLOWING AIRCRAFT: 150, F150, A150, FA150, 152, A152, F152, FA152, 177, 177RG, F177RG, 182, A182, F182
Description
Part No.
Cessna Wheel & Brake
199-84
Cessna Wheel & Brake (Chrome)
199-84C
Components
Description
Qty.
Part No.

Wheel Assembly

2
030-07500(1)

Brake Assembly

2
030-11300(2)

Installation Drawing

1
50-36
Note: Cessna Cross Reference Numbers:
(1) C-163030-113(LH) C-163030-114(RH) (2) C-163001-0104
Cessna Wheel & Brake CESSNA APPROVED RETROFIT FOR THE FOLLOWING AIRCRAFT: 172, F172, R172, FR172
Description
Part No.
Cessna Wheel & Brake
199-84A
Cessna Wheel & Brake (Chrome)
199-08413 (formerly 199 84AC)
Components
Description
Qty.
Part No.

Wheel Assembly

2
030-07501(1)

Brake Assembly

2
040-11300(2)

Installation Drawing

1
50-37
Note: Cessna Cross Reference Numbers:
(1) C-163030-011(LH) C-163030-112(RH) (2) C-163001-0104

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Ms Amanda Cox jumped right through her backside to 1, find the parts we needed and 2, get them to me in a speedy fashion. great asset you have there!!

Keith L
September 24, 2020

Cessna 140 Cleveland wheel and brake kit came without the wheel and brake dwg 20-134, installation instructions 50-24 and a copy of the STC. Boo, Hoo.

Mike B
September 9, 2016

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these conversion kits for Cessnas come with the STC?

Yes, these kits will include the STC.

Q: Are wheel covers included in the 199-62 kit?

No. The dust covers do not come with P/N# 199-62. They must be purchased separately, P/N# 157-9.

Q: I don't see the price for the 199-46C. How do I order a 199-46C? Does it come with an 8130?

You will need to use P/N# 05-14544 to purchase this as 199-46C was a duplicate part number. No, it will not come with an 8130.

Q: What is the difference in kit 199-46 and 199-84?

They are two totally different kits. They come with different wheels and brakes.

Q: Does the 199-46 come with 3 bolt wheels or 6 bolt?

This kit comes with wheel p/n 40-97A wheel. This wheel requires 3 bolts to assemble the wheel halves together.
