Aithre Shield eDot 5.0 Carbon Monoxide Detector With iOS App
MFR Model# ASCOED5002
Overview
|

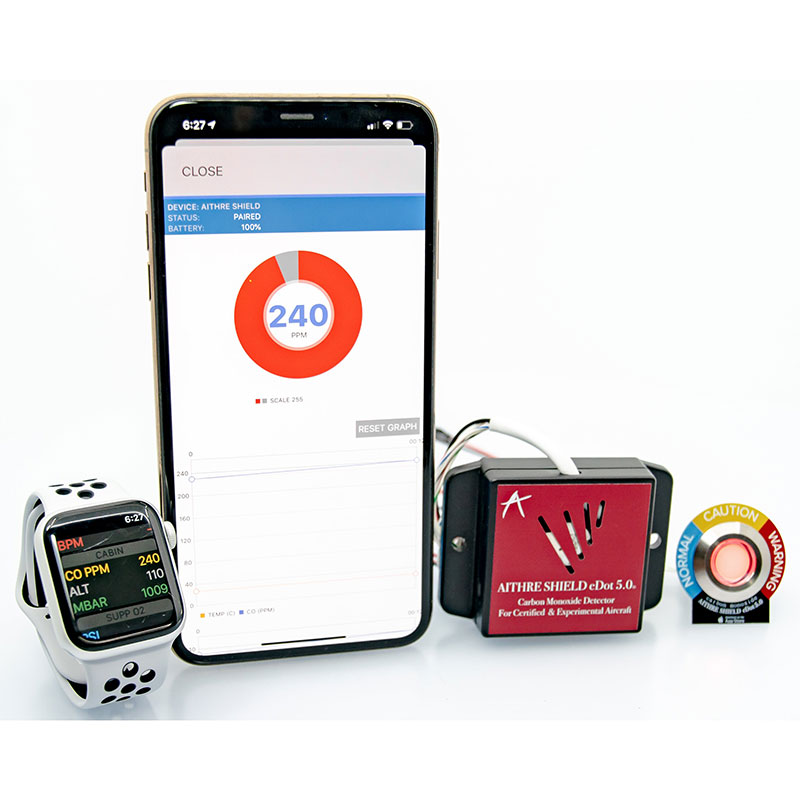

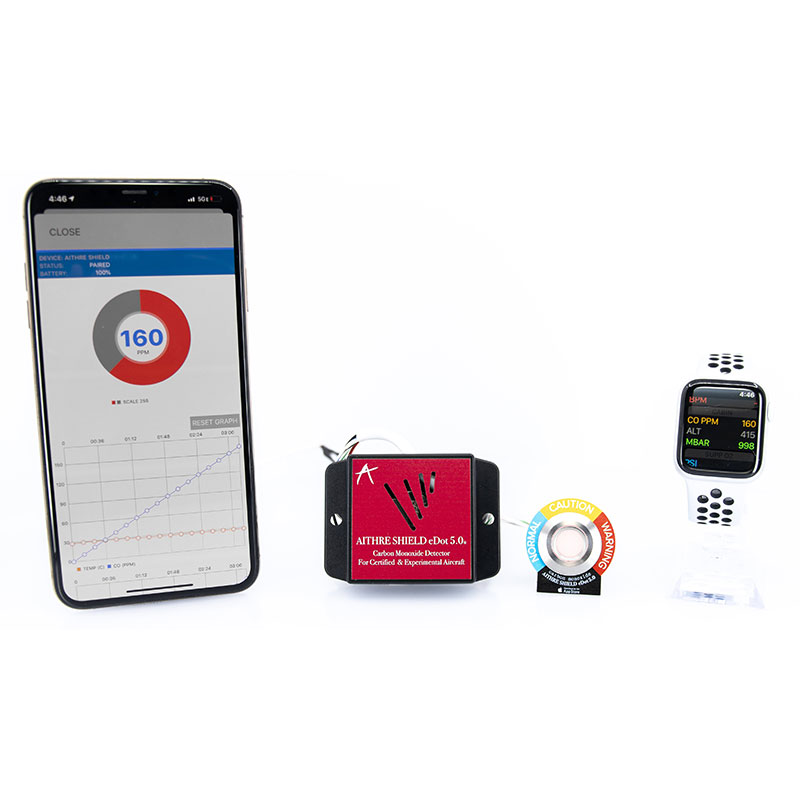

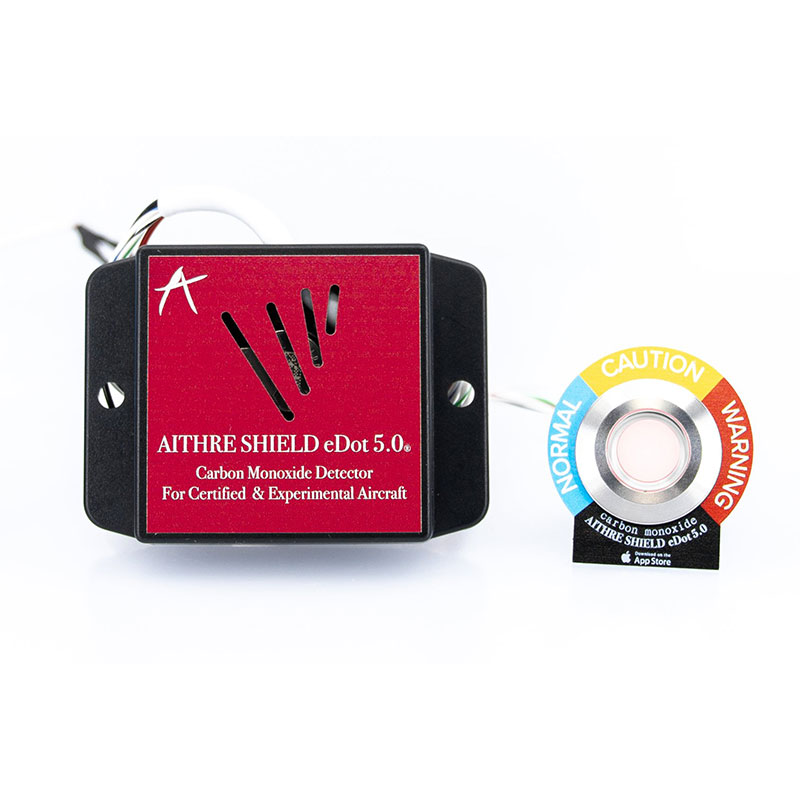

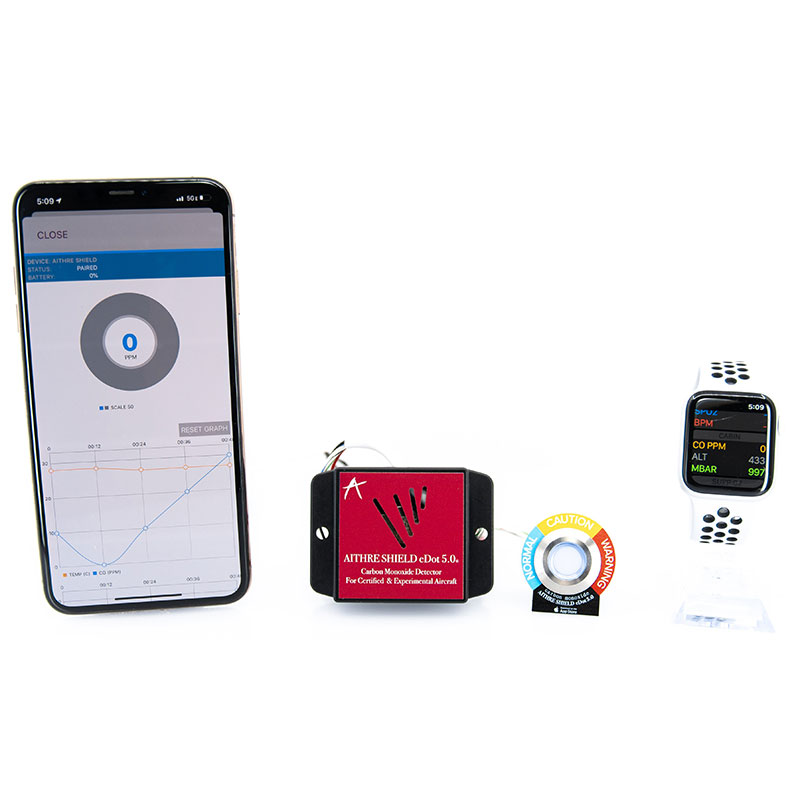

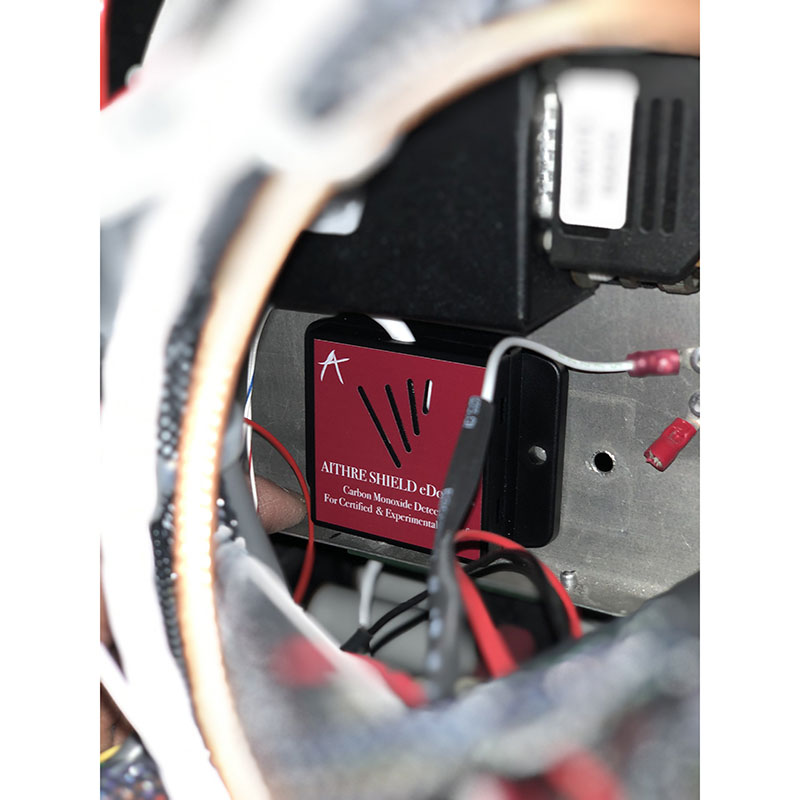

The Aithre Shield 5.0 eDot CO Detector - FAA Part 23 Approved - Panel Led Indicator with iOS App. FAA approved for Certified Aircraft but also available for experimental Aircraft builders: The Aithre Shield eDot 5.0 is the first behind-the-panel device that puts carbon monoxide readings output to panel mounted LED light and to iOS device.
Features a simple wiring installation, a small footprint, iOS app, WatchOS app, and 10 years without recalibration for the CO ppm. |
Features
FAA NORSEE:- Approved for certified Part 23 aircraft (non-pressurized). Must be installed in certified aircraft by an A&P. Experimental can be installed by an owner holding a repairman's certificate.
- 5V, 12V, or 24V compatible with over current and reverse current built-in protection

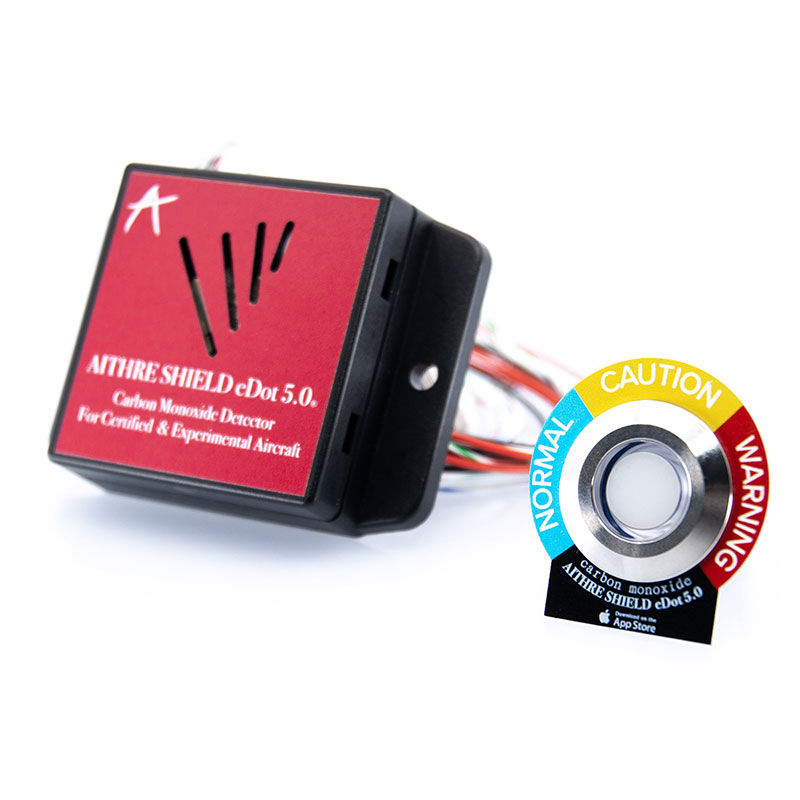

- Simple power and ground wire connection with panel hole for LED indicator
- Built-in dimmer for nighttime operations that is controllable via the app

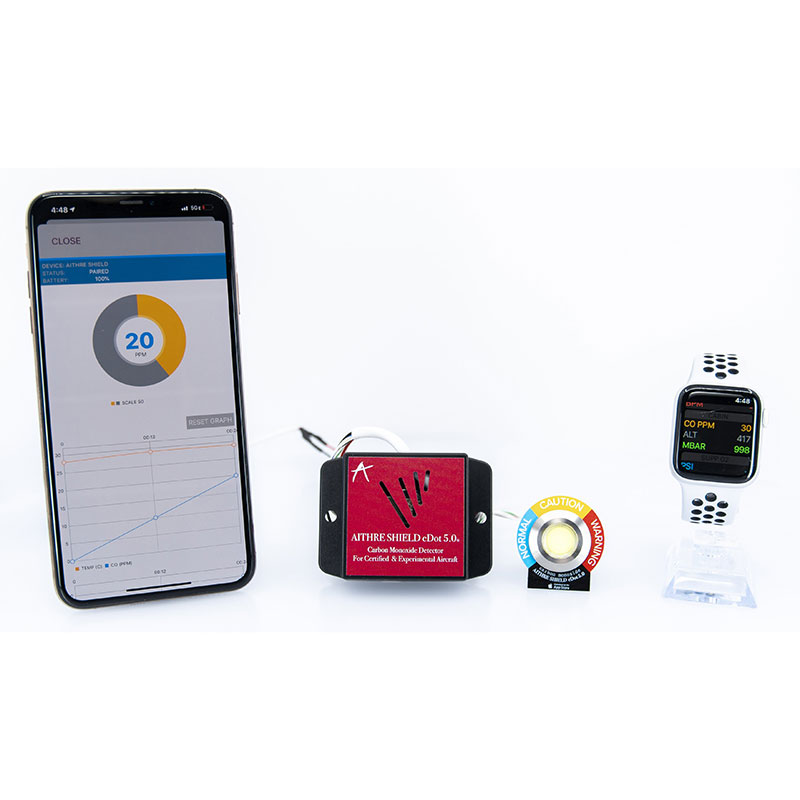

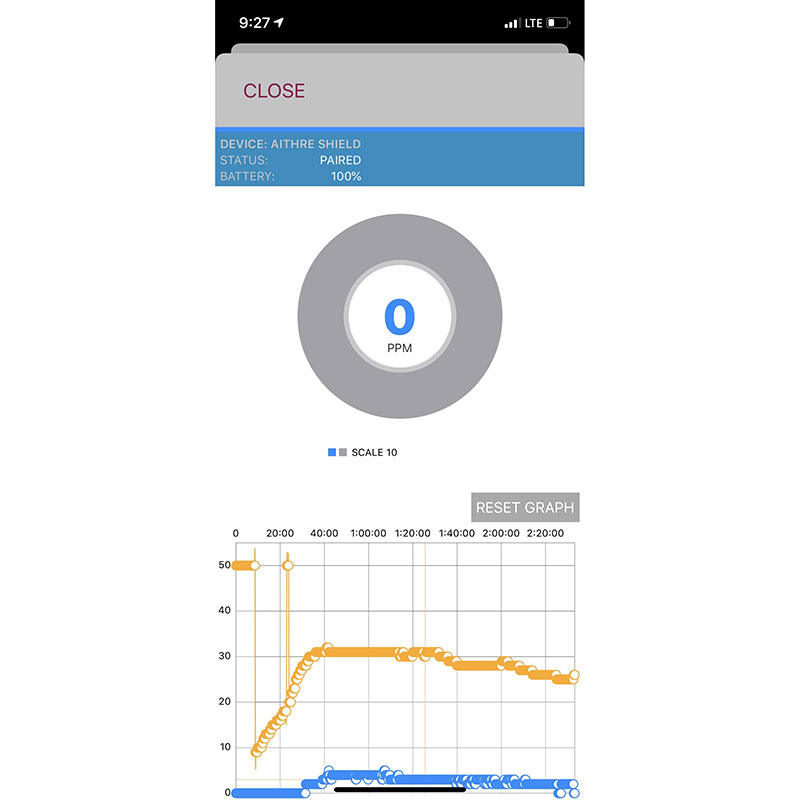

- Integrated with the Aithre Connect iOS app to provide discrete and trend CO levels to your headset (when paired to your iOS device), including default notices for 2ppm, 10ppm, 50ppm, and a custom level notification.

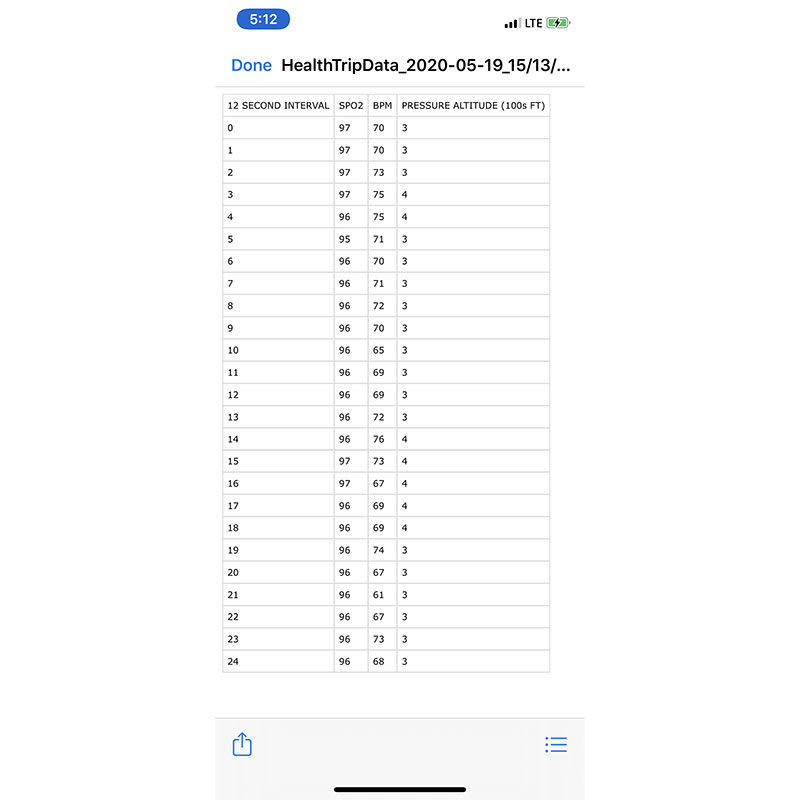

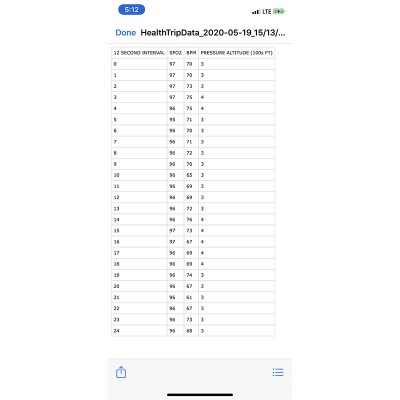

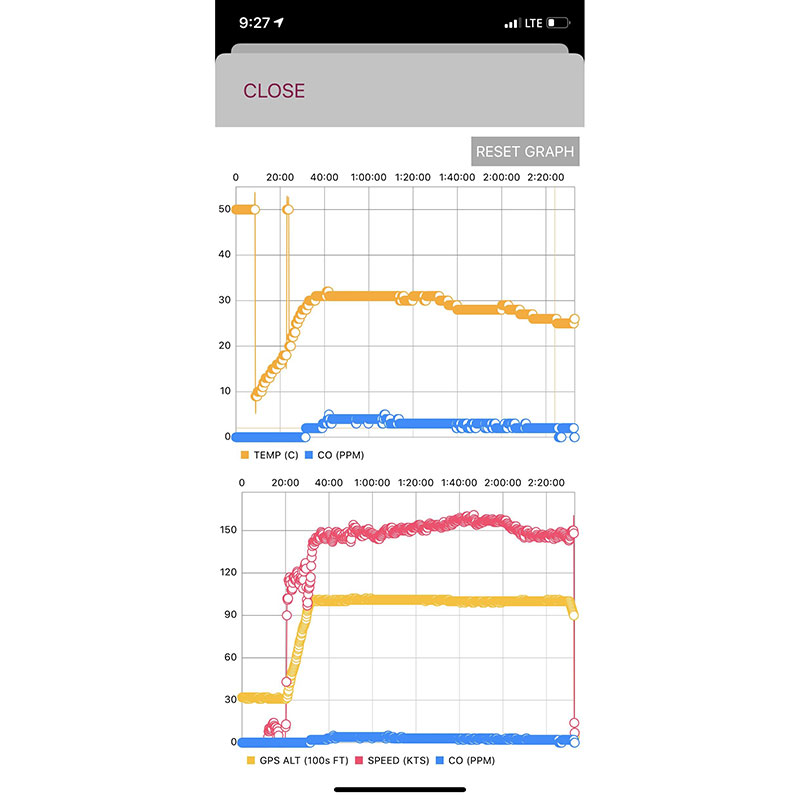

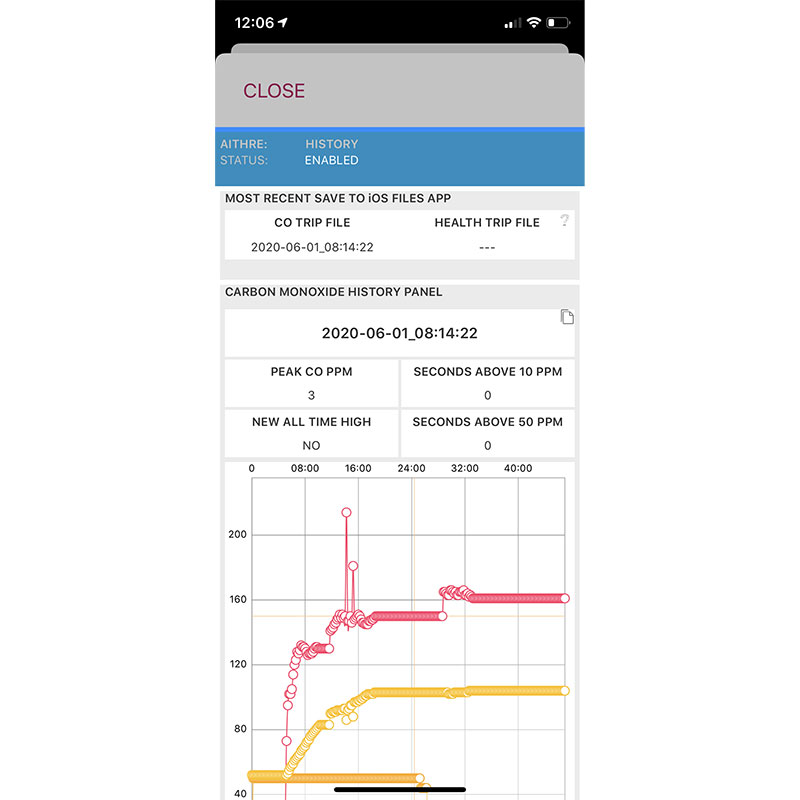

- CO trip history plotted against speed, altitude, and heat is provided for your last three trips in the app and automatically saved after each trip as a CSV file to your iOS FILES app.
- Under 30 second CO sensor response between 0 - 255 ppm with 1 ppm resolution
- Measures just 1.97” x 1.97” x 0.67” tall and weighs 1.1 ounces (mounting flange adds .75" to base width)

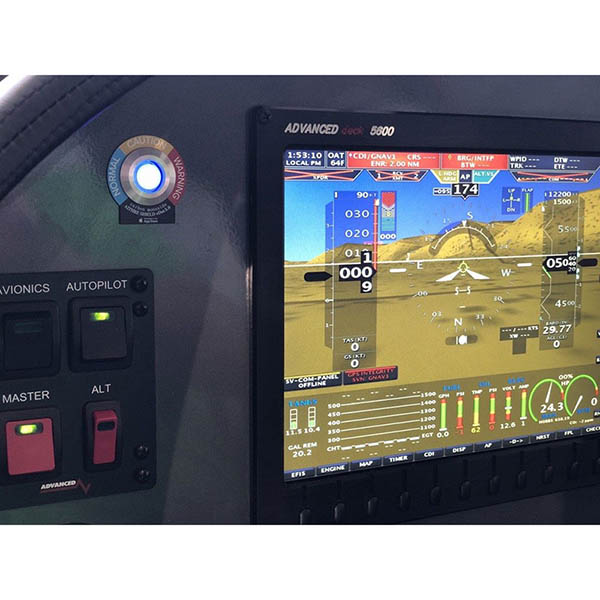

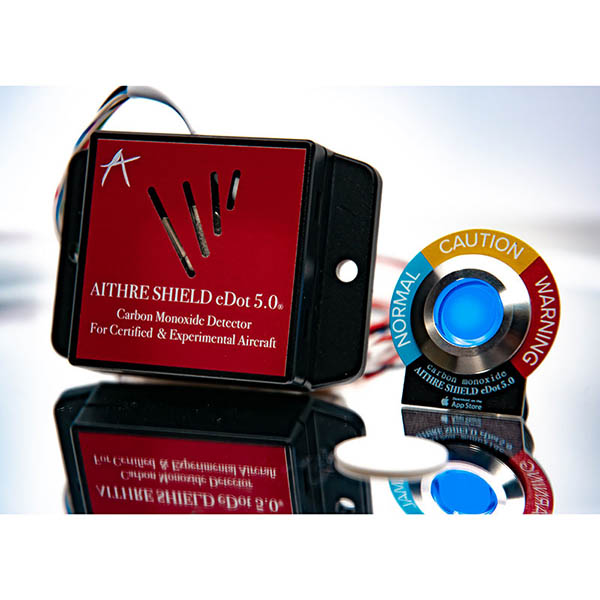

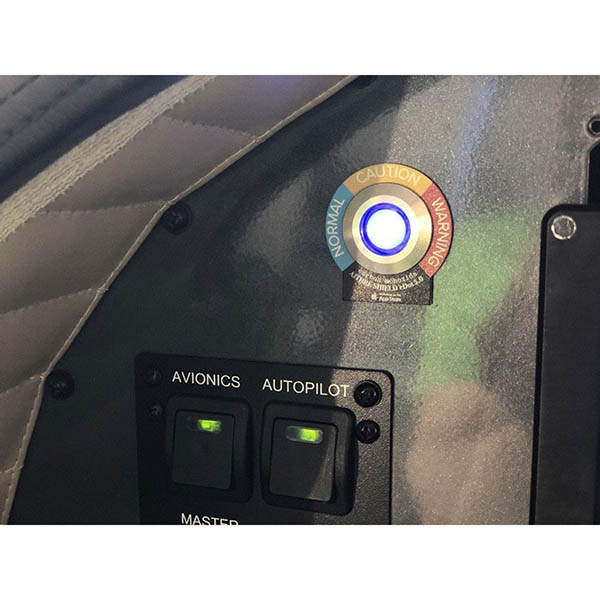

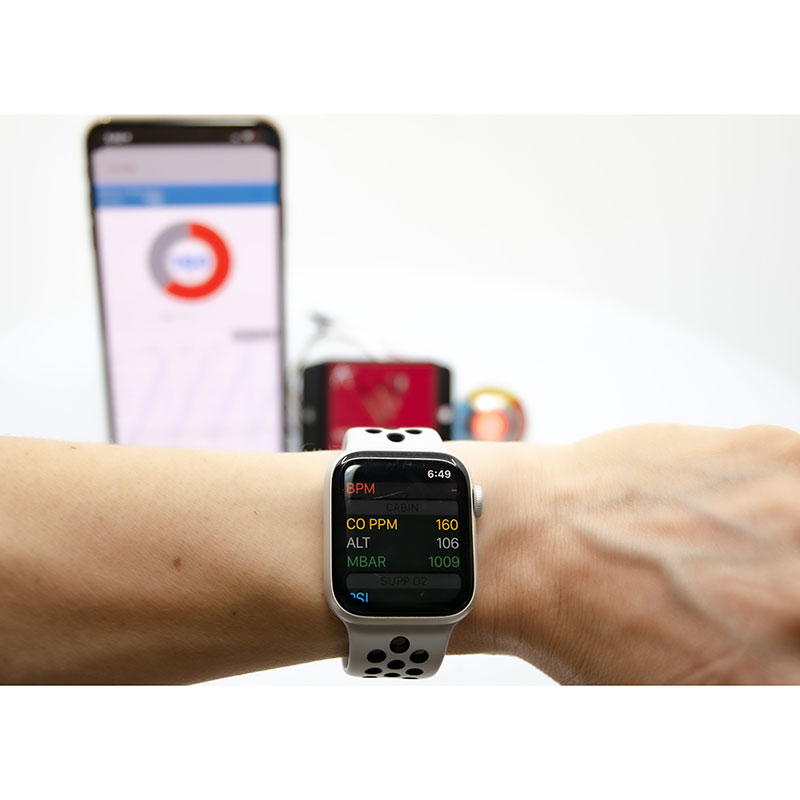

- This device has a wired LED panel mounted indicator with intuitive corresponding light levels to CO. Also compatible with iOS and watchOS.
- Internal temperature adjustment circuit that compensates for temperature induced CO reading errors in the CO sensor between -10 C to +50 C
- State-of-the-art CO sensor requires no recalibration for 10 years under normal operating conditions
- The CO detector is not affected by pressure and altitude changes

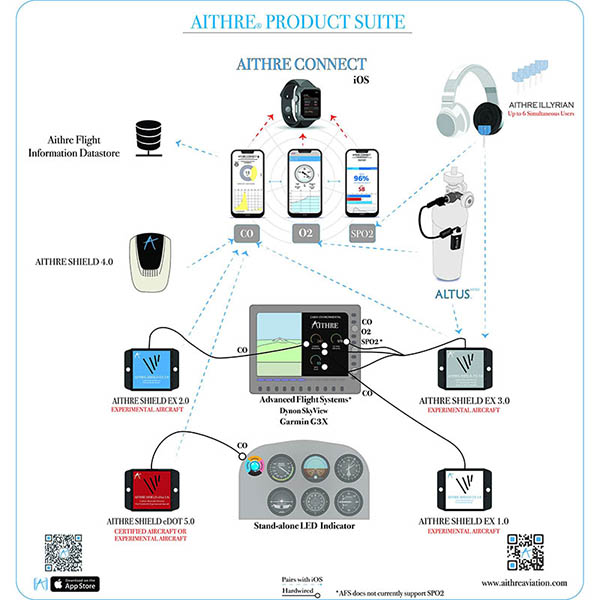

- Use the same app to access your Illyrian pulse oximeter, portable oxygen tank information, and your carbon monoxide levels.
- Every Aithre CO detector is individually calibrated using high precision calibration CO gas and comes with a signed certificate of calibration.
Specifications
- Designed and made in Ketchum, Idaho by pilots (6000 MSL)
Reviews
Aithre is an amazing company to work with. We had a couple minor troubles with our particular install and the folks at Aithre went above and beyond getting us a superior product! Deffinitely recommend Aithre. The Shield seems to be a very sensitive and accurate carbon monoxide sensor with very quick response time compared to all the other carbon monoxide detectors we were looking at. The self-contained edot 5.0 was ideal for our application and two wire install was quick and clean!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This will work with out the app running. The app will just allow for more information and adjustments.
The eDot does not have an audible alarm on the device (it does the visual LED panel light) but as a BLE devices paired to your phone and headset you can have audible alerts for default values or your own preset. You can also see your data and values saved from previous trips to determine a baseline. You can set alerts above your baseline so you can be notified if something irregular begins to happen.
This has a blanket approval with NORSEE FAA NORSEE APPROVAL # PS-AIR-21.8-1602 DRAWING: NO 002-020.
Placard width 35mm is and height 38mm.
