Overview

Features

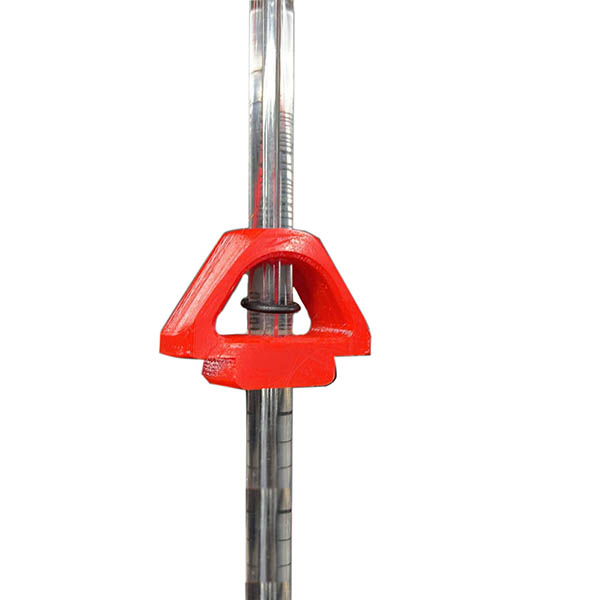

• 3D printed in Red PETG
• References the top of the filler opening to hold stick perpendicular and centered in the opening while taking a fuel reading. This will give you a more repeatable reading and very good to use when setting the K factor value if you have an engine monitor with fuel flow calibration.
• Has flat sides so it will not roll off the wing when set down and also has clearance for fuel cap chains.
• Impossible to drop the stick in the tank when the guide is attached.
• Designed to be used with your existing Fuel Hawk Fuel stick for your airplanes tank configuration.

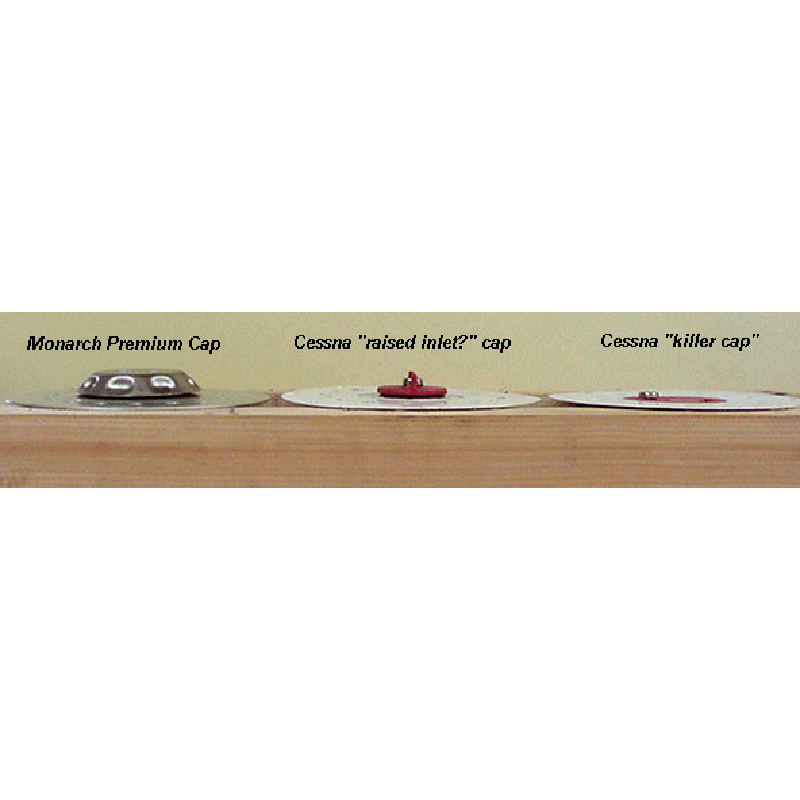

• Please refer to pics showing visual differences between Monarch Caps, Raised Inlet Caps and Cessna Flush (Killer) Caps and verify yours match the version your buying.

Specifications

• Cessna Raided Caps Diameter: 1.55"
• Cessna Monarch Caps Diameter: 1.80"
• When used with other aircraft where Fuel Hawk does not already have a calibrated stick, you will need to buy the universal fuel stick and do your own level calculation or find existing calculations online.

In The Box

• Fuel Guide 3D printed in Red PETG.
• 2ea O-Rings used to keep Fuel Guide attached to the Fuel Hawk Fuel Stick. Only one is needed and includes a spare.
• 1ea Use and setup instructions
