Home / Pilot Supplies / Fire Extinguishers / H3R /H3R Aviation Fire Extinguishers
Main Image

H3R Aviation Fire Extinguishers

64 Reviews 4 Answered Questions
From $306.00 to $18468.00
Main Image
Model Part No. Weight Classification Price Buy
A344T
13-01993
1.25 lb2B:C$458.00
Quantity
A344TC
13-02546
1.25 lb2B:C$567.00
Quantity
C352TS
13-01966
2.5 lb5B:C$712.00
Quantity
C352TSC
13-02547
2.5 lb5B:C$738.00
Quantity
C354TS
13-02548
3.0 lb5B:C$840.00
Quantity
B355T
13-02545
5.0 lb10B:C$1064.00
Quantity
B369
13-02557
9.0 lb10B:C$1803.00
Quantity
B371
13-02558
13 lb2A:40B:C$2531.00
Quantity
B674
13-02562
150 lb10A:120B:C$18468.00
Quantity
B394TS
13-02549
5.5 lb5B:C$1207.00
Quantity
337TS
13-24405
1.92 lb2B:C$2585.00
Quantity
351
13-24406
12.5 lb2A:10B:C$12186.00
Quantity
347TS
13-23573
3.75 lb5B:C$3670.00
Quantity
349TS
13-23574
3.75 lb5B:C$3670.00
Quantity
A384T
13-24491
1.4 lb1B:C$306.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The FAA recommends and/or requires Halon fire extinguishers on aircraft. H3Rs Halon fire extinguishers are the extinguishers of choice in the aviation industry. They cause no mess or damage, and do not require taking a plane out of service for clean-up; a costly process for both the aircraft owner and insurance carrier. The heat-seeking quality of the Halon gas makes it a superior fire fighting agent.

Articles

Click here to download the Putting Out the Flames article from the EAA Sport Aviation magazine.
Click here to download the “Fire Extinguishers: Halon is Worth the Cost” article from the Aviation Consumer Magazine

Shelf Life

The inspection and maintenance requirements for gauged fire extinguishers such as model C354TS, C352TS and A344T per NFPA 10 call for a 6-year maintenance and a 12-year hydrostatic test calculated from the month and year of manufacture. As long as the extinguisher undergoes the maintenance and passes the test it can remain in service.

H3R Aviation calculates the remaining shelf life of its gauged fire extinguishers by comparing the timing of the 6-year maintenance to the month and year of manufacture per the following formula.

(72 months - Months elapsed from manufacture date) / 72 months = Shelf life remaining

For example, if an extinguisher was manufactured in February of 2009 and the current month is June 2009, it has a remaining shelf life of 94%.

(72 months - 4 months) / 72 months = 94%

H3R Shelf-Life Documentation (PDF)

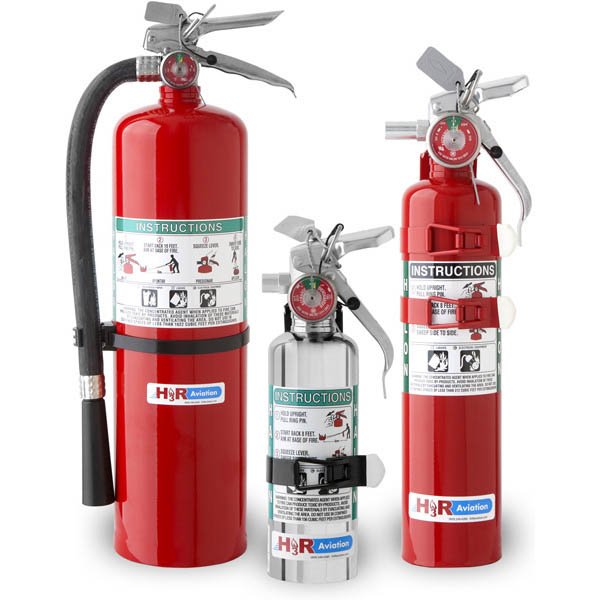

Model Differences

DISPOSABLE, LOW-MAINTENANCE
HALON 1211-1301 BLEND

These effective fire extinguishers contain a proprietary blend of the "liquid streaming agent," Halon 1211, and the gaseous "total flooding agent," Halon 1301. The blend's power lies in the Halon 1301, which is both a firefighting agent and a propellant. These compact, lightweight extinguishers are low maintenance and non-rechargeable. Fire extinguishers include a mounting bracket.
  • Lightweight aluminum canister
  • Disposable
  • Low maintenance - no recharging, servicing or pressure gauge
  • Tested to ANSI/UL 711 and UL 1093
  • Meets DOT requirements
  • Meets the requirements in Advisory Circular 20-42C , "Hand Held Extinguishers for Aircraft" and/or NFPA 408, "Standard for Aircraft Hand Portable Fire Extinguishers"
  • 12-year shelf life
RECHARGEABLE, STURDY
INDUSTRY-STANDARD HALON 1211
Hand-held Halon 1211 fire extinguishers are required on commercial transport aircraft, and for good reason. Although classified a "liquid streaming agent," Halon 1211 also performs remarkably well as a "total flooding agent," seeking out and extinguishing fires in inaccessible places. A 6-year maintenance and 12-year hydrostatic test are required. Fire extinguishers include a mounting bracket or a wall hook.
  • Rugged steel cylinder and all metal valve construction for exceptional durability
  • Pressure gauge enables easy confirmation of charge
  • Tested to ANSI/UL 711 and UL 1093
  • Meets DOT requirements
  • Meets the requirements in Advisory Circular 20-42C , "Hand Held Extinguishers for Aircraft" and/or NFPA 408, "Standard for Aircraft Hand Portable Fire Extinguishers"
Click on Model for more details
P/N 13-01993
P/N 13-02546
P/N 13-01966
P/N 13-02547
P/N 13-02548
P/N 13-02545
P/N 13-02557
P/N 13-02558
RECHARGEABLE, DURABLE
EPA-APPROVED HALOTRON 1™

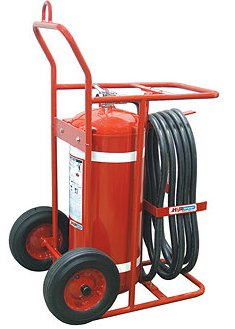

While it is less powerful pound for pound than Halon 1211, Halotron 1 offers all of Halon 1211's clean agent benefits, and Halotron 1 is less damaging to the ozone layer. H3R Aviation offers two Halotron 1 fire extinguishers: one FAA-approved unit for aircraft use and one wheeled unit for the flight line/ramp. These rechargeable extinguishers have pressure gauges and require a 6-year maintenance and a 12-year hydrostatic test.
  • Rugged steel cylinder and all-metal valve construction for exceptional durability
  • Pressure gauge enables easy confirmation of charge
  • Tested to ANSI/UL 711 and UL 2129
  • Meets DOT requirements
Click on Model for more details
P/N 13-02562

FIRE EXTINGUISHER BRACKET
845
845
817S
P/N 13-06170
P/N 13-06171
P/N 13-06172
for the A344T Fire Extinguisher
for the A344TC Fire Extinguisher

for the C352TS, C352TSC, C354TS Fire Extinguisher

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

This one is more robust and has a gauge on it. Slightly heavier, but the other one I purchased was smaller and less expensive but did not last 2 years. I was flying around with an empty fire extinguisher. This one should last much longer and I can view the gauge. Glad I bought it.

Brian R Verified Purchase

Halotron 1 Fire Ext A384T 1.4Lb With Mounting Bracket
December 4, 2024

I hope never to need this, but Im glad to have it! The small size allows it to fit right under the seat of my 182.

Jeffrey A Verified Purchase

Halotron 1 Fire Ext A384T 1.4Lb With Mounting Bracket
October 27, 2024

Timely delivery and peace of mind on a product I hope I wont need!

Helen H Verified Purchase

Halon Fire ExT1.25Lb With Gauge +
September 18, 2024

Not chrome finish but rather raw non-polished aluminum

Don E Verified Purchase

Halon Fire Ext 1211 Chrome +
September 11, 2024

Great quality and the perfect size for a Mooney. Hopefully I never have to use it but the added safety provides a little peace of mind.

Carl A Verified Purchase

Halotron 1 Fire Ext A384T 1.4Lb With Mounting Bracket
August 30, 2024

Delivery was fast with no hiccups. It is nice knowing I can order in a pinch and AC Spruce will get the order out with no delays. 100% recommend

Jason F Verified Purchase

Halon Fire Ext 1211 31B +
July 31, 2024

Fit easily between the pilot and copilot seats. Attached the mount bracket to the floor with 2 screws.

John C Verified Purchase

Halon Fire ExT1.25Lb With Gauge +
July 11, 2024

Perfect fit

Steve B Verified Purchase

Halon Fire ExT1.25Lb With Gauge +
March 12, 2024

Item received quickly, and as always the customer service agent was courteous and professional. Glad to be a customer!

Kevin R Verified Purchase

Halotron 1 Fire Ext A384T 1.4Lb With Mounting Bracket
February 13, 2024

exactly as described

Souther F Verified Purchase

Halon Fire Ext 1211 5Lbs +
January 25, 2024

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the H3R fire extinguisher part # 13-01993 (A344T) come with a mounting bracket?

Yes, it does come with a mounting bracket.

Q: Are there 8130-3/FORM1 documents available for all the Halon H3R Fire Extinguishers?

An 8130 / FORM1 is not required for new fire extinguishers. If you were to get your extinguisher serviced, then it does require an 8130.

Q: Is part # 13-02547 HALON FIRE EXT 1211 CHROME extinguisher rechargeable?

Yes, this is a rechargeable unit.

Q: What is the weight of A344T Extinguisher?

2 lbs. 4 oz. Gross Weight
