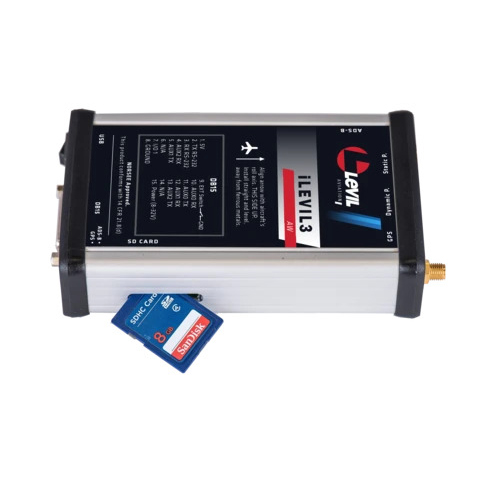

Levil Portable Attitude Indicator Ilevil 3 Aw
MFR Model# 100-03-02-01
Overview
| A more advanced system designed for Experimental, Light Sport Aviation, Ultralights or anything else that flies, floats or hovers! The AW provides ADS-B weather and traffic information, GPS navigation, AHRS and Data Recording. Unlike the SW version, the iLevil AW can be used as a portable or permanent-mount instrument. It integrates static and dynamic pressure transducers which make available accurate indicated airspeed and pressure altitude obtained from the pitot static system, ultimately offering a "six-pack" solution displayed on a tablet. The iLevil AW facilitates installation with remote GPS and ADS-B antennas and power inputs for 12V and 28V systems. Compatibility with a wide range of Apps and mobile devices makes the AW the ideal all in-one solution for a wide variety of aircraft where weight, space and cost are important. Like the SW it can connect to as many as 7 devices simultaneously, providing redundancy and almost limitless panel display diversity. The iLevil 3 AW features 3 serial ports that can be used for data transfer between tablets and other avionics in the cockpit. The Data Recording feature allows you to insert a SD Card and record all of your flight data (position, airspeed, altitude, attitude, etc.) and display the information on various platforms. You have to option to preset your desired file recording format, depending on how you wish to use the data (.gpx,.fdr, or .csv). |
Features
AHRS (Attitude and Heading Reference System)
- No-drift technology: your iLevil is individually and meticulously calibrated for optimal performance to provide un-matched accuracy even during aerobatics
- Attitude is independent from GPS: provides peace of mind at all times
- No-lag, No-tumble: the AHRS data is refreshed at 14 frames per second, and the maximum rate of turn is 500 deg/sec! Suitable for aerobatic flying
- Drives Synthetic Vision: provides the best calculated pitch, roll and heading information wirelessly to your favorite SV Apps.
- Pressure Data: available when connecting the iLevil-AW to the Pitot-Static System, completing the “6-pack” suit of primary flight instruments
- Amazing situational awareness:
- Free in-flight weather information (USA only)
- Air-to-Air traffic from ADS-B out equipped aircraft
- Ground to Air rebroadcast of traffic (USA only)
GPS:
- Supports WAAS for better GPS triangulation.
- Reliable, accurate GPS signal eliminates GPS dropouts as opposed to tablet GPS
ADS-B receiver (978 MHz/1090 MHz):
- Power efficient design: Maximizes reception while maintaining low power consumption, thus reducing operating temperatures and increasing battery life.
- Super sensitive receiver: Captures weather and traffic information even where the competition simply won’t reach.
- Amazing situational awareness:
- Free in-flight weather information (USA only)
- Air-to-Air traffic from ADS-B out equipped aircraft
- Ground to Air rebroadcast of traffic (USA only)
WiFi capability:
- Build the panel of your dreams! No other device offers as much compatibility as the iLevil series! You can combine multiple devices simultaneously with your favorite App for redundancy, or different Apps for diversity
- iOS/Android compatible. You are not limited by a specific platform. iLevil is even compatible with wearable technology such as smart watches and Augmented Reality Glasses.
- Simple and Elegant, wireless equipment saves you time, space and money by facilitating installation. Forget about the wiring diagrams and complicated harnesses, you can have a jet-like glass cockpit in a matter of minutes.
Relay Technology:
- The only WIAM that connects your tablet with your panel!
- Using iLevil’s integrated serial ports, data is relayed from panel mounted avionics to tablet and vice versa. This feature allows you to unleash the power of your tablet and gives you access to functionality that otherwise would not be possible with other WIAMs.
- These are some of the functionality currently available:
- AutoPilot Flight Following using the latest TruTrak’s technology and Xavion’s Smart Guidance and Autopilot control App
- Engine Information Display when using the Grand Rapid Technology’s EIS
- GPS NMEA output required by ES transponders and ADS-B out equipment
- FLARM and TCAS data relay
- ADS-B weather and traffic display on panel mounted glass cockpits
Specifications
- WAAS GPS inside (remote antenna)
- Roll, Pitch, Magnetic Heading, Rate of Turn, Inclination, and G-meter data output
- Indicated Airspeed and Pressure Altitude when connected to the Pitot-Static system of the aircraft
- 978/1090 MHz ADS-B receiver for free in-flight weather and traffic
- WiFi Access Point (enables +10 devices connected to the same iLevil)
- Open infrastructure (compatible with many apps on both iOS and Android platforms)
- Internal Rechargeable battery (4 Hrs) with remote ON/OFF control, useful in power failure emergencies
- Automatic ON/OFF operation through DB15 connector using 5V, 12V or 28V power input
- 3-axis gyros, accelerometers and magnetometers professionally calibrated for aviation-grade performance
- Micro-USB communication for remote firmware updates, data transfer and battery charging
- Compatibility with future ADS-B out solutions
- IN/OUT serial communication (allows data transfer to/from other hardware inside the cockpit (i.e. Engine Monitors, Autopilot etc) • Operating temperature: -10° to 60° C (14°-140° F)
- Everything integrated in a small package: 5"x3"x1"
Documents
In The Box
- Wireless iLevil 3 AW
- USB to Mini USB cable
- ADS-B Antenna
- Remote Mount GPS and ADS-B Antenna
- DB15 male connector
- SD Card
- User Manual
Reviews
I had some trouble with lag time between the box and my tablet. More so with multiple devices connected to the 3 AW. The idea behind the 3 AW plus tech support was great and for some it will work just fine but in the end I purchased a GRT Sport Ex for a little more money.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The table on the website is up to date, as far as data recording from the iLevil3, as of now, some companies are working on their apps to use the data, but right now only cloud ahoy, XPlane flight simulator, excel, and google earth are the main formats to use that information on. iFly GPS have full compatibility with the iLevil products, foreflight, you will receive everything except for weather.
No. A mode S transponder is required to meet the ADS-B Out 2020 mandate.
Yes, this has the WAAS GPS inside.
Per the manual: Power (8-32V), use a 1 amp Fuse for protection.
This is compatible with many apps on both iOS and Android platforms.
Per the manufacturer it will not get information from pitot static on foreflight. It will however get synthetic vision.
No, it will not overlay Zaon traffic into Foreflight.
No, this is not intended as a 6 pack replacement.
