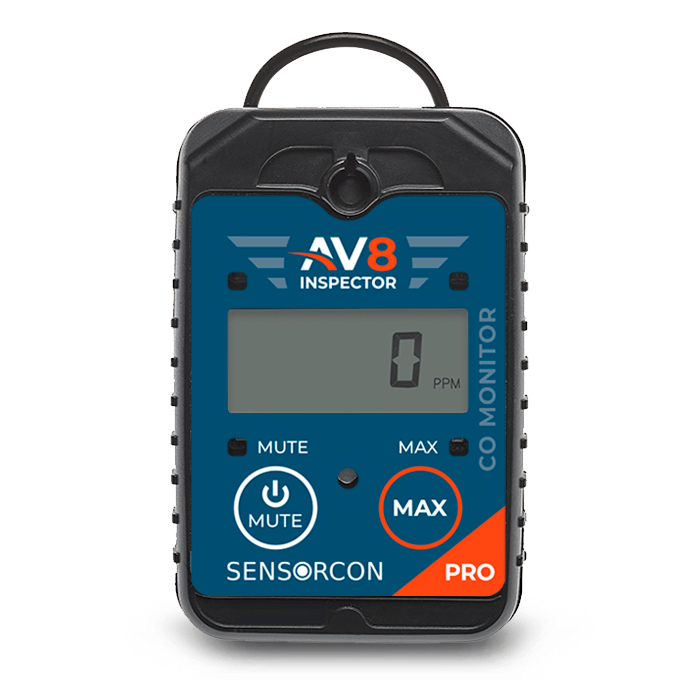

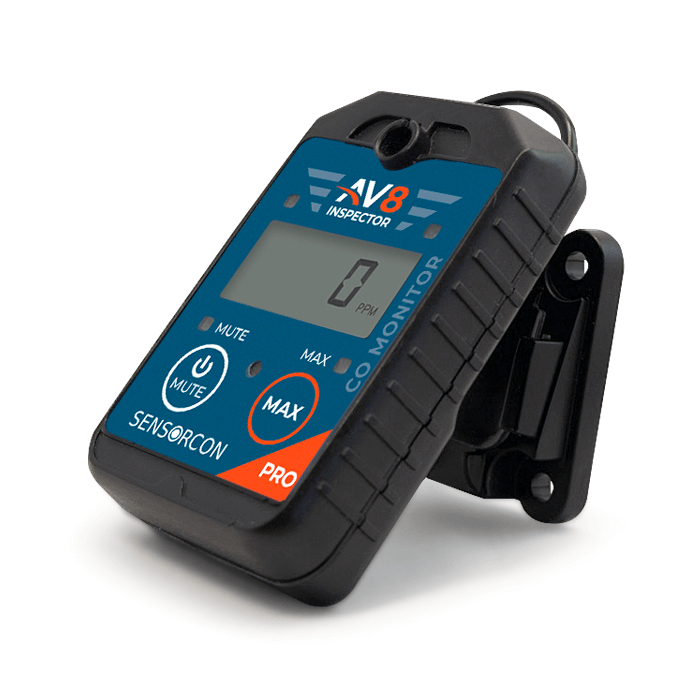

Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
Save 8%
MFR Model# AV8-CO-03
Overview
| In aviation, CO is commonly produced by equipment such as piston-driven aircraft, ground servicing equipment, and airside vehicles. Turbine engine aircraft exhaust and auxiliary power unit (APU) exhaust can also contribute to the accumulation of unsafe levels of CO. Being aware of the potential for carbon monoxide (CO) exposure and poisoning is crucial for eliminating safety hazards and preventing accidents. The AV8 Inspector’s advanced sensor technology allows for accurate readings of carbon monoxide concentrations, before it becomes a problem |
Features
- 2 Year Warranty
- Water Resistant
- Shock Proof
- Pre Set Low Alarm (35 ppm)
- Pre Set High Alarm (200 ppm)
- Visual Alarm
- Audio Alarm
- Vibrating Alarm
- Alarm Adjust
- 24 Hour TWA
Specifications
- Measuring Range: 0-500ppm
- Display Range: 0-1999ppm
- Resolution: 1ppm
- Accuracy: +/- 10% of reading at ambient conditions (0-500 ppm)
- Response time: (T90): < 20 seconds
- Size: ~3.2” x 2.2” x 0.9”
- Unit Weight: 4 ounces
- Battery Life: > 2 yrs (depending on alarm conditions)
- Battery Type: Panasonic CR123A
- Alarm setpoints: 35 ppm low, 200 ppm high
- Alarm types: Visual LCD/LED, Audible Buzzer (80-85dB), and
- Vibrate Mode (vibrate in AV8 Inspector Pro model only)
- Temperature Range : -4 to +122 °F (-20 to +50 °C)
- Humidity Range: 20%-90% RH continuous (0-99% intermittent)
- Sensor Type: electrochemical

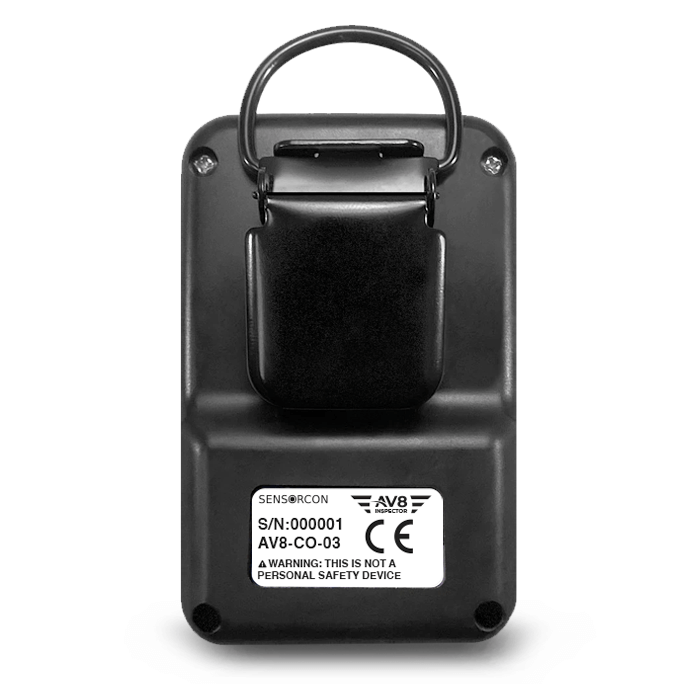

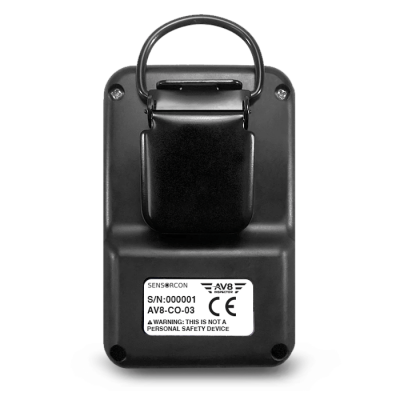

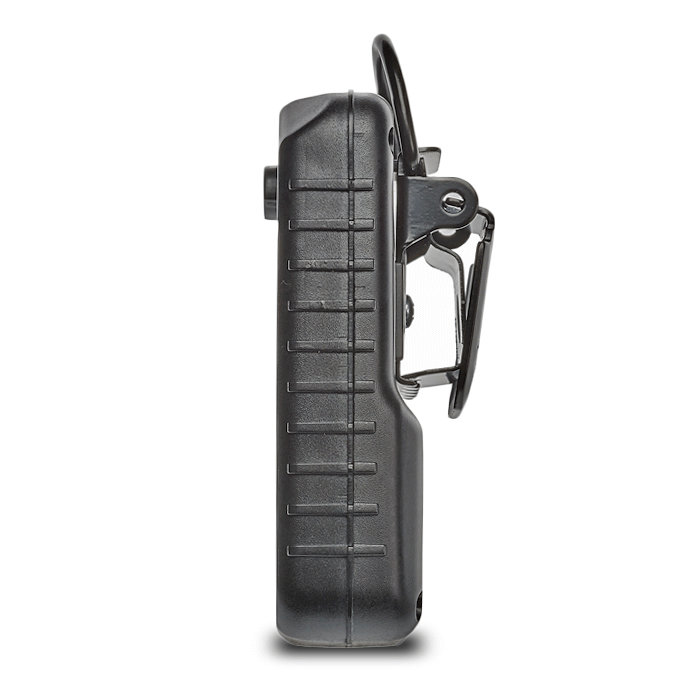

- Steel alligator clip with lanyard loop

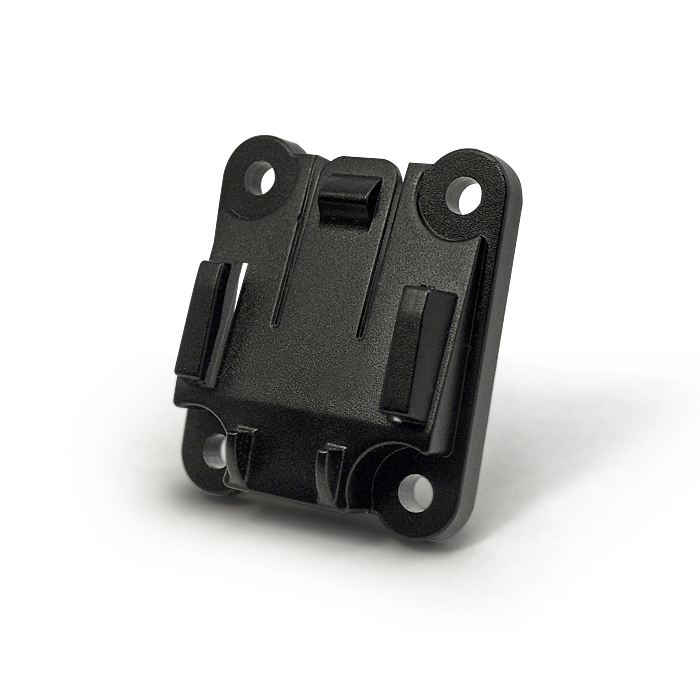

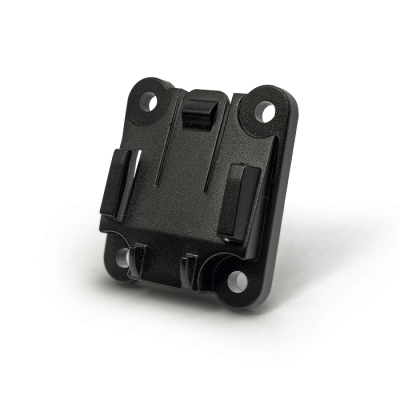

- Removable mount
Documents
Reviews
Really nice product
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
The Sensorcon Av8 appears to be a quality instrument. It was tested in several environments and alerted as expected. I like the mounting choices as it will be used as a portable instrument. I feel they got it right.
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
Great meter, easy to use
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor

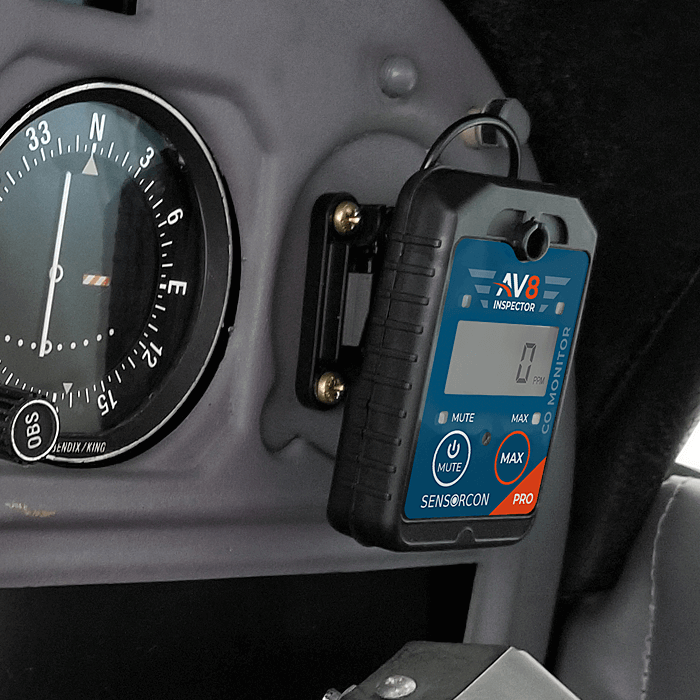

Perfect in every way! Small size for easy placement and panel positioning, quick attachment and detachment, easy to set up and use. Accurate and responsive. Highest recommendation.
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
Works as advertised. Best piece of Insurance you can get for the money
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
Great little CO monitor. Compact size, mount secure with its included clip and seems quite sensitive. Taxiing with door open shows 5-10 ppm and once door is closed, she drops to zero in a few seconds. Easy to read and priced right too.
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
Works exactly as described in the technical pdf. Very sensitive and provides immediate readings.
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
ok
Verified Purchase
Sensorcon AV8 Inspector Pro Portable Carbon Monoxide Monitor
My card CO monitor alerted postive, so I bought this product. I found out when I taxi with the door open, the prop wash was sending CO into the cabin. I watched the values go up as the door was open, and go down with the door closed. A good safety purchase at a good price point.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes the batteries are replaceable and you can buy anywhere. Lithium CR123A.
The Pro version adds Vibrating Alarm, Alarm Adjust, and 24 Hour TWA. Vibrating alarm adds another layer of notice capability by vibrating the unit when the alarm is triggered. Alarm adjust allows you to adjust the high and low values for alarm trigger (they are preset for the standard model). Finally, 24 hour TWA is Time Weighted Average which displays the maximum 8 hour average in the last 24 hours.
Per the manufacturer, it must be replaced every 2 years.
Yes. Per the manufacturer, it must be replaced every 2 years. However, per the manufacturer, the sensors must be replaced by manufacturer.
Buffalo, NY per the manufacturer.
