(Hover to zoom | Use mouse wheel for +/-)
No. | Status | Part Number | Description | Qty | Part Number | Price | Buy |
---|---|---|---|---|---|---|---|
2 | 940-900 | SCREW M5X6 | 15-03235 | $1.64 | |||
5 | 841-561 | ALLEN SCREW M8X45 | 6 | 15-01192 | $0.85 | ||
8 | 241-811 | ALLEN SCREW M6X35 DIN 912 | 2 | 15-00187 | $1.82 | ||
10 | 240-771 | HEX.SCREW M6X10 | 1 | 15-00153 | $0.53 | ||
15 | 932-797 | B. BEARING 6201-Z, 12-32-10 | 1 | 15-03074 | $26.99 | ||
16 | 245-420 | RETAINING RING 32X1,2 | 1 | 15-00235 | $1.90 | ||
19 | 930-580 | OIL SEAL 20X40X7 | 1 | 15-03040 | $25.50 | ||
21 | 827-510 | SHIM 15,3/32,5/0,5 | 1 | 15-00847 | $1.58 | ||
21 | 227-439 | SHIM 17,2/32,5/1,5 | 15-00043 | $4.35 | |||
23 | 847-280 | SPACER 15,2/22/24,5 | 1 | 15-01323 | $13.90 | ||
23 | 847-282 | SPACER | 15-01324 | $14.50 | |||
24 | 927-440 | SHIM 15,1/22,5/0,5 | 1 | 15-02993 | $1.79 | ||
28 | 827-430 | SPRING HOLDING CUP | 1 | 15-00842 | $11.65 | ||
30 | 227-945 | THRUST WASHER 8,1/15/0,5 | 1 | 15-00052 | $1.79 | ||
31 | 227-155 | FRICTION WASHER | 1 | 15-00041 | $9.65 | ||
38 | 841-580 | HEX. SCREW M6X8 | 2 | 15-01194 | $0.53 | ||
41 | 841-540 | TAPTITE-SCREW M6X25 | 4c | 15-01190 | $1.58 | ||
41 | 240-036 | HEX. SCREW M6X25 DIN 933 | 4d | 15-00113 | $0.79 | ||
41 | 240-031 | HEX. SCREW M6X25 | 4 | 15-00111 | $1.64 | ||
42 | 945-880 | RETAINING RING 40X1,75 | 1 | 15-03377 | $2.97 | ||
44 | 853-322 | RECEPTACLE | 1 | 15-01600 | $24.50 | ||
45 | 945-750 | LOCK WASHER A5 | 2 | 07-00435 | $2.81 | ||
48 | 866-710 | CLAMP 142X2,5 MM | 1 | 15-01869 | $1.18 | ||
50 | 851-113 | CLUMP 18/M5 | 15-01510 | $11.50 | |||
51 | 650-370 | ROTARY SEAL | 15-00674 | $49.65 |

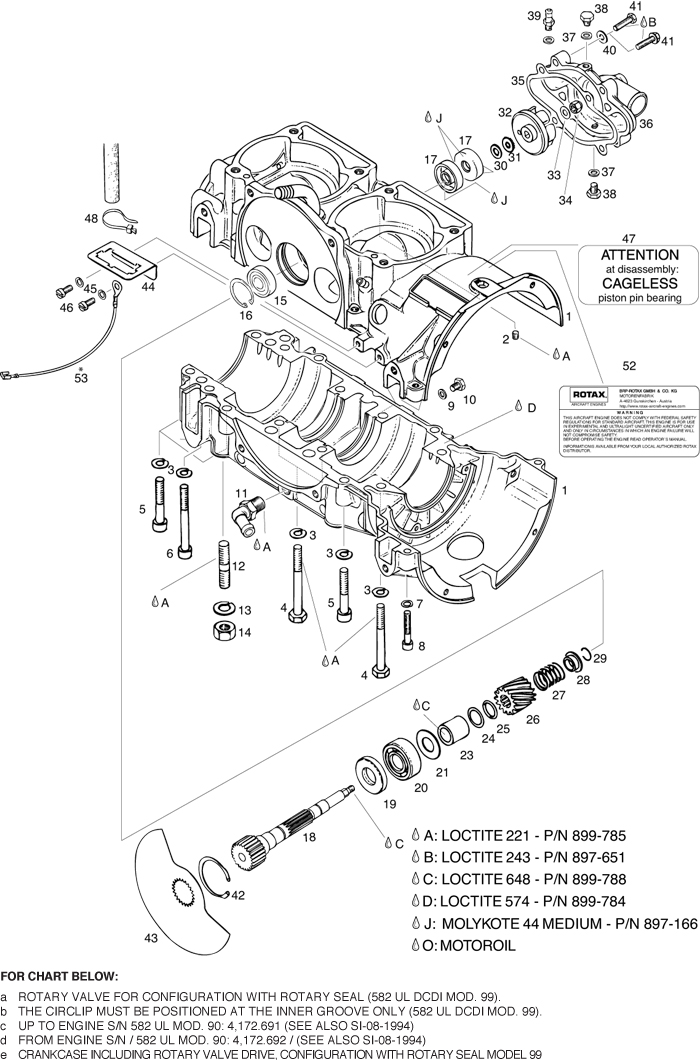

Rotax 582/90 UL Engine Crankcase, rotary valve drive, water pump parts. Explanations of symbols and statements in part number charts:
|
good
Bing Lock Washer A5 With Screw Only 5M 140-566-04
