Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 503UL /Rotax 503 Ul Electronic Boxes And Supporting Plate For Configuration: Free Air-Cooled Parts
Main Image

Rotax 503 Ul Electronic Boxes And Supporting Plate For Configuration: Free Air-Cooled Parts

7 Reviews 1 Answered Question
From $0.63 to $12.65

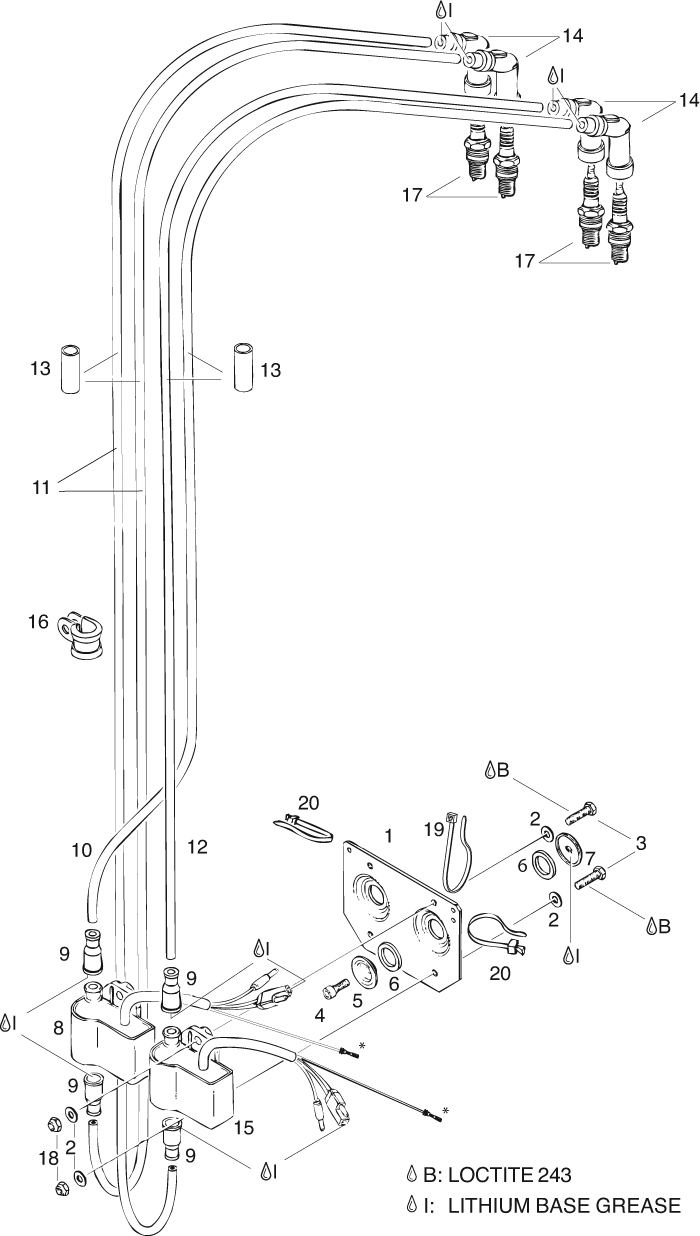

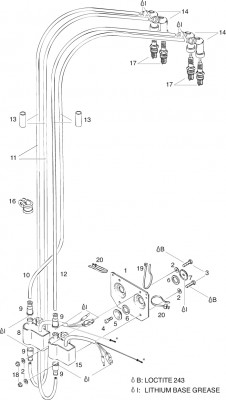

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty PN Price Buy
3240-036HEX. SCREW M6X25 DIN 9334
15-00113
$0.79
Quantity
4241-236ALLEN SCREW M6X162
15-00169
$0.63
Quantity
5827-815DISTANCE CAP2
15-00861
$9.65
Quantity
7944-090SHIM 6,052
15-03312
$9.80
Quantity
13830-962PROTECTION HOSE 12X16X404
15-00909
$4.35
Quantity
16851-100CABLE CLAMP 181
15-01507
$12.65
Quantity
17897-055SPARK PLUG 14 MM, NGK BR 8 ES4
08-00736
$5.55
Quantity
19251-920CLAMP 279X3,6 MM1
15-00268
$1.87
Quantity
20866-710CLAMP 142X2,5 MM2
15-01869
$1.18
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

965-153 SOLD IN METER LENGTHS. FOR CORRECT LENGTHS NEEDED, SEE DESCRIPTION OF INDIVIDUAL PARTS BELOW.

No.
Status
Part No.
 Descriptions
Qty.
10
965-153
 IGNITION CABLE 600MM
ARa
11
965-153
 IGNITION CABLES 875MM
ARa
12
965-153
 IGNITION CABLE 560MM
ARa

Reviews

Submit a Review

Fast and good marketing

Saudi W Verified Purchase

BR8ES NGK Resistor Spark Plug With Non-Removeable Nut
March 28, 2024

Always purchase these plugs from here. They keep my Rotax 503 running strong.

Lawrence S Verified Purchase

BR8ES NGK Resistor Spark Plug With Non-Removeable Nut
September 22, 2023

Excellent solid tip oem rotax plugs

William M Verified Purchase

BR8ES NGK Resistor Spark Plug With Non-Removeable Nut
June 16, 2023

Nice to have these around.

Doug K Verified Purchase

BR8ES NGK Resistor Spark Plug With Non-Removeable Nut
April 12, 2022

Awesome as always

John D Verified Purchase

BR8ES NGK Resistor Spark Plug With Non-Removeable Nut
December 28, 2021

Tom A Verified Purchase

BR8ES NGK Resistor Spark Plug With Non-Removeable Nut
October 5, 2021

Got the Plugs just in time. Thanks

Walter O Verified Purchase

BR8ES NGK Resistor Spark Plug With Non-Removeable Nut
August 25, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The part # 960-550 stand for 4 items, the price is for the four caps or just one?

These are priced and sold per cap.
