3M™ Orbital Sanders 5-inch x 3/16

Select Model:

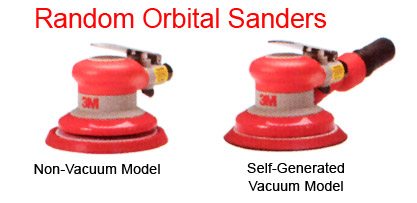

Self-Generated VacuumNon-Vacuum
Quantity
Add to Wishlist

Overview

The all new line of 3M™ air-powered finishing tools includes innovations designed to optimize performance and productivity. 3M™ Tools are designed for smooth operation, and are packed with horsepower. Multiple grip sizes are designed to provide advanced operator comfort, and color-coded levers allow for easy orbit identification.

The 3M's NEW dust management system featuring Clean Sanding Abrasives and Accessories is revolutionizing the dust evacuation process. Discs are designed to cut more and last longer. The patented multi-hole pattern captures and remove more dust compared to 5- or 6-hole products.

Specifications

Model
Tool Dia. Inch(mm)
Vacuum
Orbit Dia Inch
Max RPM
Motor HP (W)
Airflow Rate SCFM (LPM
Height
PN
20316
3"(77)
Yes
3/32"
12,000
.28(209)
17(481)
3.10
05-03482
20319
5"(127)
Yes
3/16"
12,000
.28(209)
17(481)
3.33
05-03483
20314
3"(77)
No
3/32"
12,000
.28(209)
17(481)
3.10
05-03485
20317
5"(127)
No
3/16"
12,000
.28(209)
17(481)
3.26
05-03484

Accessory Info

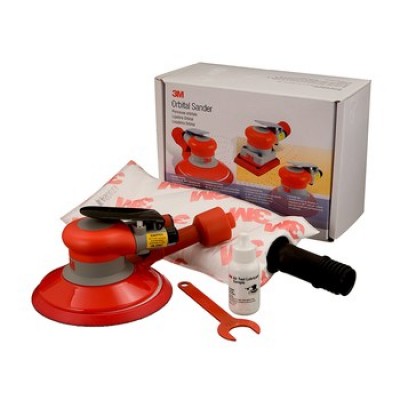

Clean Sanding Filter Bag
Eliminates the need for vacuum hose which improves operator ease of use.


Click Image to Enlarge
3M™ Clean Sanding 236U Discs
An aluminum oxide Hookit™ disc with precise hole design for improved dust extraction constructed on a C weight, intermediate paper

Reviews

Have had the 5 with the vacum bag for over a year now. Don't use it every day but it is a very nice sander. Vacum bag picks upabout 95% of the dust. Sander also runs smooth as it is hand held. Would definetly buy another if needed.

Vernon C
June 27, 2014
