Baileigh Manual Tube Bender Rdb-25

$954.00/Each
Quantity
Add to Wishlist
Part# 13-08972
MFR Model# 1006790

Overview

The RDB-25 manual tube bender is the perfect machine for hose hobbyists that need to bend tube on a budget.  It is made from a sturdy cast iron frame and can be bench or pedestal mounted with the included pedestal.  The RDB-25 from Baileigh Industrial was designed to bend the most common sizes of tubing on safe centerline radii to ensure great looking bends.

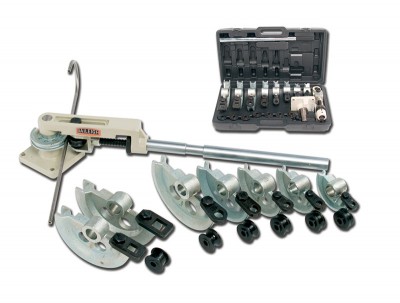

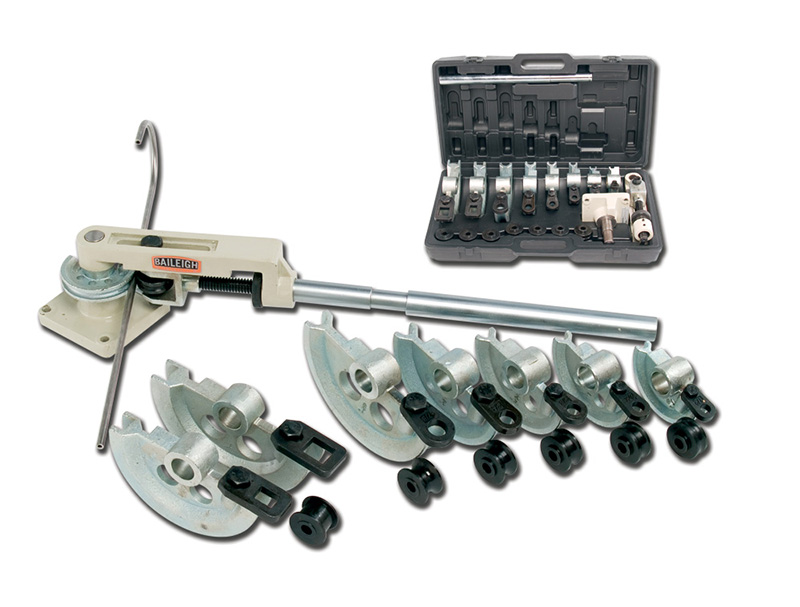

This manual tubing bender comes standard with the following round tube die sets:

  • 3/8" OD x 2" CLR
  • 1/2" OD x 2.25" CLR
  • 9/16" OD x 2.5" CLR
  • 5/8" OD x 3" CLR
  • 3/4" OD x 3.5" CLR
  • 7/8" OD x 4.25" CLR
  • 3/4" Square x 3.75" CLR
  • 1" Square x 4.25" CLR

Also included is a very nice carrying case, which allows the bender to be stored when not in use.  Contact a Baileigh Industrial representative for more information on the RDB-25 manual tube bender.

Specifications

  • Round Tube Capacity: 7/8"
  • Square Tube Capacity: 1"
  • Wall Thickness: .047"
  • Bend Angle: 180°
  • Power: Manual
  • Shipping Weight: 72 lbs.
  • Shipping Dimensions (WxTxL): 13" x 15" x 28"
