Blue Pneumatic Power Spin Rivet Nut Tool BP-350Qc

$700.00/Each
Quantity
Add to Wishlist
Part# 12-03432
MFR Model# BP-350QC

Overview

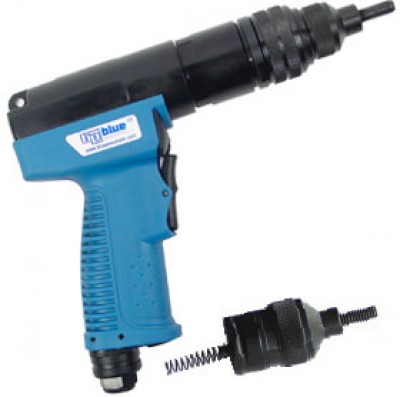

Now with new swiveling air inlet and ergonomic composite handle. Technology and production techniques make this tool possible. This rivet nut tool is designed to fill the gap between the hand tool and the "big" high end production spin-pull tools. It offers a solution that is powerful, fast and affordable. It is durable and reliable, perfect for everyday production applications. The spin-spin action places Rivet Nuts ranging from 1/4-20, 5/16-18, 3/8-16 and M6, M8, and M10 in steel and aluminum. It has a quick change nose assembly that easily snaps on and off to change to desired nutsert sizes. It has a teasing, reversible throttle for precise control. Operates at 360 rpm. Recommended operating air pressure is 85-110 psi. Weight 2.8 lbs.

Part includes nose assembly, make selection at time of order.
Nose assembly sizes: 8-32, 10-24, 1/4-20, 5/16-18, 3/8-16
  • Accessories
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is a new nose cone require for each size mandrel? or Is one compatible with multiple mandrels Ie m6 and 1/4 bolts?

Each thread size has its own nose assembly. Nose assemblies are sold separately.

Q: What is the clearance required around the chuck for installing rivet nuts into tubs? Or is there a smaller diameter extension?

The diameter of the chuck is about 2" and it could go about 4" into a channel. There is not an extension for this.

Q: Is this a pull type tool or does it simply collapse the rivet by spinning the center bolt?

This is a spin type.
