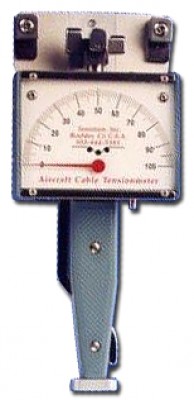

Tensitron Acm-Series Cable Tension Meters

From $1751.00 to $1798.00
Description Cable Selection Accuracy
Full Scale
Range
(Lb.)
PN Price Buy
ACM-1001/16, 3/32, 1/8, 5/32"4%5-100
12-01050
$1775.00
Quantity
ACM-2001/16, 3/32, 1/8, 5/32, 3/16, 1/4"4%20-200
12-01051
$1798.00
Quantity
ACM-4001/16, 3/32, 1/8, 5/32, 3/16"6%40-400
12-01053
$1775.00
Quantity
ACM-6001/8, 5/32, 3/16, 1/4"8%40-600
12-01362
$1751.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

KEEP AIRCRAFT FLYING SAFELY

ACM tension meters quickly and easily verify accurate cable tension. No more fumbling with risers with the built-in cable selection. Plus, calibration charts are attached to the meter.

YOU’RE ONLY AS GOOD AS YOUR TENSION METER

When tension is critical, our meters help companies stay competitive and protect profits by providing accurate, reliable results so that they can deliver high-quality solutions that achieve maximum results.

Attention: Tensitron products may not be cancelled or returned.

NOTE: If your ACM Tension Meter needs to be recalibrated, please fill out the information via this link HERE

Features

  • FAST - Quickly test control cable tension
    • Quick, easy, one-handed operation
    • Calibration chart attached to meter for quick, easy access
    • Compact design allows access to small spaces
  • ACCURATE - Improve aircraft safety and performance
    • Measures wide range of aircraft cables, with inch or CWT diameters
    • Tension ranges from 5 to 600 lb.
  • DEPENDABLE - Save time and costs with durable construction
    • Durable, reliable construction
    • Textured handle for secure grip
    • Operates without electricity or charging
    • Built-in cable selection—no loose, separate risers
  • CONVENIENT - User-friendly and easy to transport
    • Lightweight, portable
    • Memory Lock Pointer holds readings taken in hard-to-reach areas
    • Includes carrying case and NIST-traceable calibration certificate

Specifications

  • CALIBRATION: Calibrated for stainless steel, uncoated, 7x19 cables
  • (except 1/16” which is 7x7)
  • DIMENSIONS: All models except ACM-600 are 8.24” long x 3.38” wide x 1.56” thick.
  • ACM 600 is 8.24” long x 5.20” wide x 1.56” thick
  • WEIGHT: Approximately 21 oz.
  • DISPLAY: Analog (For a digital aircraft tension meter, consider the ACX-1 series.)
  • WARRANTY: One year against factory defects.

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Item ordered, shipping slip showed it was in the box, but in reality it was not and we had to track it down and be very insistent with customer service that it be shipped quickly to us as it was holding up a customers airplane. If i did not push the matter the tensions would have gotten to me much later

Richard O
January 30, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the ACM-600 come with manufacturer's certificate of conformance or any type of calibration cert?

This unit will come with a calibration certificate. If manufacturer's c of c is required, please request at time of order. Additional charge for manufacturer's c of c will apply.

Q: Does the ACM-200 come with manufacturers certificate of conformance or any type of calibration cert?

Yes, the certification paperwork is included in the box.
