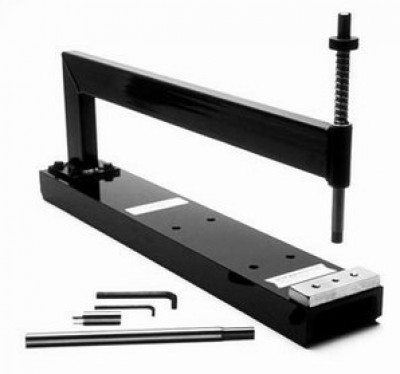

Hand Riveting & Dimpling Tool

$401.00/Each
Quantity
Add to Wishlist
Part# 12-00177
MFR Model# 1001

Overview

Our hand rivet & dimpling tool is used for hand dimpling of skins and small parts and for hand riveting of parts, assemblies, and spars. This tool maintains alignment of the dies to each other, and insures proper alignment to the work surface for superior dimpling results over either rivet gun or free-hand dimpling methods.

Features

  • 20" deep x 4" tall throat
  • Foam-filled 1" x 2" steel tube arm
  • Heavy wall aluminum channel base
  • Bronze 1/2" I.D. guide bushings for shafts
  • 1.5" extension shaft for dies
  • Adjustable die holder block.
  • Heat treated and centerless ground stainless steel driver shaft (2)­ one shaft has flat end for riveting with rivet gun & one shaft accepts 0.187" shanks for dimple dies & sets.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

works good, well built.

Vernon H Verified Purchase

Hand Riveting & Dimpling Tool

October 16, 2021

What a difference this tool makes. It made my job of fabricating a new panel with countersunk rivets an absolute joy to construct.

Peter M
August 10, 2020

Not sure how you build an RV without one of these.

W.hewitt
July 5, 2019

This tool is very simple to assemble and use on a flat tabletop. I was amazed how much improvement it was over a hand-held squeezer or hand-held pneumatic air hammer. It's fast and precise for repetitious dimpling work and prevents skin distortion.

Oscar O
May 7, 2014

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this hand riveting and dimpling tool come with a full set of dies?

No. This does not come with any dies.

Q: What rivet and dimpling set needs to be ordered with this tool?

We carry various rivet sets/dimple die sizes that you can use with this tool. As long as the shaft is 3/16" diameter on the dimple die/rivet set, it will work with this tool.

Q: How does the squeeze happen? Must the operator twist the handle?

You use a hammer(dead blow or mallet) to dimple the sheet. You can use a rivet gun but you have to be very careful.
