Met-L-Chek Penetrant Inspection Kits - 16 Ounces

2 Reviews 2 Answered Questions
Select Kit:
4 Can8 Can
Quantity
Add to Wishlist

Overview

Met-L-Chek kits provide a completely portable,job-proven method used throughout the industry to locate cracks, flaws and other defects. These economical and effective kits provide everything needed to make inspections in the shop or field. The penetrant materials are packaged in easy-to-use aerosol spray cans and a can of cleaner included for cleaning parts before inspection. The inspection procedure is easy to learn, accurate and inexpensive. Met-L-Chek can be used on ferrous and non-ferrous materials to find surface defects and ‘thru leaks’. Supplied in a rugged metal case with complete instructions.

They are low in sulfur, chlorine, and other halogens, making them safe for use on Titanium and high Nickel alloys in nuclear applications. Visible inspection penetrants are used primarily for field applications were darkening the inspection area and the use of a black light (UVA) is impractical, in maintenance repair and safety checks, and in manufacturing processes where a visible indication helps in locating the area for subsequent repair work, such as in large rough castings. Visible penetrants are also used for weld inspection and through leak testing of heat exchangers and tanks, where penetrant is applied to one side and developer to the other.

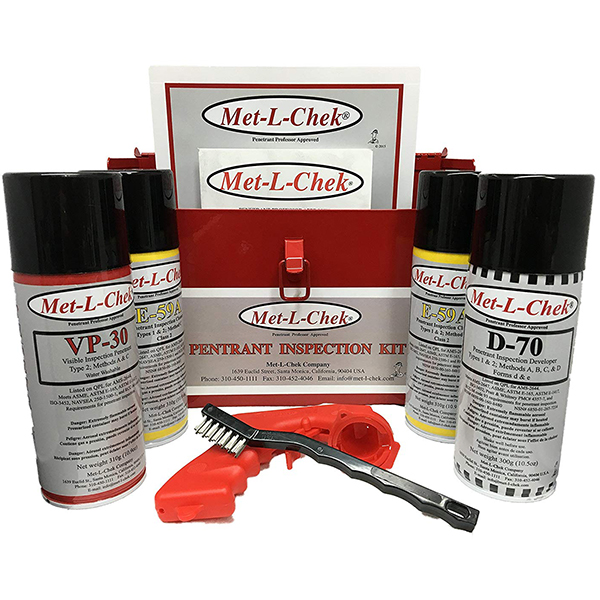

4 Can Kit includes:

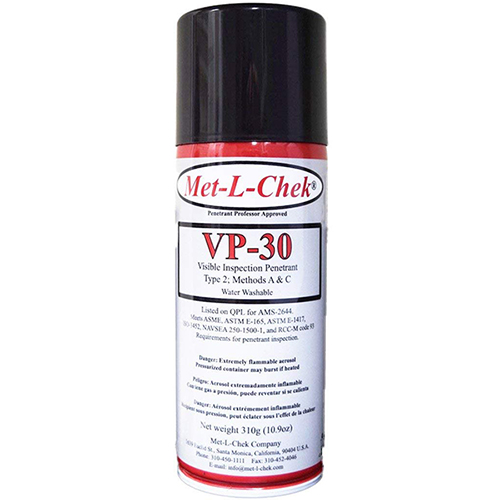

  • 1 - VP-30 Type 2, Visible Red Dye Penetrant

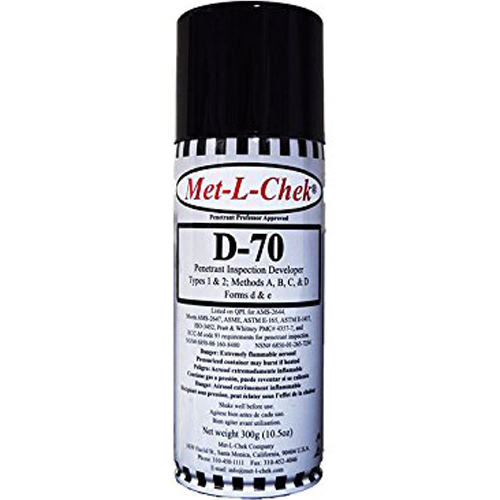

  • 1 - D-70 Form d, Non-aqueous Developer

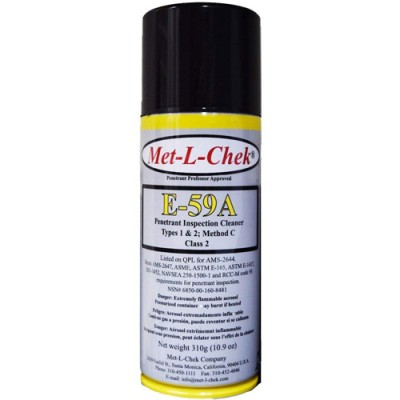

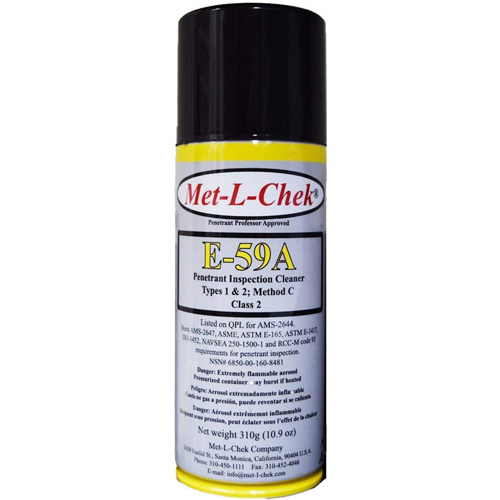

  • 2 - E-59A Class 2, Cleaner/Remover
  • 1 - Spray Gun
  • 1 - Wire Brush
  • 1 - Instruction Manual
  • This penetrant kit comes AMS 2644 QPL certified for ASME Boiler and Pressure Vessel Code, ASTM E-165, ASTM E-1417, NAVSEA 250-1500-1, RDT, and EdF; RCC-M for penetrant inspection.
8 Can Kit includes:
  • 2 - VP-30 Type 2, Visible Red Dye Penetrant
  • 2 - D-70 Form d, Non-aqueous Developer
  • 4 - E-59A Class 2, Cleaner/Remover
  • 1 - Spray Gun
  • 1 - Wire Brush
  • 1 - Instruction Manual
  • This penetrant kit comes AMS 2644 QPL certified for ASME Boiler and Pressure Vessel Code, ASTM E-165, ASTM E-1417, NAVSEA 250-1500-1, RDT, and EdF; RCC-M for penetrant inspection.

Features

  • Certified to SAE AMS 2644 and on the Qualified Products List for aerospace, gas & oil, nuclear, military, marine, and specification work
  • Certifications are provided.
  • Low in halogen, sulfur, and sodium.
  • NDT Level 3 customer support is available.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Arrived on time and was instrumental in completing an annual inspection on time

Aero S Verified Purchase

Met-L-Chek Penetrant 4Pk 16 Oz
July 5, 2022

great kit. all the can caps showed up broken. Probably from impacting the metal case during shipment...

Bluewater E
March 3, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does your MET-L-CHEK kit include: MET-L-CHEK FP-93A, MET-L-CHEK 58-D, MET-L-CHEK D-70?

Per supplier: No, it does not.We do not offer any kits with the FP-93A.

Q: Is there a shelf life on this MTLCHEK product?

5 years from DOM.
