- Photo may represent series and not specific product
- SHARE
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Meyer Tritask Aircraft Jack Set Basic | 12-04777 | $8301.00 | |
| Meyer Jack A622 With AT62222 & JpR1 | 12-21405 | $1512.00 | |
| Meyer Jack Tail Stand # ATS | 12-21415 | $452.00 | |
| Meyer Jack A627 With AT62727 Tube And At-JpR1 | 12-02281 | $1572.00 | |
| Meyer Ajl Set Of Four LeGS For A-6 Jack | 12-21435 | $206.95 | |
| Meyer Jack Tube AT42222 | 12-21440 | $163.80 | |
| Meyer Jack Tube At-2 AT43434 | 12-21445 | $218.95 | |
| Meyer Jack Tube At-3 AT42234 | 12-21455 | $203.95 | |
| Meyer Jack Tube At-4 AT43454 | 12-21460 | $585.00 | |
| Meyer Jack Tube At-28 AT42228 | 12-21465 | $192.75 | |
| Meyer Jack Cap Atc-4 | 12-21470 | $182.90 | |
| Meyer Jack Cap Atc-8 | 12-21475 | $214.95 | |
| Meyer Jack A634 With AT63434 And AtjpR1 | 12-04765 | $1651.00 | |
| MEYER AJL-ZB SET OF 8 LEGS FOR A-6 JACK | 12-04981 | $453.00 |
Overview
| Meyer Hydraulics has served as the general aviation industry standard for over 45 years. Professional service technicians rely on the A400 Series for the confident lifting of aircraft weighing up to 8,000 lbs. with the security and features, one should demand in aircraft jacks. |

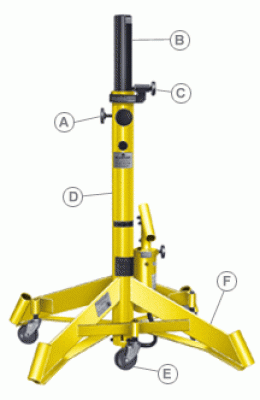

Features
- (A)STEADY KNOBS Prevent motion when aircraft is elevated
- (B)CONVENIENT HOLE SPACING
- (C)POSITIVE SAFETY LOCK Spring loaded safety pin "pops" into the slide tube to prevent accidental lowering.
- (D)ANTI-SNAG ROUND TUBE
- (E)THREE 3" SPRING LOADED CASTERS The steel leg tips never scuff across the hanger floor
- (F)LOW-HEIGHT LEG DESIGN Provides maximum gear door clearance with one section completely free of any protrusions. The 4 legs insure excellent stability.

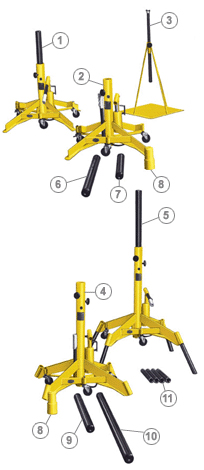

Set Contents
| NUMBER | COMPONENT | P/N |
|---|---|---|
| 1 | A600JS-A Universal Set | 12-04777 |
| 2 | A622 Jack w/ AT 62222 Tube (22"/36") | 12-21405 |
| 3 | ATS Tailstand A627 Jack w/ AT62727 (27"/46") | 12-21415 12-02281 |
| 4 | A434 Jack w/ AT43434 Tube (34"/58") | 12-21445 |
| 5 | A434 Jack w/ AT43454 Tube and AJL Leg Set (54"/78") | 12-21460 |
| 6 | AT42234 Tube | 12-21455 |
| 7 | AT42222 Tube | 12-21440 |
| 8 | ATC-4 Caps | 12-21470 |
| 9 | AT43434 Tube | 12-21445 |
| 10 | AT43454 Tube | 12-21460 |
| 11 | AJL Leg Set | 12-21435 |
Note: AT42228 Tubes (2) and ATC-8 Caps (2) not shown in the above AJS Basic Set photo.
Note: AJS2 Deluxe Jack Set(PN 12-01378) Includes one complete AJS Jack system (describes above) plus one A-5 Jack with AT-1 tube, one AT-28 tube, and one ATC-4 cap. A very popular Jack system for general aviation maintenance.
Reviews
Product works great
Verified Purchase
Ajl-Zb Aircraft Extension Leg Set (8)
Great product. However, DO NOT USE THE APPLICATION CHART like I did. I ordered a set of jacks for a C-414A using their chart for the Cessna 400 series (except Caravan). In hind sight there are multiple models of the C-400 series aircraft and a few different gear configurations. The jacks (mains) are way too tall. Measure before you order!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
That is correct. 12-01378 can no longer be supplied. It has been replaced with our part # 12-04778.
Part # 12-21476 is no longer available and has been replaced by part # 12-04777.
This depends on which part # you order. Please see the "Set Contents" section of the website for the listing of the included items. For example, part # 12-04777 is a universal set.
