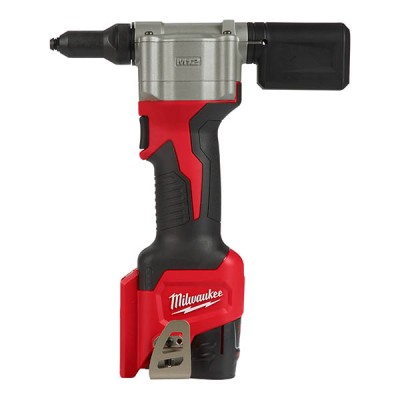

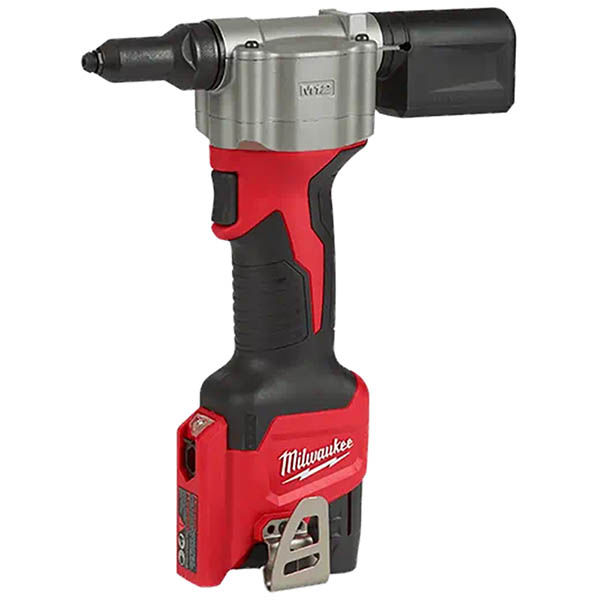

Milwaukee M12 Rivet Gun
Overview
|
The M12™ Rivet Tool is the first cordless solution that delivers fast, easy riveting while maintaining performance, durability, and size. The 2550 can pull up to 250 3/16" stainless steel rivets or 450 1/8" steel rivets on one charge with a 1.5ah battery, and reduces muscle effort from a hand tool by 60%. No compressors or hoses during set up and operation makes this tool a great replacement to pneumatic products.
2X longer life over current cordless solutions delivers greater durability from common jobsite conditions and use. This is the most compact cordless rivet tool on the market, measuring only 6.5” in length allowing users more access in tight spaces. The M12 Rivet Tool is part of the M12 battery platform, offering 90+ solutions on one battery system. |
Features
- Pull Up to 3/16" Stainless Steel Rivets
- 450 1/8" Steel Rivets per charge
- Part of 90+ Solutions on the M12 Platform
- Pull 3/32", 1/8", 5/32", 3/16" Rivets
- Aluminum, Steel, Stainless Steel - Capacity
- 0.8" Stroke Length
- 2,000 lbs. pulls force
- Tool holds rivet in any orientation
- Ergonomically designed for force reduction - M12™ Rivet Tool Ergonomic Study
Specifications
- Battery Specs
- Voltage: 12V
- Battery Type: 12 Volt Lithium Ion
- Product Specs:
- Power Source: Cordless
- Length: 6.50"
- Weight: 4.15 lbs
- Width: 2.63"
- Nose Reach: 1.55"
- Type Of Rivets Used: 3/32"-3/16" All Material
- Nose Piece Sizes: 3/32", 1/8", 5/32", 3/16"
- Battery System: M12
Documents
- Operator Manual (PDF)
- Service Parts List (PDF)

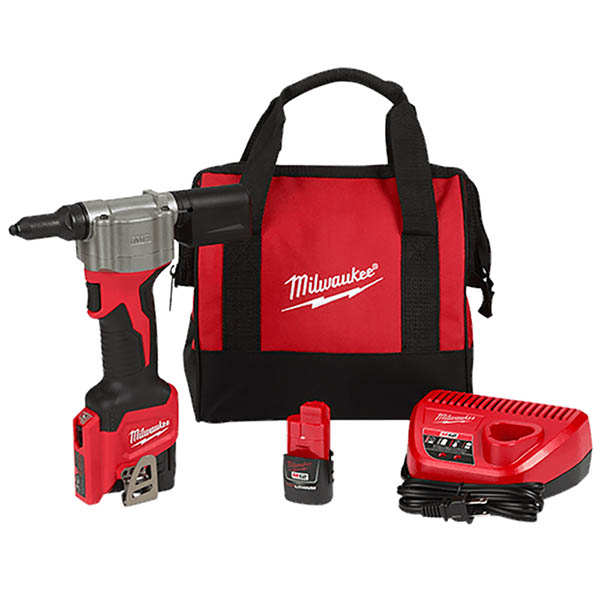

In The Box
- (1) M12™ Rivet Tool (Tool Only)(2550-20)
- (2) Kit adds M12™ REDLITHIUM™ CP1.5 Battery Pack (48-11-2401), charger, case.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per Milwaukee: "They will work with Cherry Max, however, because the jaws were not specifically designed with Cherry Max in mind, the jaws will wear out faster as opposed to using with a standard Aluminum or Steel Rivet."
