Sunex Mini Air Ratchet Sx106B

$126.75/Each
Quantity
Add to Wishlist
Part# 12-01932
MFR Model# SX106B

Overview

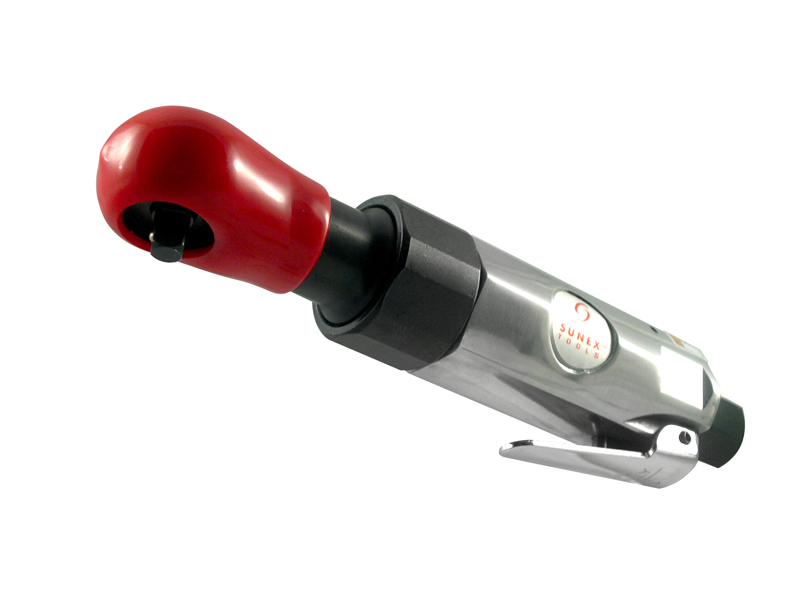

1/4" Drive Mini Air Ratchet Wrench

Whether drilling, driving, grinding, cutting, sanding, spraying or hammering, Sunex ToolsŪ air tools supply you with power, flexibility and exceptional value.

Features

  • Lever throttle for positive speed control
  • Ball detent socket retainer
  • Rear exhaust

Specifications

  • Free Speed (RPM) @ 90PSI 230
  • Torque (ft.lbs.) @ 90PSI 25
  • Square Drive (In.) 1/4
  • Air Inlet (NPT) 1/4
  • Min. Hose Size (I.D.) 3/8
  • Recommended Air Pressure (PSI) 90
  • Average Air Consumption (CFM) 3
  • Sound Level (dBA) 87
  • Length (In.) 8

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I would like to know the following: 1. Torque value range ( in-lb )? 2. Dimension of the ratchet?

The working torque is listed at 25ft.lbs and the dims are 8.65x2.75x2.
