Vividia Ablescope VA-400i Rigid One-Way Articulation Borescope for iPhone iPad Android Windows PC

2 Reviews 1 Answered Question
$453.00/Each
Quantity
Add to Wishlist
Part# 12-06446
MFR Model# VA-400I

Overview

The 2024 edition of the Vividia VA-400i Rigid USB One-Way Articulating Video Borescope introduces several enhancements:
  • Direct connection to iPhone/iPad, Android, and Windows PCs.
  • 1280x720 resolution for clearer, more vivid images.
  • Broad focus range from ~5mm to infinity.

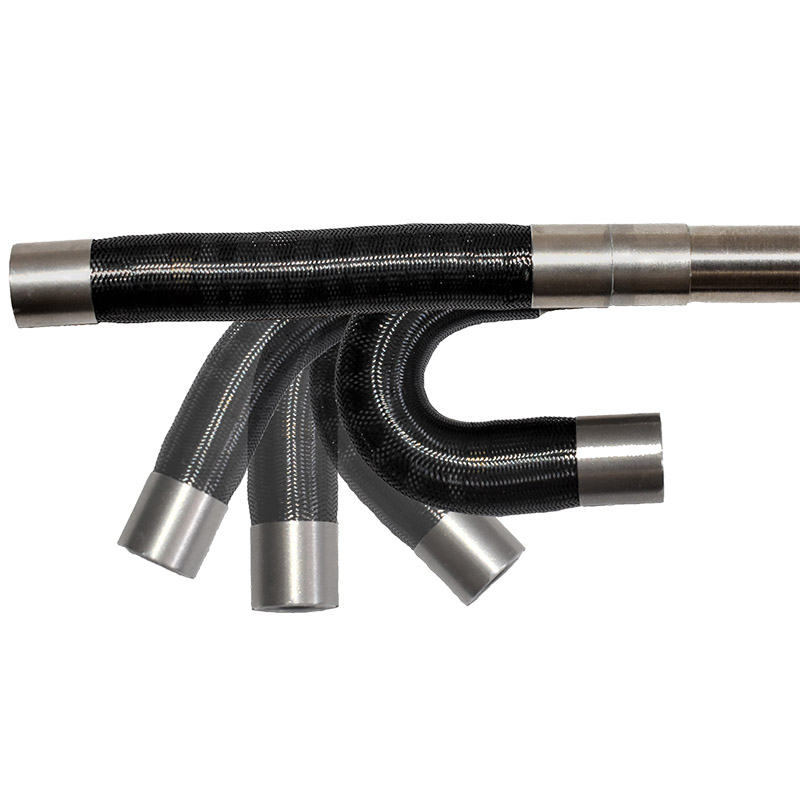

  • Durable tungsten braided mesh layer on the bending part*.

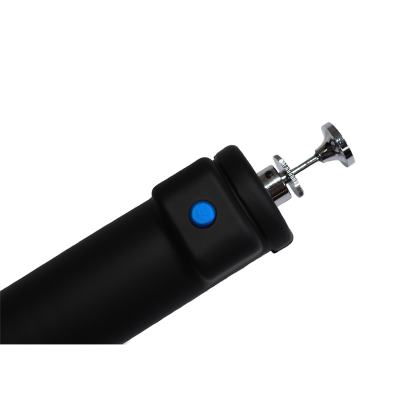

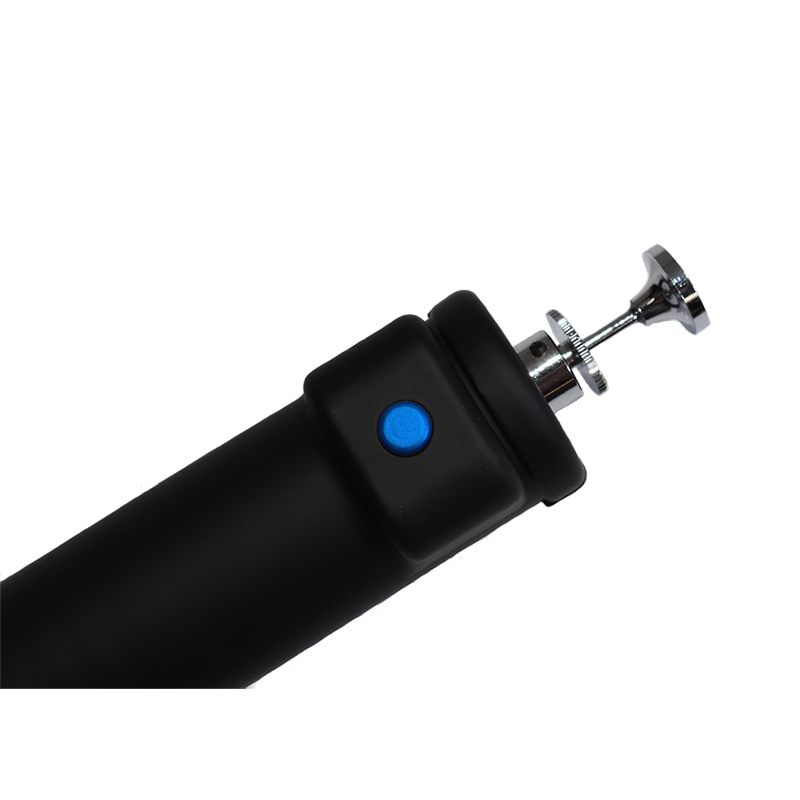

  • Locking/unlocking mechanism for bending angles, by popular demand**.
  • Single button for photo capture.

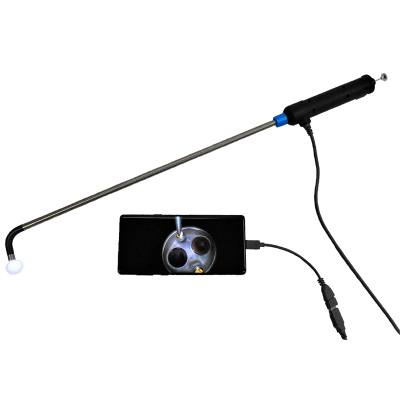

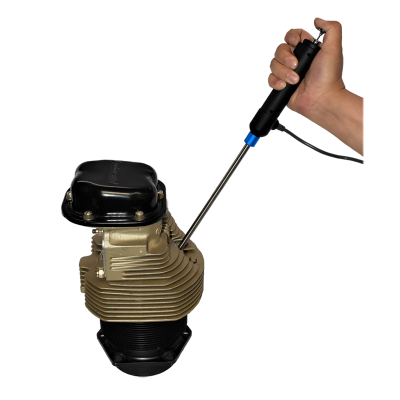

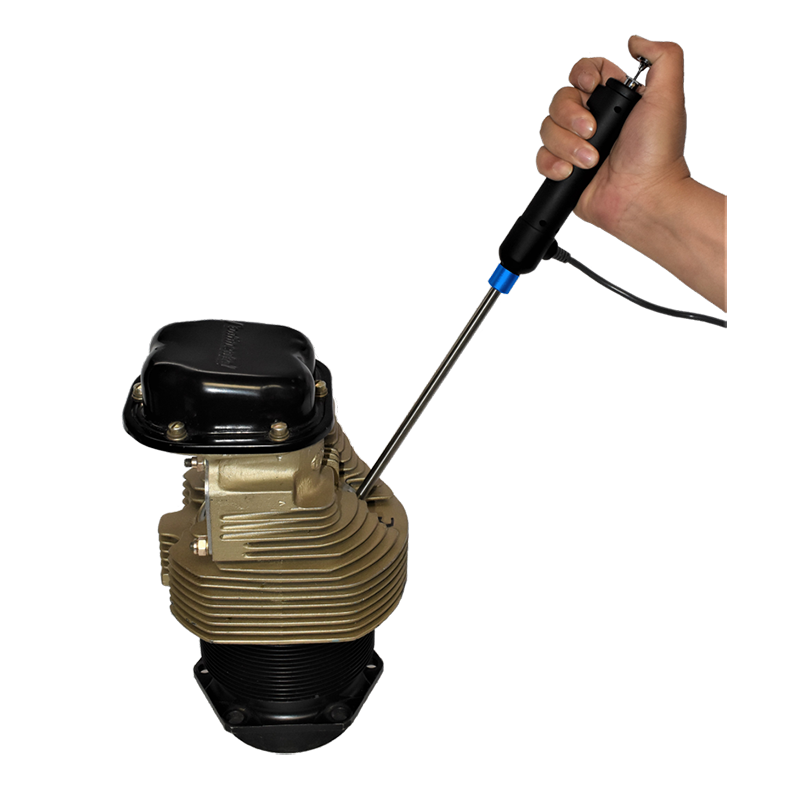

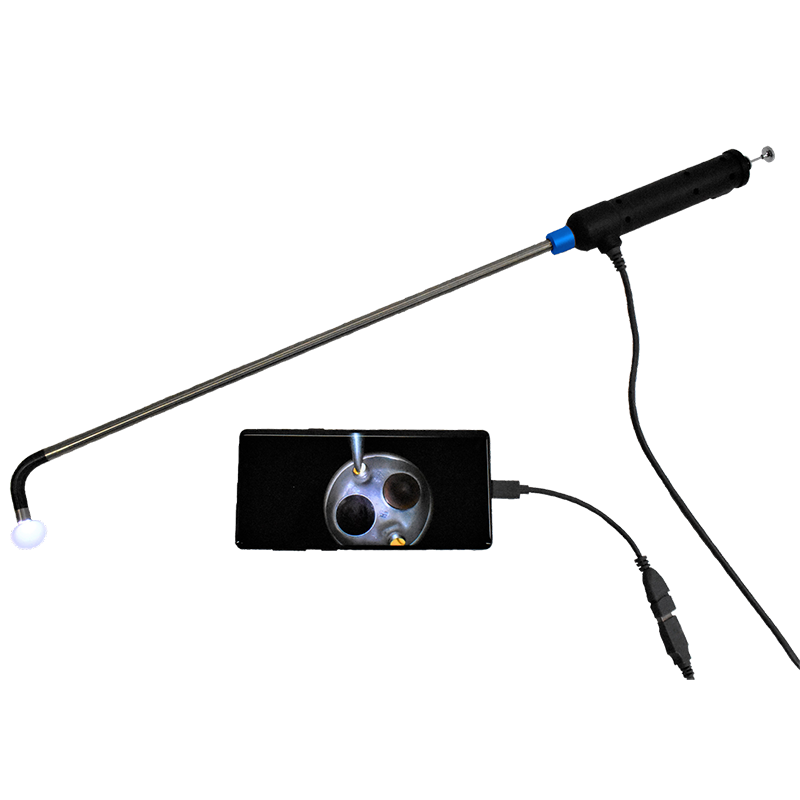

The Vividia Ablescope VA-400i borescope is perfect tool for conducting detailed inspections in difficult-to-access areas, like engines. It features a flexible 180-degree articulating 8.5mm diameter steel probe, equipped with 8 bright LED lights. This design enables thorough examination of dark, internal compartments, particularly the backside areas that are typically hard to see. * No more changing rubber sleeves!
** Locking feature is back due to popular demand.

Note: The LED light brightness can not be adjusted.

Features

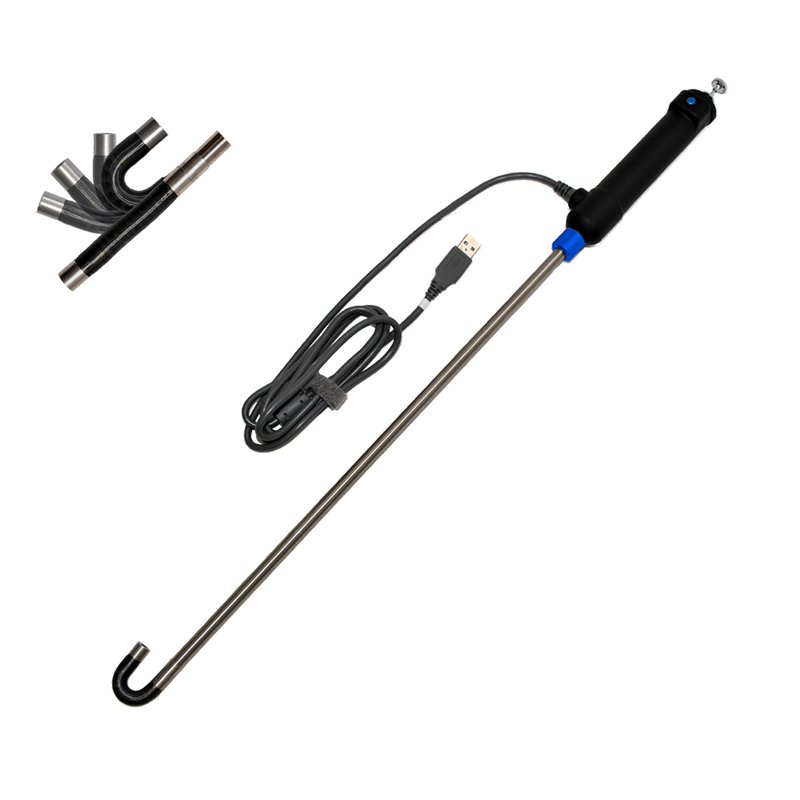

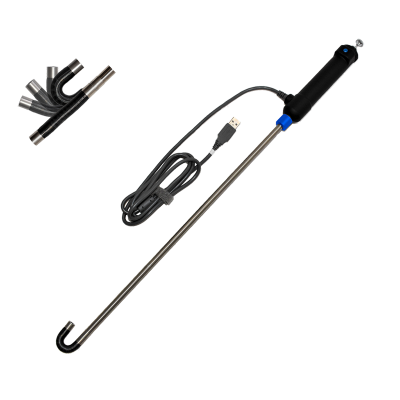

  • ​The angle of articulation is fully adjustable from a straight position to a full 180° bend, allowing for the examination of the interior of dark, enclosed spaces.

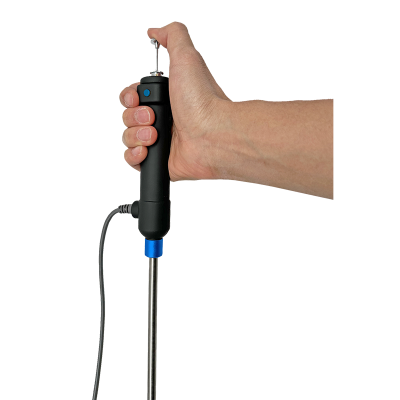

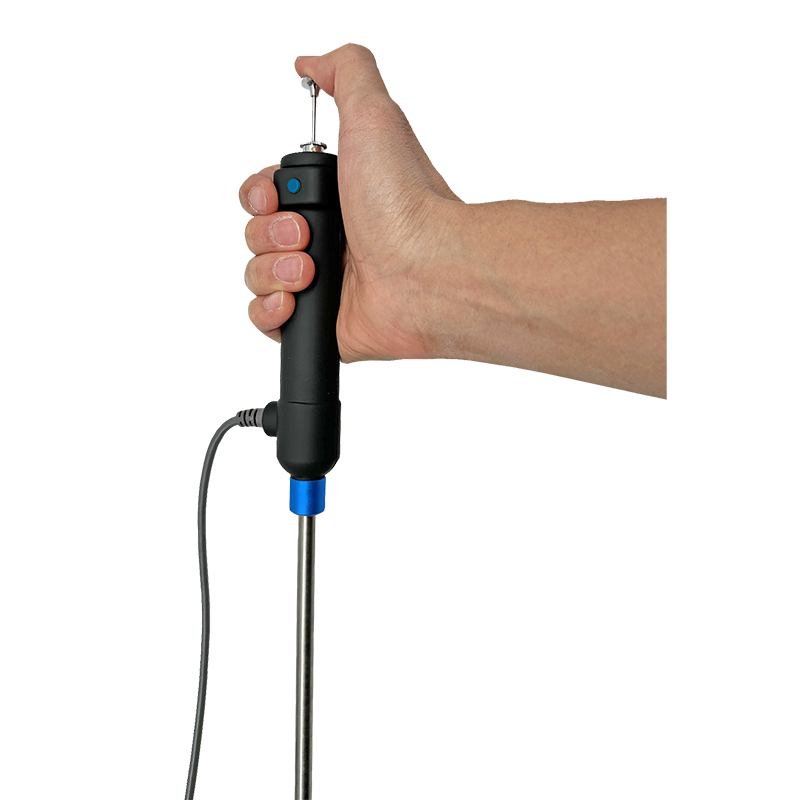

  • It's user-friendly and simple to adjust the angle; just press the release button with a thumb bend.
  • The device can bend tightly with a minimal radius of just 30mm.
  • Equipped with six built-in white LED lights for clear visibility.
  • Features a high-resolution image output thanks to its CMOS sensor.
  • Designed with a fixed focus that ranges from 0.5cm to 100cm, suitable for a wide range of distances.

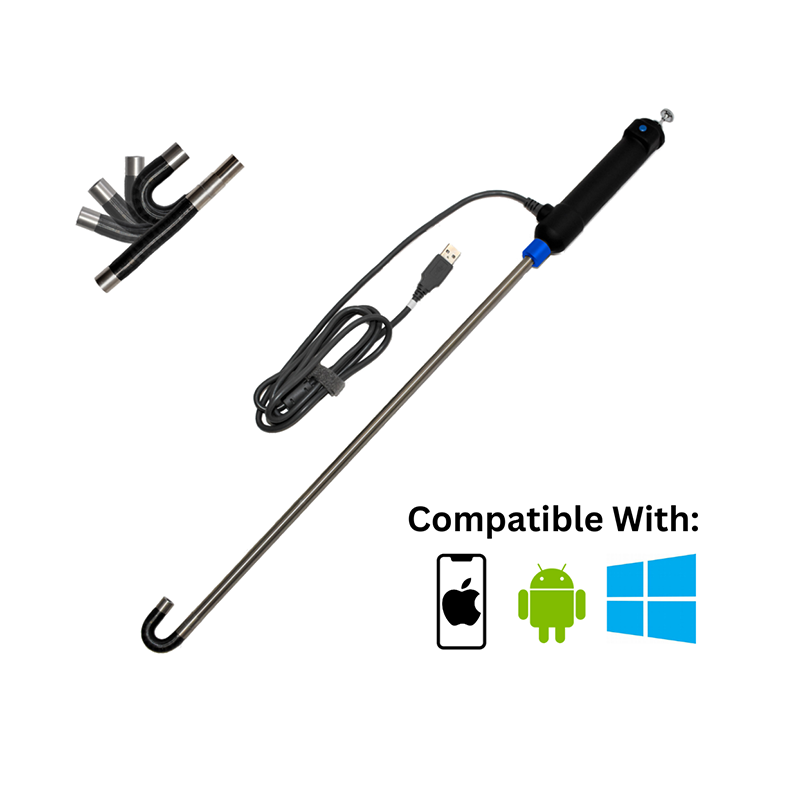

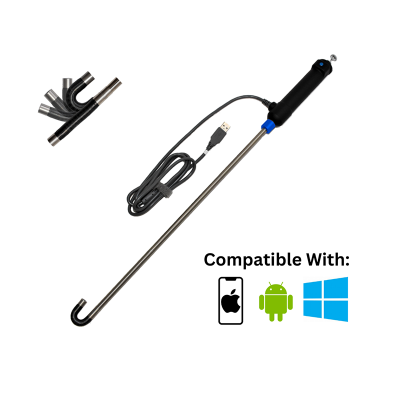

  • Powered through a USB connection, compatible with iPhones, iPads, Android devices, Windows PC.
  • * VA-400i is not compatible with MacBook computers, Chromebook and Linux systems due to lacking appropriate software. If you want to use a borescope with these systems, please choose the model, VA-400 v5.

Specifications

  • Sensor: High-quality CMOS sensor
  • Still Image Resolution: 1280x720 pixels, JPG format
  • Video Resolution: 1280x720 pixels, AVI format with a frame rate of 30FPS
  • Optical Lens View Angle: 120°
  • Focus Range: 20mm to infinity
  • Probe Diameter: 8.5mm

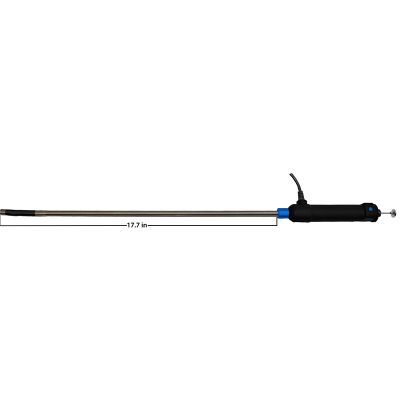

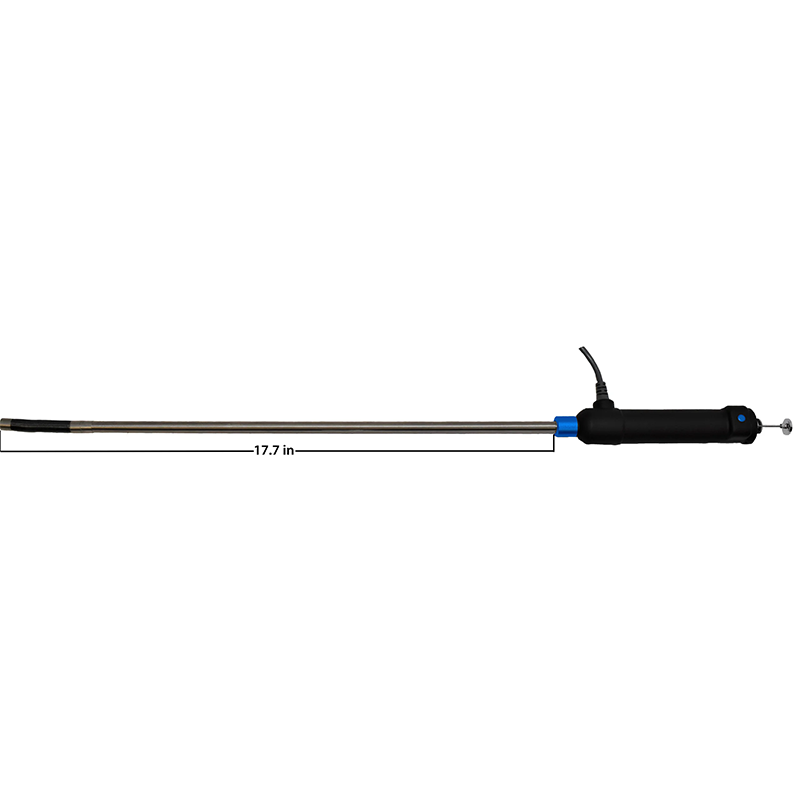

  • Probe Length: 42cm (16.5 inches)
  • PC Interface: USB 2.0
  • USB Cable Length: 200cm
  • USB Compatible Systems: Windows, iPhone/iPad, Android

In The Box

  • VA-400i borescope
  • USB adaptor for lighting
  • USB adaptor for USB-C
  • User Manual
  • ​Metal case

Videos

https://www.youtube.com/embed/mZRbEKXn2yQ?si=pm7sexpIYfopLXQs
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Great product! Since one always has a cell phone within reach it’s super easy to save and distribute pictures of the borescope. Just install one app and it’s ready to go. No more fiddling around with an empty laptop, which requires a charger and always wants to drop. Very fairly priced.

Timm H Verified Purchase

Vividia Ablescope Va-400I Rigid One-Way Articulation Borescope For iPhone iPad Android Windows Pc
September 9, 2024

Timm H Verified Purchase

Vividia Ablescope Va-400I Rigid One-Way Articulation Borescope For iPhone iPad Android Windows Pc
September 9, 2024

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the connector on the Vividia VA-400i connect to an android tablet with the mini-usb connector?

This comes with a USB-C adapter.
