Aurora Bearing Ab-6 Left

$26.55/Each
Quantity
Add to Wishlist
Part# 04-00247
MFR Model# AB-6

Overview

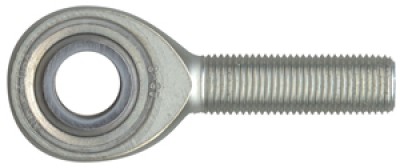

Aurora Bearing AB-6 Left

Specifications

  • Thread type: left hand
  • Thread configuration: male
  • B-Ball Bore [inch]: .3750
  • W Ball Width [inch]: .500
  • H-Head Width [inch]: .406
  • A-Base to Center [inch]: 1.938
  • D-Head Diameter [inch]: 1.000
  • Ball Diameter [inch]: .719
  • C-Thread Length [inch]: 1.250
  • Thread Size: 3/8-24
  • Thread Class: UNF-3A
  • a- Misalignment Angle Clevis Mounted [degrees]: 12
  • Ultimate Radial Static Load Capacity [lbs.]: 9,544
  • Approximate Brg. Weight [lbs.]: .112
  • Options: Stud
  • Lubrication Options: Zerk Fitting, Flush Fitting or Ptfe Liner
