Center Console Turbine 4 Lever Quadrant

$4378.00/Each
Quantity
Add to Wishlist
Part# 05-03363
MFR Model# 05-03363

Overview

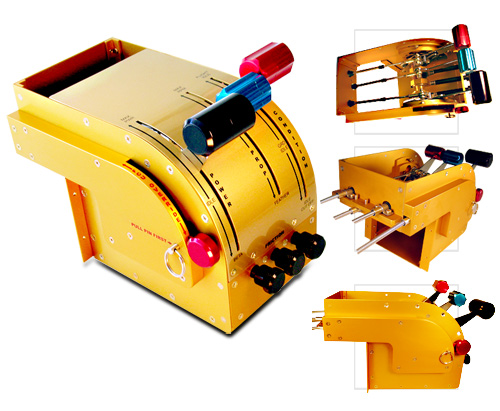

CENTER CONSOLE TURBINE
4 LEVER QUADRANT

Three main levers are chromed with anodized black “Throttle” knob, blue “Prop” knob and red “Fuel” knob. Also, equipped with red “Emergency FCU” override knob with “Safety pin”. Throttle and Fuel levers are designed with Beta stop. These 2 levers pull out and down for fuel idle and fuel cut off. Both of these levers are designed with Beta adjustable CAM Follower bearing movements. Stroke for Throttle, Prop and Fuel is 3-3/8” with 10-32 Rod Ends, Stroke for Emergency FCU override is 2-5/8”, All 4 Levers are set up for A-950 push – pull control with 10-32 threads. Throttle, Prop, and Fuel have front facing independent friction locking knobs. Not FAA Approved and for Experimental Use Only.

Specifications:
Body size: 11-3/4” D, 7-1/2” H, 6-1/8” W.
Weight: 6.5 lbs.
One Engine application example: Pratt and Whitney PT-6 67A 1200 HP

Black Lever: Throttle
Blue Lever: Prop
Red Lever: Fuel
Red with locking pin: Emergency Fuel Cut Off
