ACS Free Flow One-Way Check Valve
MFR Model#
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

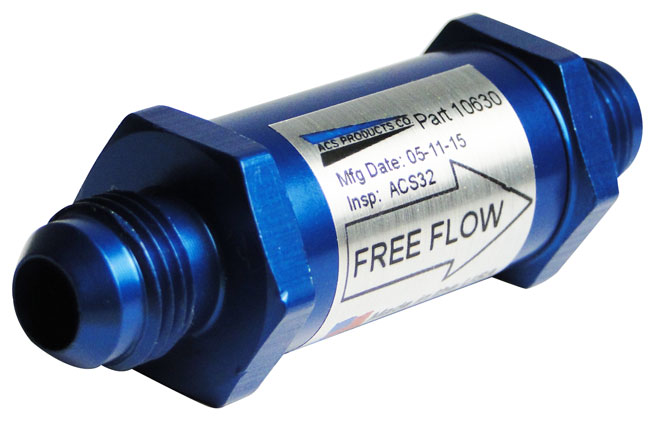

Prevents return fuel flow during normal operation but provides by-pass fuel feed in an emergency if the fuel pump fails. Wt. 1 oz., 2-7/8" long. Use with tube fittings for 3/8" dia. fuel line. Anodized for corrosion resistance. Made in USA |
Reviews
Simple, small, with two AN mail Fittings. Just what I needed for my fuel system.
Verified Purchase
One Way Check Valve 10630
Leaks when under pressure from the gravity feed of high wing. Requested replacement
Verified Purchase
One Way Check Valve 10630
Order received within 3 days and installed on the airplane on the same day. Exact product as ordered.
Verified Purchase
One Way Check Valve 10630
I replaced my old check valve same part number that was on my aircraft for 10 years, new one works as advertised.
Installed in a gravity feed system, in parallel with a Facet boost pump. This valve is indeed free flow (zero PSI breakout pressure) and as such works well in the gravity feed system, when the pump is turned off. The pump is only turned on for extreme nose up attitudes.
The item works great at sealing as a check valve. I had to open up and clean the seats from dust and once clean it worked great. I used it for vent and gas applications.
Not as represented, will not operate in light flow conditions
Verified Purchase
One Way Check Valve 10630
It leaked, did not work
Verified Purchase
One Way Check Valve 10630
Tried two of these. Both leaked and I ended up with fuel all over the floor of my hanger.
Failed, wasted $75 worth of fuel on the floor. Was in the upright position.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, it uses 3/8" tube fittings, which is a -6 AN flare.
Per ACS Products, it is a gravity flow piston. It only allows fuel flow in one direction.
Yes. This is for a free floating application, but can be mounted in any position.
0 PSI for breakout; 20 PSI max.
0 PSI for breakout; 20 PSI max. Seal are made of viton rubber.
The piston is made of Delrin and there is no rating for ethanol.
No, this product does not have a bleed function.
We do not have any reports of failure to flow in the proper direction. There is only a plastic piston on the inside and even if it is put in wrong, it will still flow just not stop.
The dimensions are 2-7/8 long. This is not available in any other sizes or modifications.
No, the 10630 is not FAA/PMA approved.
