- Photo may represent series and not specific product
- SHARE
(Hover to zoom | Use mouse wheel for +/-)

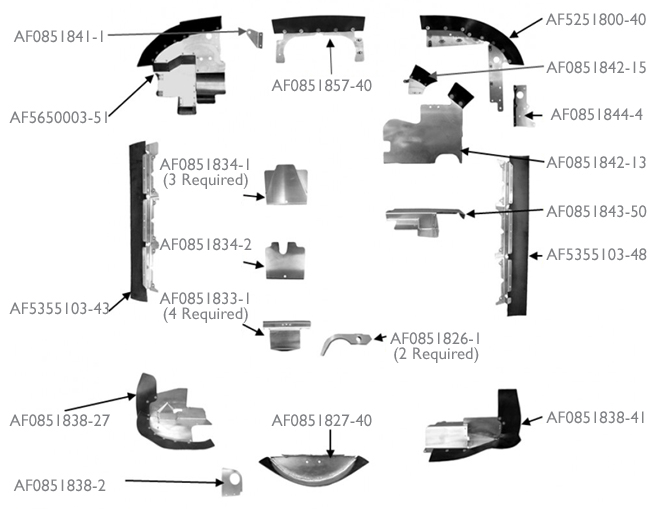

| Model No. | Description | Part Number | Price | Buy |
|---|---|---|---|---|
| AF0851827-40 | Baffle | 05-12666 | $366.00 | |
| AF0851833-1 | Baffle | 05-12667 | $122.75 | |
| AF0851838-27 | Baffle | 05-12671 | $450.00 | |
| AF0851838-41 | Baffle | 05-12672 | $366.00 | |
| AF0851842-13 | Baffle | 05-12674 | $267.95 | |
| AF0851842-15 | Baffle | 05-12675 | $146.75 | |
| AF0851843-50 | Baffle | 05-12676 | $328.00 | |
| AF0851857-40 | Baffle | 05-12678 | $159.75 | |
| AF5251800-40 | Baffle | 05-12680 | $291.95 | |
| AF5355103-43 | Baffle | 05-12681 | $316.00 | |
| AF5355103-48 | Baffle | 05-12682 | $316.00 | |
| AF5650003-51 | Baffle | 05-12683 | $450.00 | |
| AF0851834-1 | Plate | 05-12668 | $62.75 | |
| AF0851834-2 | Plate | 05-12669 | $62.75 | |
| AF0851826-1 | Bracket | 05-12665 | $185.75 | |
| AF0851838-2 | Bracket | 05-12670 | $49.50 | |
| AF0851841-1 | Bracket | 05-12673 | $62.75 | |
| AF0851844-4 | Bracket | 05-12677 | $97.80 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install. Baffles are made of 6061-T6 aluminum with many improvements over the original baffling. Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling. All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable. The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge. We also sell seal kits if your metal baffle pieces are in good shape. Note: If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc. Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips). |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
