- Photo may represent series and not specific product
- SHARE
| Description | ID | OD | Max PSI | Wgt/Ft | Part No. | Price | Buy |
|---|---|---|---|---|---|---|---|
| Aeroquip 666 Hose | .188 | .312 | 1500 | .08 | 666-4 | $32.50 | |
| Aeroquip 666 Hose | .250 | .375 | 1500 | .09 | 666-5 | $38.55 | |
| Aeroquip 666 Hose | .313 | .466 | 1500 | .11 | 666-6 | $46.70 | |
| Aeroquip 666 Hose | .406 | .562 | 1500 | .14 | 666-8 | $59.75 | |
| Aeroquip 666 Hose | .500 | .656 | 1500 | .19 | 666-10 | $73.95 | |
| Aeroquip 666 Hose | .625 | .789 | 1000 | .24 | 666-12 | $86.75 |
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
Overview

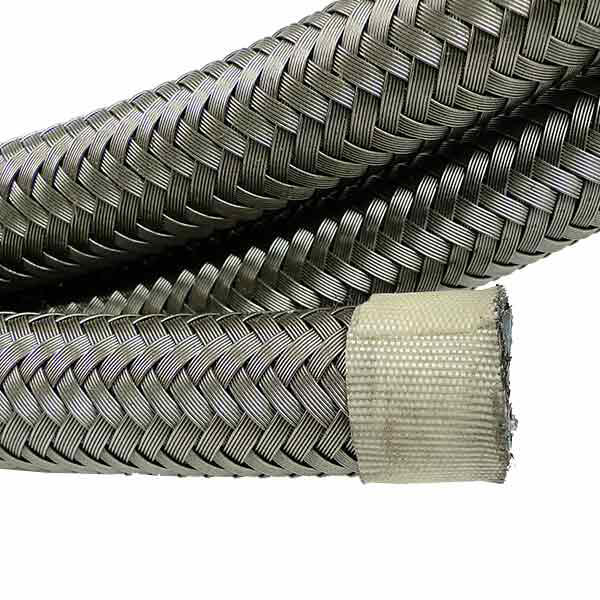

| Aeroquip 666 medium pressure Teflon™ hose is widely used in aircraft applications handling fuel, oils, and other fluids. It is unaffected by all fuels, oils, alcohols, coolants, or solvents commonly use in aircraft. Construction of Aeroquip 666 hose is of spiral extruded Teflon™ resin for the inner tube with a reinforcement and outer cover of Type 300 Series stainless steel wire braid. The result is a lightweight hose able to withstand prolonged flexing and vibration under all service conditions. Aeroquip 666 hose is also use in hydraulic and pneumatic applications at pressures up to 1500 psi. Operating temperature is -65° to 450°F. Sold by the foot. |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We have both re-useable and crimp on fittings available. Please see the Accessories tab on the web page to see and order the available fittings.
Yes, this hose can be used in certified aircraft.
Yes, AE466 brown integral hose complies with TSO-C53a type D. The type D is Teflon® with firesleeve and brown falls under that.
No, the stainless wrap on the outside will not allow it to compress.
Bulk teflon hose does not have a shelf life. Per Eaton, we still recommend customers replace Teflon hose-assy every 8-10 years like all other hoses.
The F66000 fittings can be threaded on.
