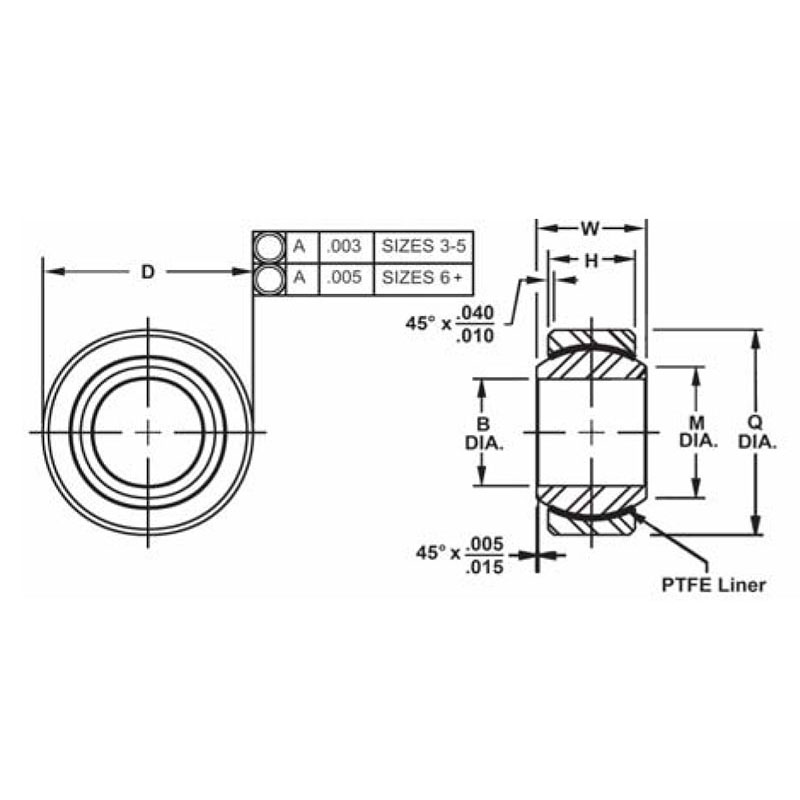

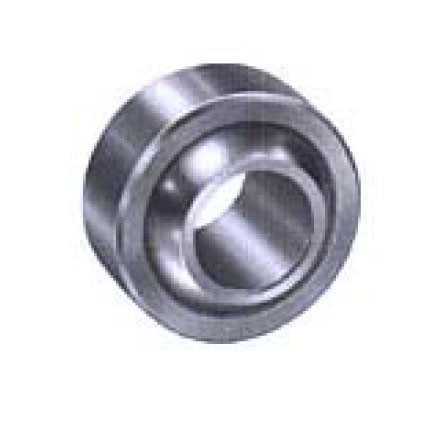

Bearing - Inner Diameter: 1/4" Outer Diameter: 21/32", Plain, Self-Lubricating, Self-Aligning, Low Speed, Narrow, Chamfered Outer Ring, -65°, F To 325°, F. |
Detail | Characteristic |
---|---|
BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
HARDNESS RATING | 55.0 ROCKWELL C MINIMUM INNER MEMBER AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER |
HARDNESS RATING | 23.0 ROCKWELL C MINIMUM OUTER RACE MEMBER AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |
INNER MEMBER WIDTH | 0.3410 INCHES MINIMUM AND 0.3430 INCHES MAXIMUM |
OUTER MEMBER OUTSIDE DIAMETER | 0.6557 INCHES MINIMUM AND 0.6562 INCHES MAXIMUM |
OUTER MEMBER WIDTH | 0.2450 INCHES MINIMUM AND 0.2550 INCHES MAXIMUM |
MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
MATERIAL | STEEL COMP 440C INNER MEMBER |
MATERIAL | STEEL COMP 630 OUTER RACE MEMBER |
STATIC RADIAL LOAD RATING | 6040 POUNDS |
STYLE DESIGNATOR | WITH INSERT AND/OR LINER |
