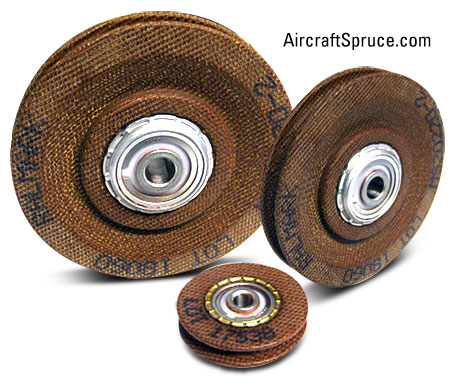

- Photo may represent series and not specific product
- SHARE
| PN | Cable | OD | Groove Dia |
Hub Dia |
Bore Dia |
Width | Load Limit |
Price | Buy |
|---|---|---|---|---|---|---|---|---|---|
MS24566-1B | 1/16,5/64,3/32 | 1.250 | .972 | .625 | .1900 | .297 | 300 | $55.75 | |
MS24566-2B | 1/16,5/64,3/32 | 2.500 | 2.222 | .777 | .1900 | .297 | 500 | $73.75 | |
MS24566-3B | 1/8,5/32,3/16 | 2.000 | 1.510 | .901 | .2500 | .484 | 600 | $56.75 | |
MS24566-4B | 1/8,5/32,3/16 | 3.500 | 3.010 | .901 | .2500 | .484 | 1200 | $66.75 | |
| MS20219- 1 | 1/16,3/32 | 1.312 | 1.000 | .423 | .2500 | .438 | 480 | $67.75 | |
| MS20219- 2 | 1/16,3/32 | 1.750 | 1.438 | .423 | .2500 | .438 | 480 | $59.80 | |
| MS20219- 3 | 1/16,3/32 | 1.750 | 1.438 | .769 | .6250 | .438 | 480 | $114.75 | |
| MS20219- 4 | 1/16,3/32 | 2.625 | 2.312 | .423 | .2500 | .438 | 920 | $66.75 | |
| MS20220- 1 | 1/8,5/32,3/16 | 1.755 | 1.255 | .475 | .3125 | .625 | 500 | $60.75 | |
| MS20220- 2 | 1/8,5/32,3/16 | 3.005 | 2.505 | .475 | .3125 | .625 | 1680 | $74.99 | |
| MS20220- 3 | 1/8,5/32,3/16 | 4.255 | 3.755 | .475 | .3125 | .625 | 2500 | $88.75 | |
| MS20220- 4 | 1/8,5/32,3/16 | 5.505 | 5.005 | .475 | .3125 | .625 | 2500 | $120.75 | |
| A-223 | 1/16,3/32,1/8 | 1.000 | .688 | -- | .2500 | .281 | -- | $17.50 | |
| A-224 | 1/16,3/32,1/8 | 1.750 | 1.375 | -- | .2500 | .250 | -- | $20.99 | |
| NAS383-1 | 1/16,3/32,1/8 | 1.250 | .875 | -- | .2500 | .265 | -- | $16.50 | |
| A-123 | 1/16,3/32 | 2.000 | 1.500 | -- | .2500 | .265 | -- | $23.65 | |
| NAS383-2 | 3/32 | 2.500 | 2.000 | -- | 0.255 | .270 | -- | $23.50 | |
| NAS383-3 | 1/8,5/32 | 2.000 | 1.375 | -- | .3750 | .438 | -- | $20.50 | |
| A-120 | 5/32,3/16 | 3.000 | 2.375 | -- | .3750 | .438 | -- | $27.95 | |
| BB-120 | 3/16 | 3.000 | 2.375 | -- | .2500 | .484 | $82.75 | ||
| BB-128 | 3/16 | 2.500 | 1.875 | -- | .2500 | .440 | -- | $78.75 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
N210A & AN210B (MS24566) Anti-Friction Bearing Control Pulley with phenolic body and ball bearing with seal. The AN210A pulleys are dimensionally the same as the B pulleys but have metal-shielded bearings rather than removable composition-seal type bearings. The low allowable design load of the -3A and -3B pulleys-is based on cable fatigue. AN210-1A, AN210-3A, AN210-1B and AN210-3B shall not be installed on frequently used aircraft controls to bend the cable more than 15 degrees from a straight line.
MS20220 (AN220) Flight Control Pulley with phenolic body and ball bearing with seal. Also available with aluminum body (MS20220A). The low allowable load limit of the -1 pulley is based on cable fatigue. When used on frequently used aircraft controls the cable wrap angle should not be more than 15 degrees from a straight line. MS20219 (AN219) Aircraft Secondary Control Pulley with phenolic body and ball bearing with seal. MS20219A (AN219A) Pulley with anodized aluminum body and ball bearing with seal. The aluminum body is recommended for -1 and -3 pulleys. The -1 pulley shall not be installed in flight control systems. NAS383 Series Pulley with phenolic body and graphite impregnated bronze sleeve. This is a low cost pulley widely used in aircraft, winches, cranes and remote mechanical actuation devices. A-223 and A-224 Pulleys with plain phenolic bore are used as guide and secondary control pulleys in production aircraft. BB-128-1 and BB-120-1 Pulleys have high pressure phenolic bodies and ball bearings with Teflon™ seals. Used in Christavia and many other aircraft. |
Reviews
Just what I needed to divert the rudder cables on my Zenith Cruzer.
Verified Purchase
Pulley NAS383-1
Perfect fit!
Verified Purchase
Pulleys MS20219-4
As advertised
Verified Purchase
MS24566-1B Phenolic Pulley
As advertised
Verified Purchase
MS24566-4B Phenolic Pulley
As advertised
Verified Purchase
MS24566-4B Phenolic Pulley
Timely and correct as usual
Verified Purchase
Pulleys MS20220-2
Verified Purchase
Pulleys MS20220-2
Came quickly when back in stock.
Verified Purchase
Pulleys MS20220-2
5 stars! Mandella flat bottom v-drive boats use a fiber wheel that I ordered from you for their stainless cable steering. Fast ship and perfect fit. great company experience. thanks, ~jim
Verified Purchase
MS24566-4B Phenolic Pulley
Worked as it should
Verified Purchase
Pulley Bb-128
