Heim Hmx Series Male Threaded

From $93.75 to $1328.00
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

PN Price Buy
HMX-5G
$93.75
Quantity
HMX-6G
$108.75
Quantity
HMX-7G
$327.00
Quantity
HMXL-7G
$1328.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

HMX EXTRA CAPACITY SERIES
  • Outer Member: 4130 or 4340 Alloy steel, heat treated, magnetic particle inspected, with protective coating for corrosion resistance.
  • Ball: SAE 52100 Steel, Heat Treated, Chrome Plated.
  • Inserts: Copper Alloy
Attention: Subject to price & availability of Heim brand bearings, equivalent bearings may be furnished.

Specifications

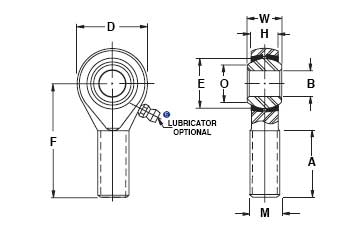

PN B W H D F A M E O Max Weight
HMX-5G .3125 .437 .344 .875 1.875 1.250 .3750-24 .625 .447 4920 .09
HMX-6G .3750 .500 .406 1.000 1.938 1.250 .4375-20 .718 .516 7240 .13
HMX-7G .4375 .562 .437 1.125 2.125 1.375 .5000-20 .812 .586 7620 .18
HMXL-7G .4375 .562 .437 1.125 2.125 1.375 .5000-20 .812 .586 7620 .18
