Koolmat Insulation Heat Barrier

$71.75/Foot
Quantity
Add to Wishlist
Part# 09-24730
MFR Model# 07000-30

Overview

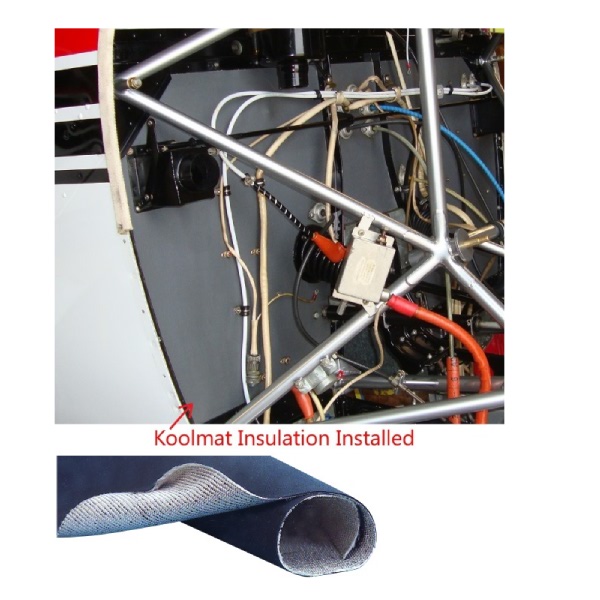

Koolmat Insulation is a .070 thick fiberglass textile cured to a 1/8" silicone substrate. The latter providing a good wear resistant surface. Used by NASCAR, Winston Cup race teams as a firewall/floor safety and comfort heat barrier for drivers and has applications in the home-built aircraft field. It can be used on steel, aluminum, fiberglass, wood and plastic surfaces.
    Wt: .72 lbs. per sq. ft. Sold in 30" width by the lineal ft.

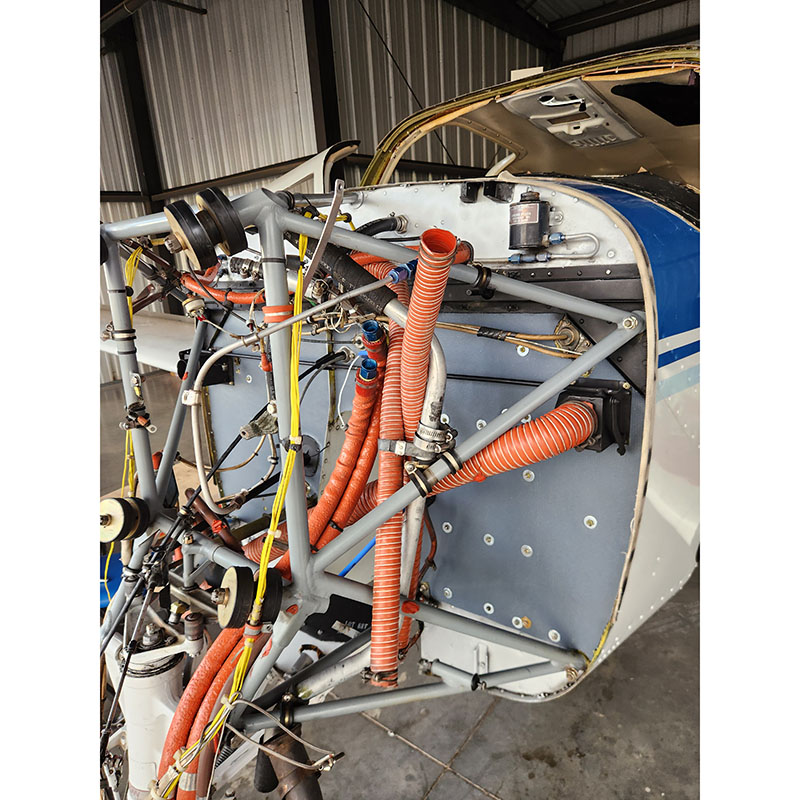

    Can be used to insulate cowl and firewall forward area. (Not used on exhaust)
    Temperatures up to 1000 F and reduces cockpit heat up to 75%. Contains no asbestos

Reviews

Easy to work with and glued really well using 3Ms 1300L to a cleaned firewall.

Kelly B Verified Purchase

Gray Heat Barrier Firewall

April 8, 2023

Has not arrived yet

Andrew K Verified Purchase

Gray Heat Barrier Firewall

January 26, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How is this Koolmat Insulation attached? Does it have an adhesive back or does it require some special glue?

This material is not adhesive backed. It does not have a special adhesive for attaching it but a common adhesive used is our part number 05-00949.

Q: What color is the front of the Koolmat Insulation Heat Barrier? Does it come in other colors?

The color in the front would be gray. This can be special ordered in beige but the minimum purchase qty would be 150ft.

Q: Assuming this Koolmat insulation material will not absorb oil (as in use in the bottom cowling), how will it fit curved surfaces-is it stretchable?

It will not stretch well around complex curves or shapes.

Q: Is this to be used in front of the firewall (between firewall and engine) or on the cabin side of the firewall?

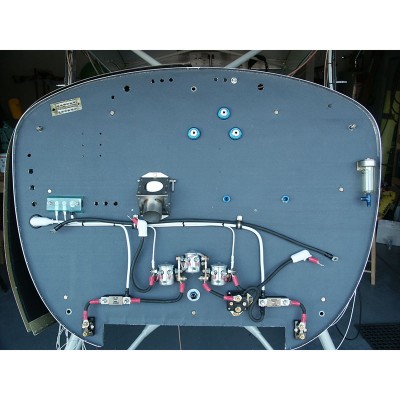

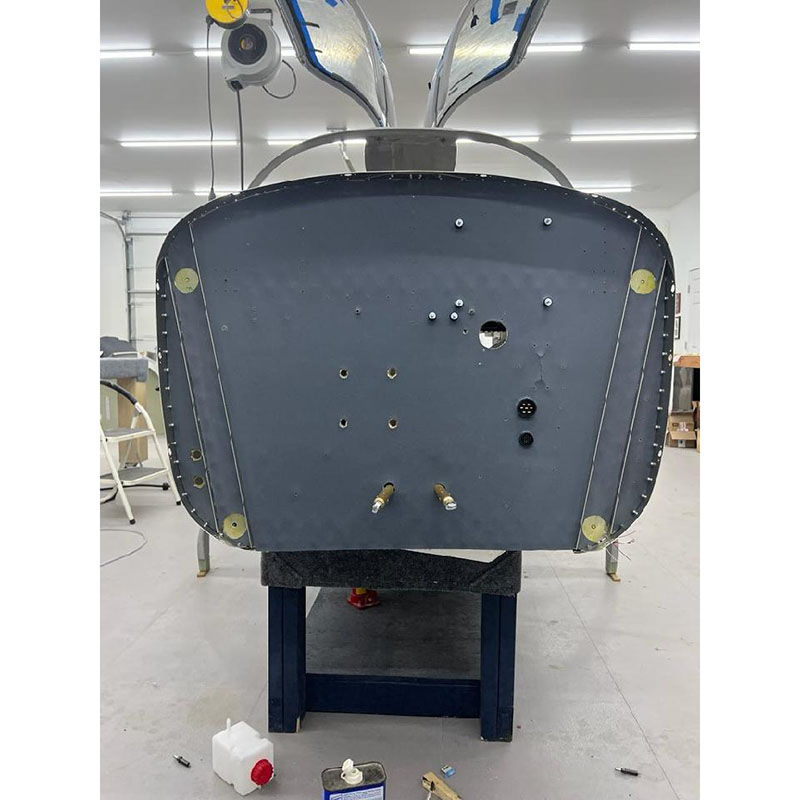

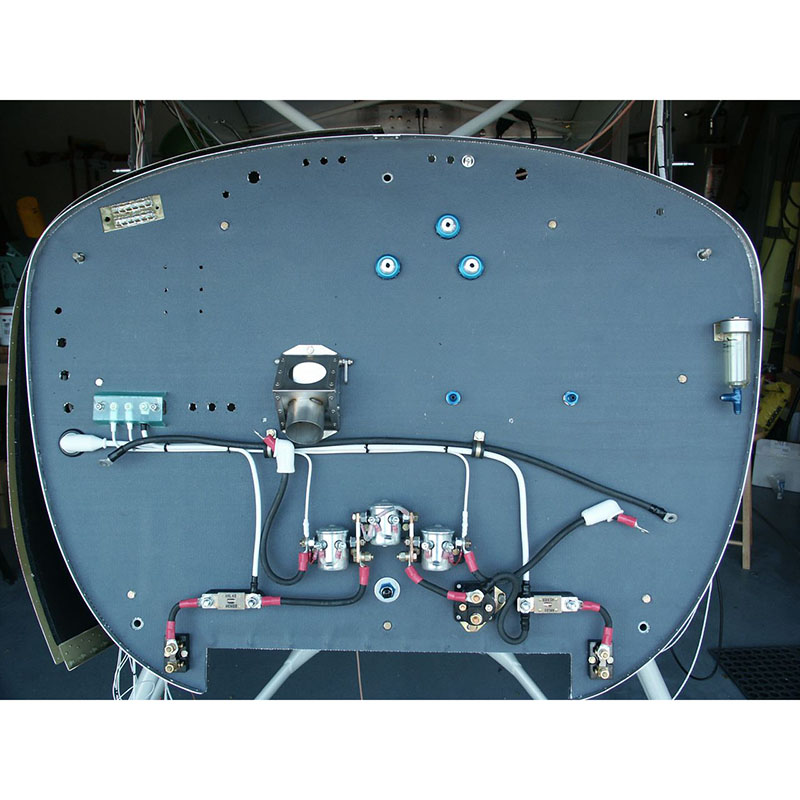

Most customers use the Koolmat material on the firewall engine side with the gray side facing the engine because it won't absorb any liquids. It can be used on the inside to keep heat out of the cockpit area also.

Q: Is this Koolmat insulation FAA approved?

No, there is no FAA Approval tied to this product.

Q: Can this product be sewn as a layer in a firewall blanket? I read it is effective with heat. How about noise?

The material is flexible, so if you can sew thru the silicone and fiberglass, it should work for you. We do not have any documents of its soundproofing capabilities, so we can not say how much sound damping it would provide.
