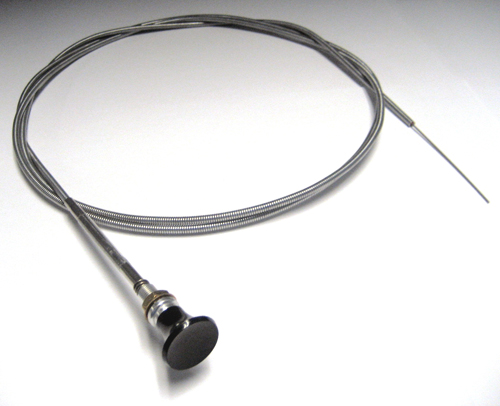

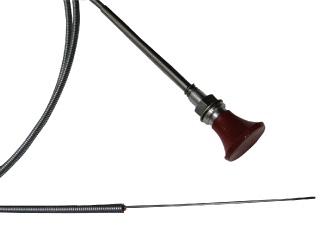

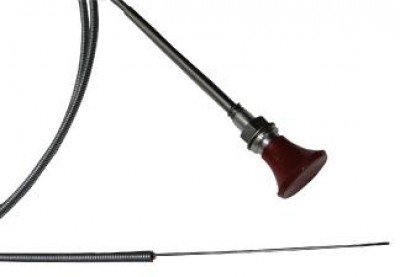

A-740 Ratchet Control
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
(Solid Wire End) Ratchet design provides detented positions under vibration conditions. Simple push-pull operation. Has .050" dia. stainless steel wire Core in flexible metal casing with polyethylene liner. Max temp rating 200-250 degrees.
May be shortened as required. Max. travel 3-1/2". Available with black or red plastic knob. Made in USA |
Reviews
Good quality control cable, positive ratching lock holds my ALT AIR control closed
Verified Purchase
A-740 Control 72 Black Knob
Functions as expected. Note - This replaced an identical item that failed after being cleaned with brake cleaner, which dissolved the polymer inner linin of the cable.
Verified Purchase
A-740 Control 72 Black Knob
Prompt delivery Exactly as ordered
Verified Purchase
A-740 Control 48 Red Knob
This cable fixed my creeping carb heat issue, easy to trim to length and install!
Verified Purchase
A-740 Control 72 Black Knob
Excellent for a super cub as they have limited room on panel for vernier style. Good detentes for accurate leaning
Verified Purchase
A-740 Control 72 Red Knob
Fits as required
Verified Purchase
A-740 Control 72 Red Knob
Sending parts to Europe from the US is faster than ordering the same part from your European subsidiary! Fast shipping of a great product! Thanks a lot.
Verified Purchase
A-740 Control 72 Red Knob
Really like these control cables. They move freely but they also dont creep in flight. Win win. Used in every Super Cub I have rebuilt with no complaints.
Verified Purchase
A-740 Control 84 Red Knob
Verified Purchase
A-740 Control 72 Red Knob
Verified Purchase
A-740 Control 72 Black Knob
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is not a locking cable. The shaft has internal notches, and as the knob is pushed in or pulled out you feel the ratchet effect which holds the cable in position.
The inner cable is .050" diameter, and the outer housing is 3/16" O.D.. The mounting hole is 3/8".
Per Vendor, First you would have to check if the spring is still in its slot. If it is, then you would have to take the total control out.
The knobs can be removed if the cable is ordered that way, otherwise it is loctited on. The OD is 1 and the threads are 10-32. Please contact our sales department for price and lead time of special order controls.
The maximum extension is 3-3/8" and the diameter is 3/16.
No. The only FAA PMA Approved ACS controls are the A-790-12 and the A-800-12.
No, the detent pressure cannot be adjusted.
