Home / Airframe Parts / Fiberglass Components /K2U Fiberglass Dorsal Fin - Aft Piper PA-28 / PA-32
Main Image

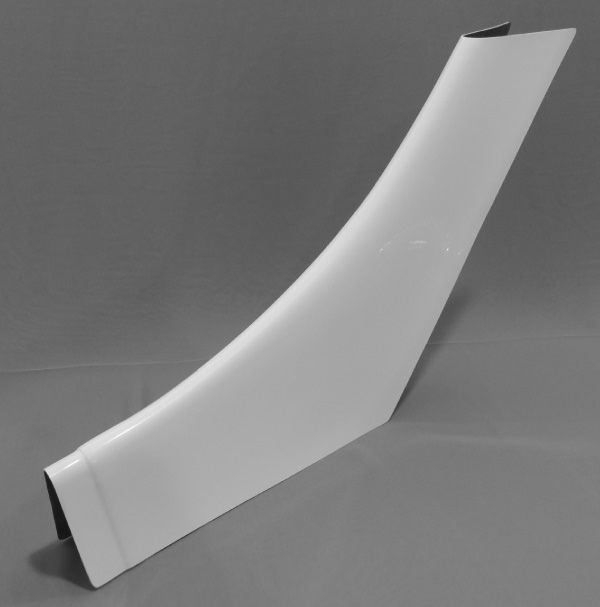

K2U Fiberglass Dorsal Fin - Aft Piper PA-28 / PA-32

0 Reviews 1 Answered Question
$437.00/Each
Quantity
Add to Wishlist
Part# 05-02602
MFR Model# RD-0095-00

Overview

Approval Basis:

FAA-PMA Approved

Replaces:

Piper Part 99519-00, 99519-000, 99519-02, 99519-002. 99519-04, 99519-004, 99519-07, 99519-007, 99519-008.

Aircraft Eligibility:

Piper PA-28-140 S/N 28-7225001 and up, PA-28-180 S/N 28-7205001 and up, 28-235 S/N 28-721001 and up, PA-28R-200 S/N 28R-7235001 and up. PA-28-151, PA-28-161,PA-28-181, PA-28-236, PA-28-201T, PA-28R-201, PA-28R-201T, PA-32-260 S/N 32-720061and up, PA-32-300 S/N 32-7240001 and up, PA-32R-300, PA-32R-300T, PA-32-301FT, PA-32-301XTC, PA-32R-301(SP), PA-32R-30 I (HP), PA-32R-301T, PA-32-301, PA-32-301T.

Finish:

White gel coat, ready for paint.

Specifications:

Fiberglass laminate.

Notes:

This part will typically match the piper forward dorsal very well.  To be assured of a perfect fit buying the forward and aft fairings as a set is recommended

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these parts PMA approved?

Yes, these are FAA PMA and STC Approved. Certification paperwork is included with the product.
