- Photo may represent series and not specific product
- SHARE
| Type | Part Number | O.D. (In.) |
Wall (In.) | Burst Pressure (PSI) |
Min. Bend Radius |
Wt. (Lb./Ft.) |
Price per Ft. |
Buy |
|---|---|---|---|---|---|---|---|---|
| N Tubing - Natural | 05-01009 | 1/8 | .023 | 960 | 3/8 | .004 | $0.89 | |
| N Tubing - Natural | 05-01010 | 3/16 | .025 | 960 | 1/2 | .006 | $1.24 | |
| N Tubing - Natural | 05-01011 | 1/4 | .035 | 960 | 1-1/4 | .015 | $2.22 | |
| N Tubing - Natural | 05-01012 | 3/8 | .050 | 960 | 2 | .032 | $4.35 | |

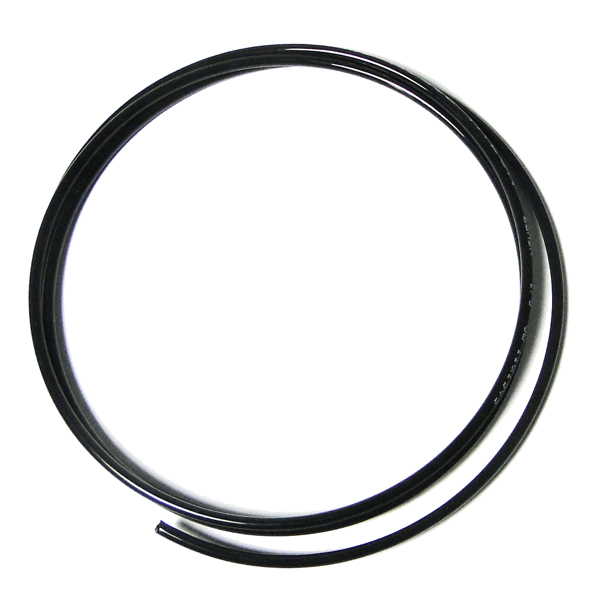

| NSR Tubing - Black | 05-01228 | 1/8 | .026 | 2120 | 5/16 | .004 | $1.00 | |
| NSR Tubing - Natural | 05-12487 | 1/8 | .026 | 2120 | 5/16 | .004 | $1.01 | |
| NSR Tubing - Black | 05-01231 | 3/8 | 0.075 | 2120 | 1 | .004 | $4.35 | |
| NSR Tubing - Black | 05-01230 | 3/16 | .039 | 2120 | 7/16 | .008 | $1.31 | |
| NSR Tubing - Natural | 05-12489 | 3/16 | .039 | 2120 | 7/16 | .008 | $2.15 | |
| NSR Tubing - Black | 05-01229 | 1/4 | .050 | 2120 | 9/16 | .015 | $4.35 | |
| NSR Tubing - Natural | 05-12488 | 1/4 | .050 | 2120 | 9/16 | .015 | $4.35 |
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
Overview
|

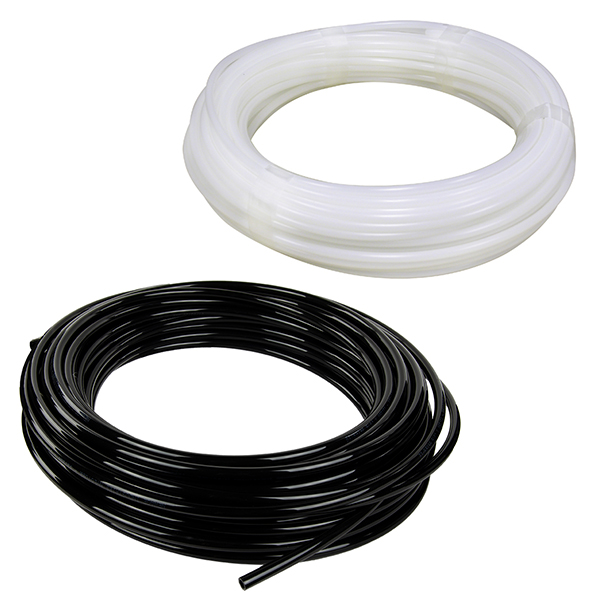

Nylo-Seal type "N": Semi-rigid natural color (N) tubing is made of Nylon-II and is far superior to other types of Nylon tubing. It does not depend on moisture for flexibility and does not become brittle. It has excellent resistance to flexural fatigue and can be used where there is vibration or tube movement. Self-extinguishing under A.S.T.M. Test D635-44. N Tubing is rated to 1000 lbs. and is excellent for instrument lines and other low pressure applications. Nylo-Seal type "NSR": Semi-rigid black (B) color or Natural (N) tubing is made of Nylon-II and is far superior to other types of Nylon tubing. It does not depend on moisture for flexibility and does not become brittle. It has excellent resistance to flexural fatigue and can be used where there is vibration or tube movement. NSR Tubing is rated to 2500 P.S.I. and is excellent hydraulic brake lines after verifying it is appropriate tubing for your application. Note: Brass Poly Flo fittings cannot be used with NSR tubing listed. Use SAE fittings, see Accessories tab. |
Reviews
For stock room
Verified Purchase
Nylon Tubing 33Nsr 3/16 Natural
Verified Purchase
Nylon Tubing 44N-N 1/4
Verified Purchase
Nylon Tubing 44N-N 1/4
an excelent transaction
Verified Purchase
Nylon Tubing 44N-N 1/4
Arrived as ordered
Verified Purchase
Nylon Tubing 33N-N 3/16
arrived as stated and perfect for the pitot/static very flexible
Verified Purchase
Nylon Tubing 44N-N 1/4
5
Verified Purchase
Nylon Tubing 44N-N 1/4
Good stuff. Much better than generic nylon tubing
Verified Purchase
Nylon Tubing 33Nsr 3/16 Black
Verified Purchase
Nylon Tubing 33Nsr 3/16 Natural
👍
Verified Purchase
Nylon Tubing 33Nsr 3/16 Black
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These units do not have any FAA/PMA. Experimental aircraft only.
Per the supplier: The working temperature is: -60 degrees to 200 degrees.
Fahrenheit.
Per the Nylo-seal catalog, it can be used with hydrocarbon fuels.
