- Photo may represent series and not specific product
- SHARE

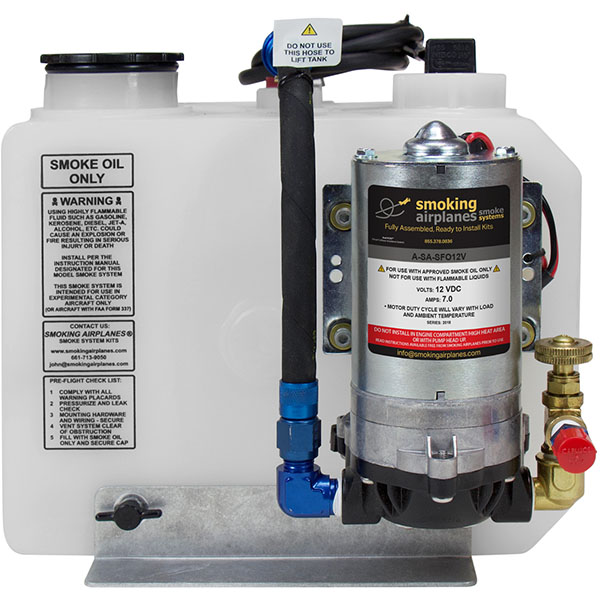

Smoking Airplanes Smoke System 3.5 Gallon
Select Model:
3.5V (Vertical)3.5H (Horizontal)Overview
| Smoking Airplanes 3.5 gallon smoke system, |
Features
- Rated for 18g
- 12v or 24v power ok
- Suitable for all aircraft
- Pump flow: 1.8 +/- GPM
- Spray rate: 0.8 +/- GPM
- Adjustable with incl valve
- Tank capacity: 3.5 gallons
- Total run time: 5+/- minutes
- Typical installation time: 1 day
- Ready for External Fill Kit option
- Engineered for continuous inverted flight
- Strong monolithic tank construction (no seams)
- See successfully earned FAA Field approvals
- Oil level quickly & easily determined (tank is transparent)
- Tank easily removed and re-connected (when space is needed)
Specifications
- DIMENSIONS:
- Pump height: 4"
- Horizontal tank without pump: 11″ x 10.75″ x 10.5″ (LxWxH)
- Vertical Tank: 10.75" x 8.5" x 12.5" (LxWxH)
- WEIGHT:
- Smoke System (full): 50 lbs
- Smoke System (empty): 20.5 lbs
Documents
In The Box
- Oil filter
- Electronics
- Check valve
- Suction hose
- Piston injector (1)
- Pressure hose (10')
- Stainless steel hose (3')
- 12v pump (& 24v to 12v converter)
- Visual step by step instructions link
- Note: Fasteners for attaching brackets to aircraft not included
- Note: Fasteners for attaching brackets to aircraft not included
