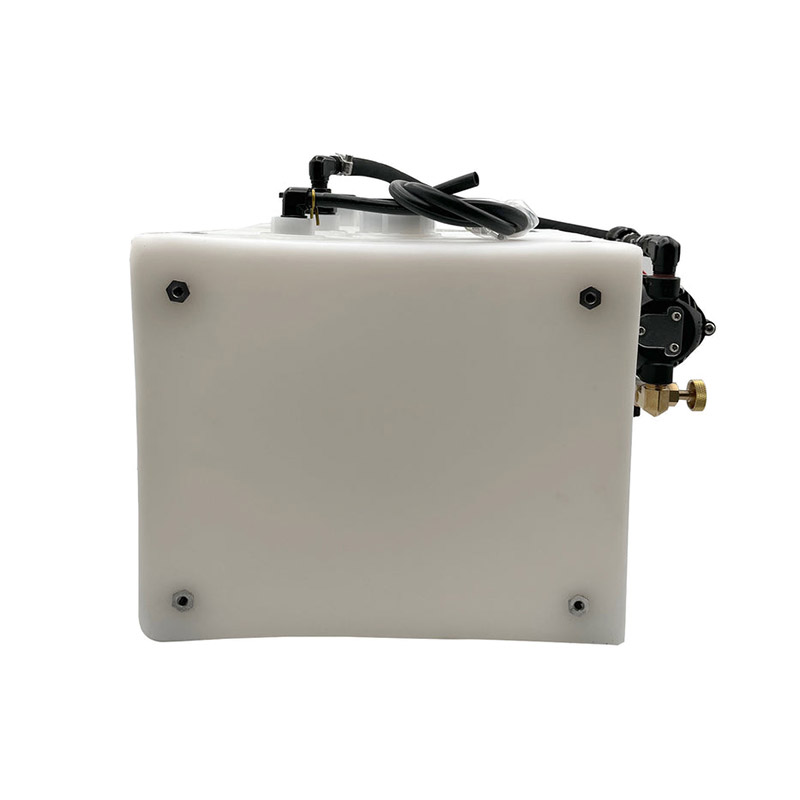

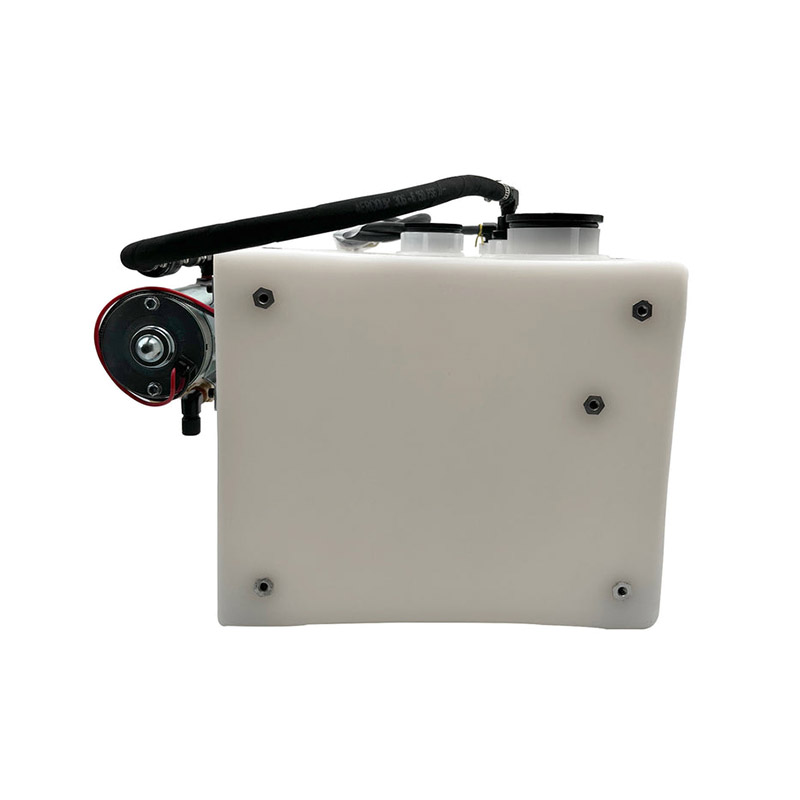

Sa-201 Smoke System 5.5 Gallon

$2495.00/Each
Quantity
Add to Wishlist
Part# 05-02891
MFR Model# 5.5H

Overview

SA-201:
  • For continuous inverted flight
  • Any dimension top.

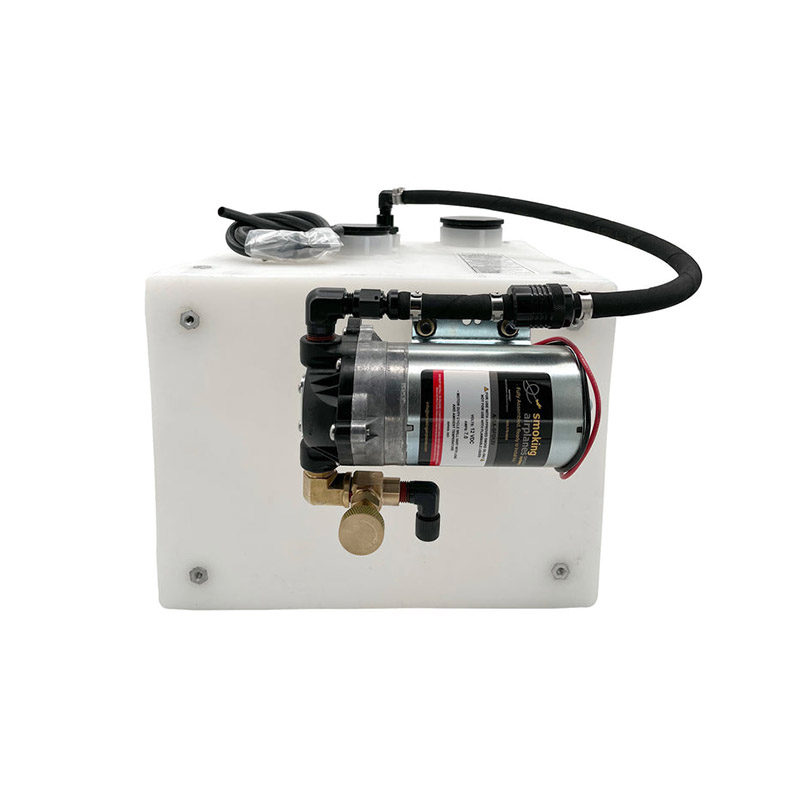

  • Pump mounted on top or any side.

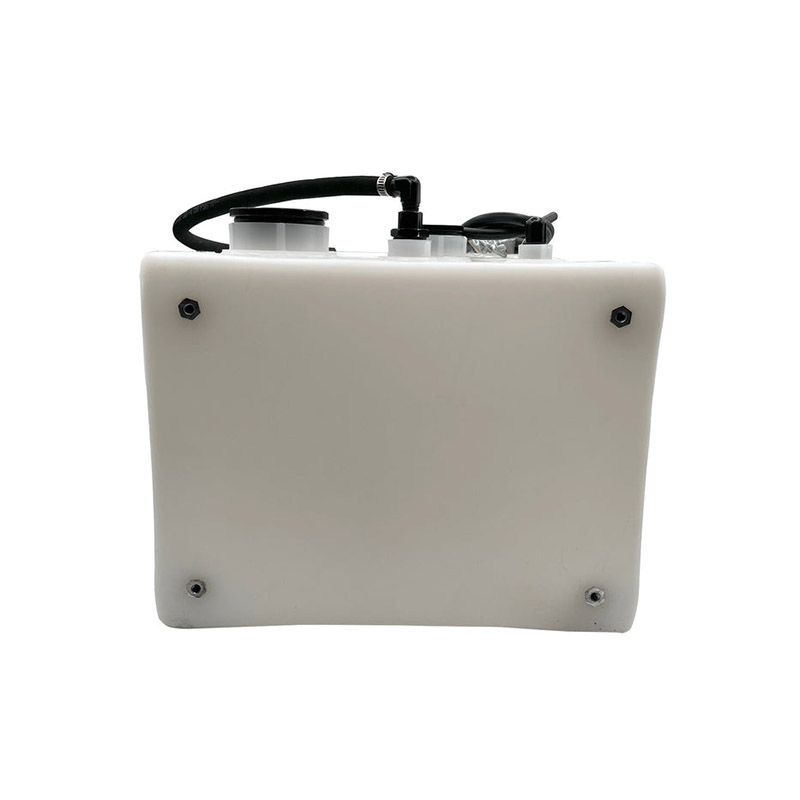

  • Fill cap and other fittings installed where you want them.
  • All hardware for complete installation.
  • Height (to top of fill cap) is 14"
  • Width (end where oil pump is mounted) is 10"
  • Depth (pump to opposite end of tank) is 17.25
  • Oil tank capacity: 5.5 US Gallons
  • Approx. oil used per minute: .8 US Gallons
  • Approx. total run time: 7+ Minutes

    P/N 05-02891 or 05-07189 for Horizontal-Low Profile

Specifications

5.5 GALLON SMOKE SYSTEM CAPACITY AND RUN TIME

OIL TANK CAPACITY

SA-200 SERIES KITS

APPROXIMATE GALLONS OF OIL USED PER MINUTE

APPROXIMATE TOTAL RUN TIME AT BEST OIL MIXTURE VALVE SETTING

5.5 US GALLONS
.8
7+ MINUTES


5.5 GALLON SMOKE SYSTEM WRIGHT AND BALANCE

OIL TANK EMPTY

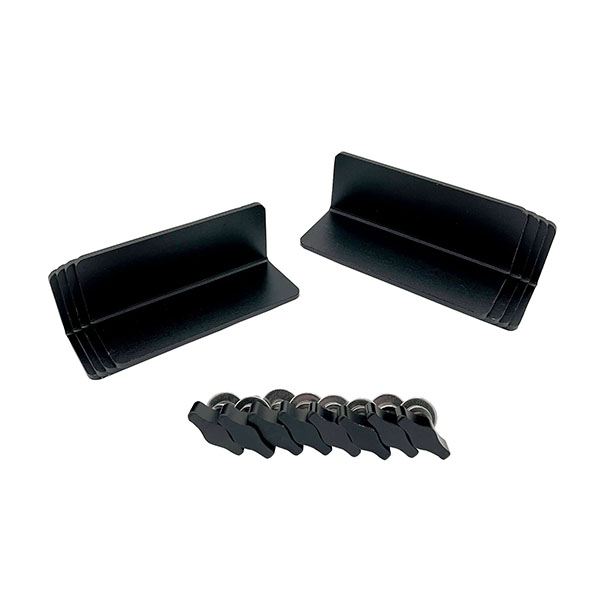

Includes mounting brackets and hardware,

oil pump w/bracket, flop tube, vent system, oil mixture valve, etc.

OIL TANK FULL

Includes mounting brackets and hardware,

oil pump w/bracket, flop tube, vent system, oil mixture valve, etc.

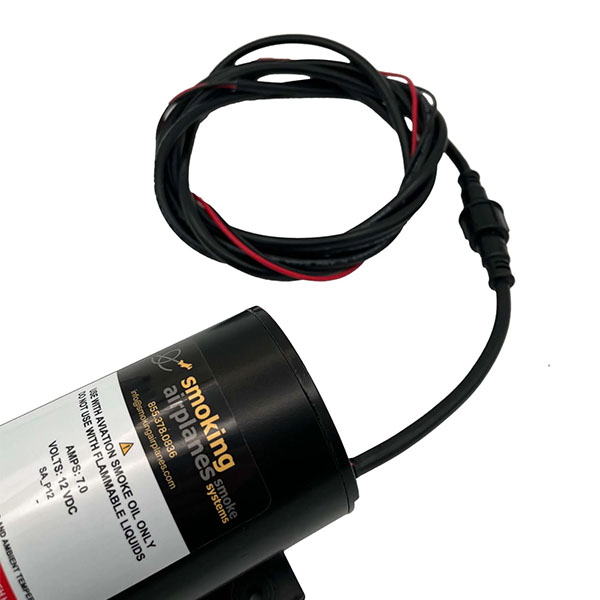

OIL PUMP

Includes side mount bracket and hardware.

COMPONENTS

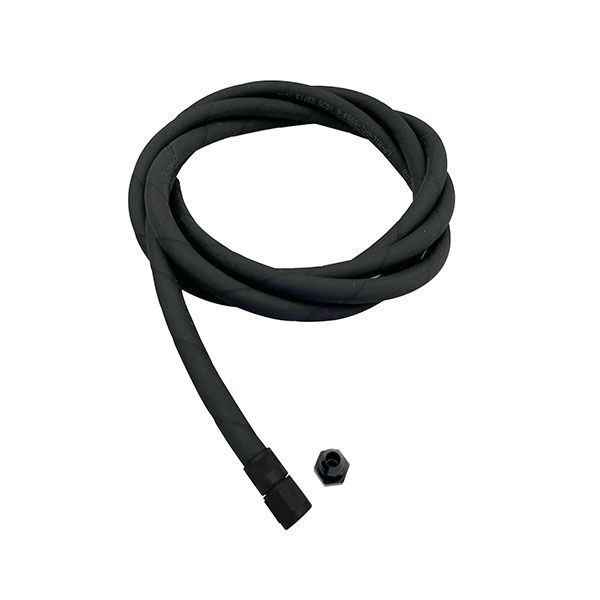

Hoses, switches, injector, etc.

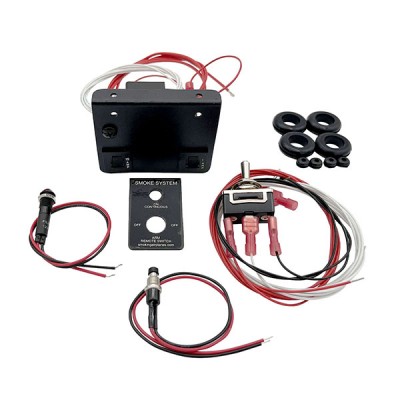

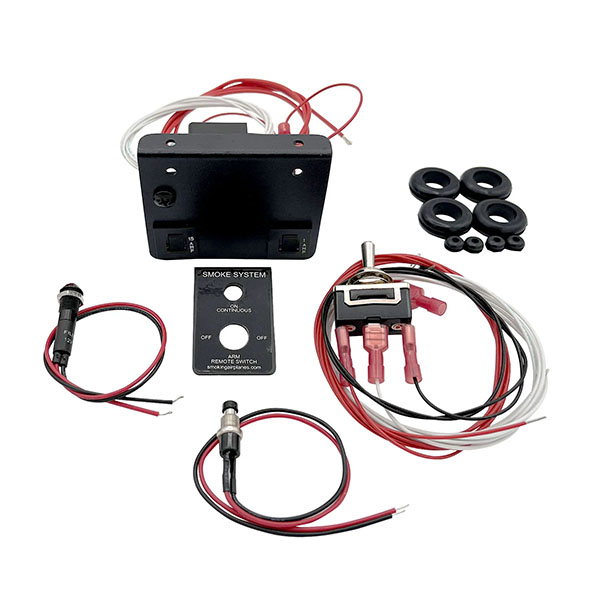

(includes Remote Switch Kit)

SMOKE OIL

5.5 US gallons at 8 pounds per gallon

SA-200 SERIES KITS TOTAL WEIGHT FULL (everything included)

 16 POUNDS

 60

POUNDS

 5

POUNDS

 3

POUNDS

44

POUNDS

63

POUNDS
