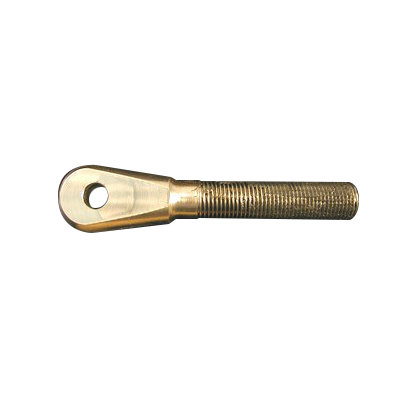

Aeronca Wing Lift Strut Forks U1-2543

$157.75/Each
Quantity
Add to Wishlist
Part# 05-08575
MFR Model# U1-2543

Overview

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I am trying to find a replacement strut fork end for my 1940 Rearwin Skyranger and this item seems to be suitable but I cannot find the dimensions for this item. Can you please give me the thread size, overall length and bolt hole diameter? Also, is the price shown for a single fork or for two as shown in the item picture?

The approx. dimensions are: 1/2-20 UNF-2A thread, 3-3/4" Length, 5/16" Bolt Hole Diameter. These forks are priced and sold individually, not as a pair.

Q: What is the dimension of the opening in the fork? Thanks

The opening from the top from hole to hole would be .210". Measuring from the bottom opening width would be .623". ID of the hole would be .312".

Q: What is width of slot between ears of fork?

The width of the slot is approximately 0.2188 inches.

Q: What is the dimension between the hole and the beginning of thread?

Center hole to threads 3-5/16.
