Description | Part Number |
Thread | Hold Dia. |
Inside Width |
Strength | Price | Buy |
---|---|---|---|---|---|---|---|
AN665-10R Terminal Assembly | 05-02300 | 6-40 | .190 | .109 | 1200 | $27.50 | |
AN665-10L Terminal Assembly | 05-02400 | 6-40 | .190 | .109 | 1200 | $24.99 | |
AN665-21R Terminal Assembly | 05-02500 | 10-32 | .190 | .150 | 2400 | $25.75 | |
AN665-21L Terminal Assembly | 05-02600 | 10-32 | .190 | .150 | 2400 | $26.50 | |
AN665-34R Terminal Assembly | 05-02700 | 1/4-28 | .250 | .203 | 4200 | $44.70 | |
AN665-34L Terminal Assembly | 05-02800 | 1/4-28 | .250 | .203 | 4200 | $45.50 | |
AN665-46R Terminal Assembly | 05-02900 | 5/16-24 | .313 | .203 | 4600 | $57.75 | |
AN665-46L Terminal Assembly | 05-03000 | 5/16-24 | .313 | .203 | 4600 | $58.75 | |
AN665-61R Terminal Assembly | 05-03100 | 5/16-24 | .375 | .203 | 6900 | $67.75 | |
AN665-61L Terminal Assembly | 05-03200 | 5/16-24 | .375 | .203 | 6900 | $67.80 | |
AN665-80R Terminal Assembly | 05-03300 | 3/8-24 | .375 | .266 | 10000 | $81.90 | |
AN665-80L Terminal Assembly | 05-03400 | 3/8-24 | .375 | .266 | 10000 | $81.90 |

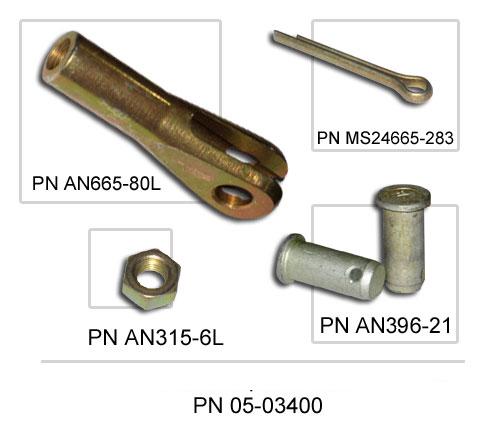

These terminal assemblies include the AN665 terminals plus the appropriate lock nut, clevis pin, and cotter pin. |
Nice kit, be sure to double check the pin size on your carb or fuel control as this will determine if you need the 1/4 inch or 10-32 option.
AN665-21R TERMINAL ASSEMBLY
Just installed and fits as expected
AN665-21R TERMINAL ASSEMBLY
Just installed and fits as expected
AN665-21L TERMINAL ASSEMBLY
Just installed and fits as expected
AN665-34R TERMINAL ASSEMBLY
Just installed and fits as expected
AN665-34L TERMINAL ASSEMBLY
AN665-21R TERMINAL ASSEMBLY
all stars
AN665-34R TERMINAL ASSEMBLY
Best way to buy is the complete kit!! Good product
AN665-21R TERMINAL ASSEMBLY
Was happy with the cleviss . I have always received good service from aircraft spruce
AN665-21L TERMINAL ASSEMBLY
Just what it said it was. And it got here fast. Thanks
AN665-34R TERMINAL ASSEMBLY
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Correct, the R at the end of the part number indicates it has standard right hand thread. Turn right to tighten.
The AN665-34L will accept a 1/4-28 left hand thread rod end. The part number will depend on what bore size you are needing for the rod end.
