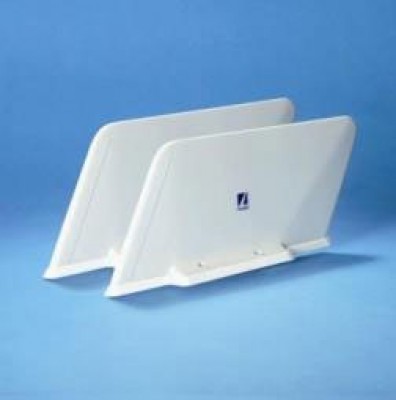

Comant VOR/LOC/GS Antenna CI-120-200G/S-L
MFR Model# CI-120-200G/S-L
Overview
|
Frequency • 108-118 MHz (VOR/LOC) 329-335 MHz (GS) VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single engine, twin, jet, and helicopter aircraft. Blades have leading edge protection andcome with rubber gasket enabling mounting on curved vertical stabilizers. Provides glideslope reception capability. Complete set includes a pair (2) of blades, each with single BNC connector output, two coax i nterconnect cables. Dual output signal combiner providing for separate RF cable runs to the avionics installation for NAV1 and NAV 2 receivers, is included. Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.
Applications
Frequencies Covered
108-118 MHz (VOR/LOC) |
Specifications
Electrical | |
Frequency | 108-118 MHz (VOR/ LOC) |
VSWR | 6.0:1 108-118 MHz (VOR/ LOC) |
Polarization | Horizontal |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms Nominal |
Power | Receive Only |
Weight | 1.4 lb. Per Blade |
Height | 6.0 in. Maximum |
Material | Molded Radome |
Finish | Polyurethane Enamel |
Connector | BNC/ Single Output Combiner |
Temperature | -55ºC to +85ºC |
Altitude | 50,000ft. |
Air speed | 600 Knots TAS @ 25,000 ft |
RTCA Environmental | DO-160D |
FAA TSO | C34e, C36e, C40c |
RTCA MOPS | DO-192, DO-195, DO-196 |
Documents
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is a complete set which includes a pair (2) of blades, each with single BNC connector, and two coax interconnect cables.
We have added the drawing to the website in the Documents section.
