- Photo may represent series and not specific product
- SHARE

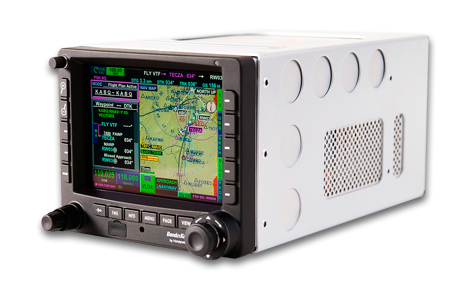

King Ksn 770 Integrated Safety Navigator
MFR Model# 066-01204-0101
Overview
|
Note: King KSN 770 can only be sold to experimental aircraft applications. An affordable, WAAS-Enabled, Integrated MFD with a flexible hybrid user interface Get your fingers on the 770’s hybrid interface; the perfect blend of touch screen and hard buttons. Easily control your GPS navigation, NAV/COMM, weather, traffic and terrain in any condition. The KSN 770 helps you navigate in the soup with confidence. Industry-Leading Integration Welcome to the next-generation, WAAS-Enabled, Integrated Safety Navigator. The KSN 770 combines GPS navigation, Nav/Com, terrain mapping, charting and safety sensor displays. It will also display XM Datalink Weather, radar-based weather, traffic and terrain. The combination of hard buttons, cursor control and touchscreen. Enhanced Safety and Situational Awareness The KSN 770 features Wide Area Augmentation System (WAAS) and Localizer Performance with Vertical Guidance (LPV). It also displays a full complement of safety systems including: On-board weather radar, Enhanced Ground Proximity Warning System (EGPWS), XM Datalink Weather, Terrain awareness and warning System (TAWS) and Traffic Collision Avoidance System (TCAS). And split-screen capabilities. Never before have so many features been designed into an MFD that will bring value to the pilot in terms of safety and ease of use. |
Features
- High-res VGA display (5.7" diagonal, 5.25" high).
- Hybrid user interface - Touch screen, hard keys and cursor control device (CCD)
- Electronic charts and maps.
- WAAS GPS enroute and approach navigation system.
- **TCAS and Radar, **TAWS and Stormscope.
- XM WX interface.
- 10W COM with optional high-power 16W COM.-Digital radio core
- Analog and digital inputs/outputs.
- EPIC/APEX FMS Core.
- Open architecture integrates with a variety of sensors.
- Simple to use - 1. No “Home” key required 2. Direct access keys
- Affordable pricing, extensive dealer network.
- Enhanced ground proximity warning system (option).
- Nav/Com (10W Com with 16W option)
Specifications
- Size: 6.25" W x 5.25" H x 10" D
- Weight (770/765): 9.9/8.1 lbs
- Power: 11-33 VDC
- Screen Diagonal/Display Size: 5.7" Active matrix LCD
- Resolution: 640 W x 480 H pixels (Full VGA)
- Nav/Com: 10W Com (16W option)
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The King KSN 770 Integrated Safety Navigator is capable of displaying Traffic Collision Avoidance System information (TCAS).
The price for the King KSN 770 Integrated Safety Monitor would be the same regardless of the aircraft it is purchased for.
Per Honeywell, the KSN 770 Integrated Safety Navigator is not currently an approved source to be ADS-B out compliant.
The price of the KSN 770 would include the rack, installation kit, and data card. The monthly subscription is not included and must be purchased through Seattle Avionics.
The price of the KSN 770 would include the rack, installation kit, and data card. The monthly subscription is not included and must be purchased through Seattle Avionics.
Per Honeywell, The KSN 770 will support both 25 and 8.33 Khz spacing.
