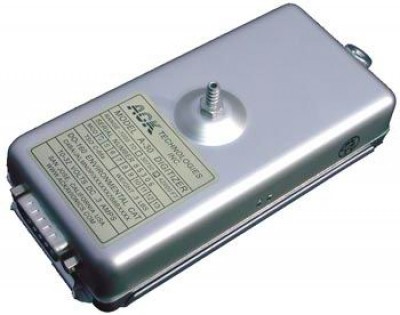

- Photo may represent series and not specific product
- SHARE
ACK A-30.5 Altitude Encoder FAA TSO
MFR Model# A-30.5
Overview
|
Add Mode C capability to your aircraft the most cost-effective way. The ACK encoder features the latest solid-state electronics for high reliablity. Installation is quick and easy and usually is completed in less than one hour. It is compatible with most transponders in use today and reports altitude to 30,750 ft. Includes quick-release mounting try, 4-ft. color-coded wiring harness with prewired jack, static line and fittings for installation in any aircraft, and installation manual in any aircraft, and installation manual with popular transponder pin-outs. 3 year warranty. Includes: |
Features
- High Quality Construction
- Gold Plated Connectors
- Diecast Aluminium Chassis
- Anodized
Specifications
- Approvals: FAA TSO C-88a
- German LBA 10.221/4
- Range: MOD 5 –950 to 30,750 feet /w gray code Output
- Accuracy: Typical +- 20 feet Maximum +- 50 feet
- Size: L 6” W 2.65” H 1.3”
- Weight: 5.1 oz (144 grams)
- Operating voltage: 10 to 32 VDC
- Operating current: 60 mA typical
- Operating temp: -4 to +131° F -20 to +55° C
- Warm-up current draw: 14VDC 420 mA 28VDC 220 mA
- Warm-up time: 70° F ambient 60 seconds 0° F ambient 210 seconds
- Altitude resolution: Gray code (parallel) output 100ft
Documents
Warranty
- Avionics products manufactured by ACK Technologies, Inc. are warrantied against defects in materials and workmanship for a period of three years from their manufacture date. This warranty is limited exclusively to repair or replacement of the E-04 ELT and associated parts which were manufactured by ACK Technologies, Inc. the defective parts must be returned freight prepaid to our manufacturing facility. This warranty does not include repair or replacement of any part that has been improperly used, installed or physically damaged. This warranty does not cover any damage caused by chemical exposure. Discharge of the ELT lithium battery is not covered by this or any other warranty. Except as provided herein ACK Technologies, Inc. makes no express warranties, and any implemented warranty of merchantability of fitness for a particular purpose is limited in its duration to the duration of the written limited warranties set forth herein. ACK Technologies, Inc. shall not be liable for any direct, indirect, special or consequential damages arising from the use or misuse of this product. Except as provided herein no employee, agent, dealer, or other person is authorized to give any warranties of any nature on behalf of ACK Technologies, Inc. YOU MAY HAVE ADDITIONAL LEGAL RIGHTS WHICH VARY FROM STATE TO STATE
Reviews
Reasonable price and works as advertised.
Verified Purchase
ACK A-30.5 Encoder 30K
As described.
Verified Purchase
ACK A-30.5 Encoder 30K
Verified Purchase
ACK A-30.5 Encoder 30K
Arrived in 10 days to Italy, perfectly working to replace my broken one Thanks
Verified Purchase
ACK A-30.5 Encoder 30K
would buy again
Verified Purchase
ACK A-30.5 Encoder 30K
purchased this to replace the new AmerKing AK350 (FAA withdrew TSO Mar 2016). This product also previously used for years in my aerobatic experimental. Small , lightweight, easy to integrate. Mark Y
Verified Purchase
ACK A-30.5 Encoder 30K
MIst informent on model to buy from ACK
Verified Purchase
ACK A-30.5 Encoder 30K
Looks like it will work ok
Order fulfilled and delivered as promised.
Easy to install and works as advertised!!!
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per Garmin the ACK encoder with give the SL 70 altitude information on the display.
Yes, the ACK A-30.5 is compatible.
Yes the ACK A-30.5 will work with the Becker transponder.
Yes, the ACK can work with the Narco AT 50A. In the manual shows the wire diagram. In the box is a 4 foot harness, 4 foot pitot-static line, installation hardware and the installation manual.
Per the manual for the ACK-30.5 Altitude Encoder, they do give the wiring diagram for the King KT76A.
Per the Manual, The ACK A-30.5 is compatible with the KT76C.
Per the Manual, The Ack 30.5 is plug compatible with all earlier Ack 30 models.
Yes, the A30.5 is compatible with the GTX 328.
Yes, they are compatible.
Yes, this will work with the Garmin GTX 335. Garmin also makes an encoder which plugs into the back of the transponder, which can be found under part number 11-14162.
