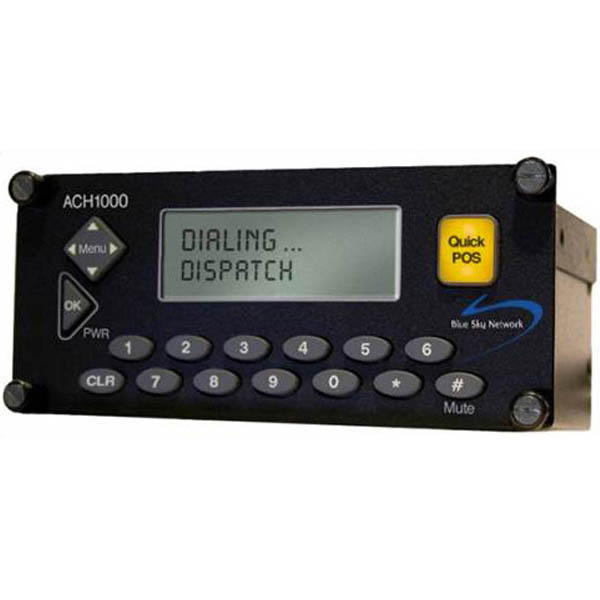

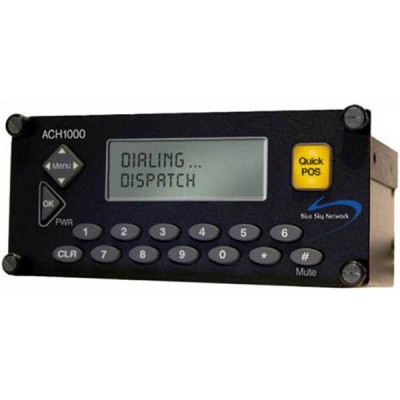

Ach1000 Advanced Control Head Transceiver

0 Reviews 0 Answered Questions
$4311.00/Each
Quantity
Add to Wishlist
Part# 11-15233
MFR Model# ACH1000

Overview

Blue Sky Network’s Advanced Control Head (ACH1000) aviation transceiver is the perfect tool for pilots, operators, and fleet managers around the globe. Working in conjunction with our D1000-series Iridium transceivers, it is the ideal upgrade to add voice and messaging capability to and from the cockpit. The ACH1000 control head integrates with the on-board intercom system, allowing the pilot or co-pilot to easily dial or receive calls directly through the headset. Users can pre-program up to 10 speed-dial numbers, delay, route diversion and weather requests. The crew can also easily receive and read email messages from the iridium transceiver display. Moreover, with the simple push of a Quick Position (QPOS) button located on the ACH1000 display, a message is quickly sent to the SkyRouter portal, key email addresses, and mobile phones.

Pole-to-Pole Global Iridium Satellite Coverage:
The Iridium low latency global network is made up of 66 Low Earth Orbit (LEO) satellites that provide tracking coverage anywhere in the world.

Enhanced Fleet Communication:
Short code messages can be sent from the ACH1000 device to SkyRouter. E-mail can also be received by the ACH1000.

Enhanced Aircraft Location:
Send messages back and forth from HQ, even where there is no cellular coverage.

Quick Position Button:
Quick Position (QPOS) alert button, two-way messaging, and optional voice capability allows pilots to notify command center in aviation emergencies, when used with the D1000A and D1000C transceivers.

Ease of Use and Flexibility:
SkyRouter, cloud-based web portal, allows users to conveniently access and communicate with assets.

Seamless Headset Integration:
The ACH1000 connects easily to the D1000-Series transceiver and the on-board Intercom system for seamless headset integration.

Features

  • Global Iridium voice calls via D1000A or D1000C transceiver
  • Quick Position (QPOS) alert button
  • Speed dial or standard dial options
  • Pre-programmed short code messages
  • Flight planning

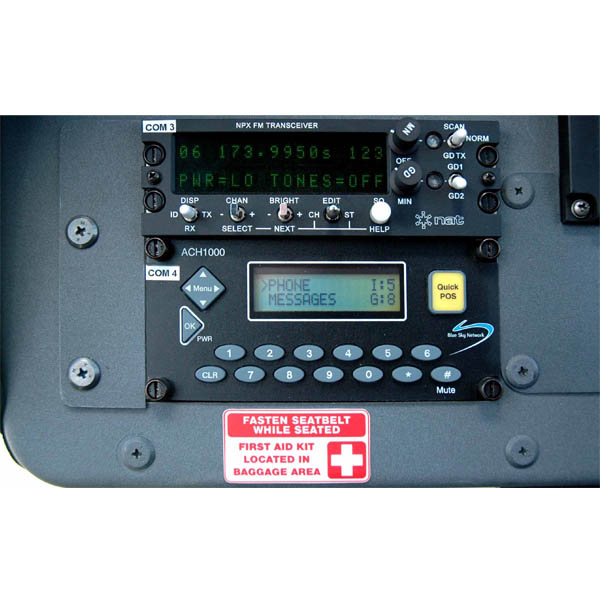

  • Integrates with on-board intercom system
  • LCD display
  • Remotely manage all settings from SkyRouter, our cloud-based web portal
  • Optional indicator for incoming call and message waiting
  • Certifications: FAA, EASA, ANAC, Iridium

Specifications

  • Dimensions: 2.6″ x 5.0″ x 5.0″
  • Weight: 1.5 lbs
  • Connectors: DB25 connector for connection to D-Series product and on-board intercom DB9 connector for power
  • Optional LED : Indicator for incoming call and message waiting

Service Plans

Click Here For information on Service Plans
The ACH1000 requires a voice service plan for communications.
