- Photo may represent series and not specific product
- SHARE

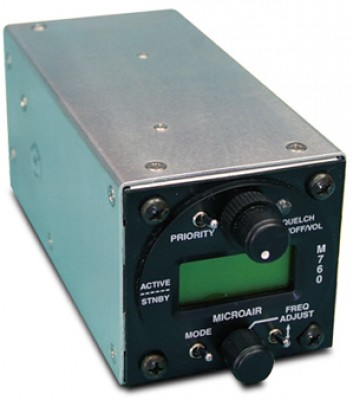

Microair M760 Rev Q Transceiver
MFR Model# 827TRA1001-Q
Overview
|
Note: Harnesses are intended for use with experimental aircraft only. See "Harness" tab for details. Packed with features that include:-
All this fits in a 57 mm (2 1/4'') instrument hole and weighing in at 416g (14.67oz). Have you considered the luxury of running 2 coms? APPROVALS
DOWNLOADS See brochure for detailed specifications. |
Harness
Note: Harnesses are intended for use with experimental aircraft only.- Part No. 11-11921 (M760 2 PLACE SIDE BY SIDE HARNESS W/O JACKS): Comes with 4 foot leads for power, ground, pilot, & co-pilot. Jacks required but not attached. (see Accessories)
- Part No. 11-11926 (M760 2 PLACE SIDE BY SIDE HARNESS W/ JACKS): Comes with 4 ft leads for power and ground. Jacks are attached.
Reviews
Installed to replace previous M760 that was malfunctioning. New one works great using recommended MicroAir antenna.
Verified Purchase
Microair M760 VHF COMMTransceiver Rev Q
I am very happy with my micro air!
Great radio! High performance and power!
Received the 760 and wire harness . There was not a single piece of paper with either. No installation manual, no wiring diagram, no warranty information and the wiring harness completely void of any labeling or pin numbers. very disappointed in documentation that has to be located downloaded and printed and wiring rung out.
Unable to read the screen in sunlight. Cannot adjust screen intensity. Very disappointed.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is used for glider aircraft. Most pilots just use a general aviation headset or ultra light headset/helmet which has a mic built in.
No, the Microair M760 is not a certified (TSO'd) com and is intended for experimental aircraft.
This is com radio that is 118.000 to 136.975 with 25 channel spacing.
We use shielded 2 conductor. It is available under our part number 11-05650.
Yes, this unit has dual monitoring capabilities.
No, it is not compatible.
25 Mhz spacing.
The Microair M760 has a built in intercom eliminating the need for an external intercom.
Depth of this unit is 5.3 inches.
You can use the AV-10 top mount antenna or the AV-17 bottom mount antenna. Either of those will work great for this radio
