Red Tail Airband Bent Antenna

$271.95/Each
Quantity
Add to Wishlist
Part# 11-13829

Overview

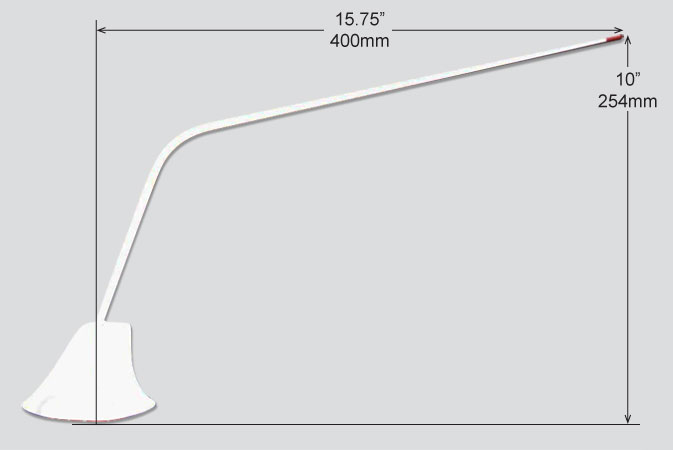

Bent (bottom) Airband Whip Antenna
Non-TSO’d for Experimental aircraft

Delta Pop Aviation Red Tail™ Antennas are the best non-TSO’d antennas we have found, with performance as good as the best TSO’d units.

Features

  • Frequency - 118 to 137 MHZ
  • VSWR - Less than 2.5:1 Measured with Anritsu Antenna Analyzer
  • Polarization - Vertical
  • Impedance - 50 Ohms
  • Connector - BNC Female
  • Element - Tapered Aluminum UV Resistant Powder Coated
  • Configuration - DC Grounded To Reduce “P” Static
  • Mounting - 8-32 x .437” long threaded studs
  • Weight - 6.5 oz / 184 grams
  • Finish - White Polyurethane
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

It works well and looks good in very happy

David Verified Purchase

Red Tail Airband Bent Antenna

December 21, 2023

As ordered

Montana A Verified Purchase

Red Tail Airband Bent Antenna

February 2, 2023

Installed on bottom of T18 and lowest/best VSWR Ive seen very close to 1:1 across 118-136Mhz. Very happy with this antenna.

Brad S
September 6, 2022

I installed this on the turtle deck of my Experimental Avid Mark IV . Once I got the turtle deck grounded properly this antenna worked exceptionally. I could hear other Traffic 70 plus miles away running it on an Icom handheld. Other traffic could hear me well also. I will be installing another one on my current project.

Vance S
February 14, 2020

Great antenna looks good and works

Danny D
September 13, 2019

I have this antenna and 3 others on my RV-8 from DeltaPop. Com Radio,Transponder and UAT performance is exceptional. They stand behind their product and service is above and beyond all my expectations.

Al R
July 7, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Red Tail Airband Bent Antenna work with the MGL - V6 radio?

Yes this this antenna will work with your MGL-V6 radio.

Q: How many mount bolts?

It has two mount studs.

Q: Is the Red Tail antenna a top or bottom mount antenna?

This is a bottom mount antenna.

Q: Will this antenna work with the Garmin GTR 200B?

Yes, This antenna will work with the GTR-200B. The antenna is non-TSO'd so it can only be used with homebuilt / experimental aircraft

Q: Will this Red Tail Airband Bent Antenna work on composite aircraft (Glastar)?

Yes, this will work with composite aircraft.
