Home / Avionics / Transponders / Stratus /Appareo Stratus 3I Kit
Main Image

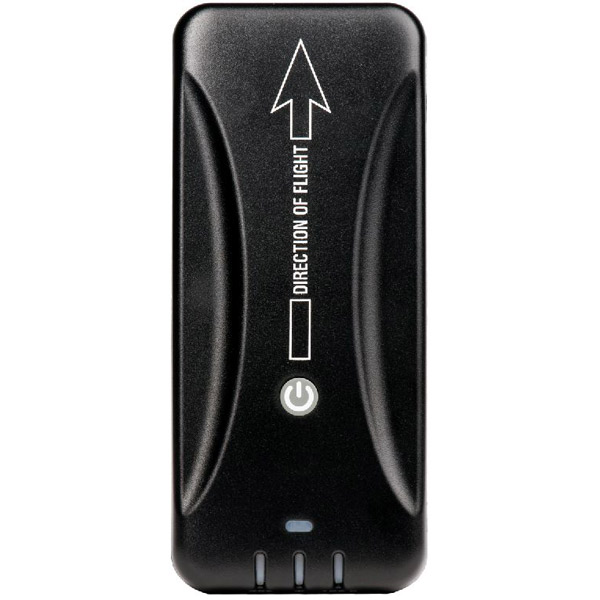

Appareo Stratus 3I Kit

3 Reviews 14 Answered Questions
$917.00/Each
Quantity
Add to Wishlist
Part# 11-16561
MFR Model# 153010-000062

Overview

Requires connection to Stratus ESG.

Features

  • Stratus 3i (ADS-B IN)
  • Non-certified receiver made only for Stratus ESG
  • Backup AHRS
  • Integrated with ForeFlight on iPad
  • Requires connection to Stratus ES

In The Box

  • Stratus 3i Assembly
  • CON PM BNC Jack to Blind Mate Adapter
  • CON 9 Pin DSUB with Mounting Hardware
  • MS-151 to BNC Cable – 5 ft
  • Right Angle USB Type C to 9 Pin D-Sub, 5 ft
  • Stratus Window Mount Clip
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Provides full featured integration with I Fly GPS. AHRS, weather, traffic. Nothing more needed. The 3i is the internal version which means it is designed for a semi-permanent installation in the aircraft. It does not contain a battery and it connects to the external antennas used for the Appareo transponder. Theoretically, it will have greater range than the regular portable Stratus 3 when relying solely on its internal antennas.

Chris_b
December 20, 2023

Works very well with an iPad running Foreflight. I can see traffic around me, metars, etc.

Mike B Verified Purchase

Appareo Stratus 3I Kit Receiver
October 15, 2021

Phillip W Verified Purchase

Appareo Stratus 3I Kit Receiver
September 4, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have a Stratus ESG already installed in my 1969 Cherokee 140. Does this kit have everything that I will need to have ADSB in, and to hardwire it to my transponder?

Yes, this comes with all components needed to connect to ESG transponder.

Q: Will this 3i slide right into the connection where a 2i currently sits? I just installed the ESGi with the 2i and the 2i has three red lights indicating that its fried. So, Im ready to go with the 3i if there are no special installation requirements over the 2i. If the 3i slides right in, is it possible to get JUST a 3i without the install kit? Thanks!

Per the manufacturer, yes, the Stratus 3i 11-16561 is plug and play with the 2i.

Q: Does this work with foreflight to give you in flight wx, synthetic vision with attitude?

Per the manufacturer this will work with Foreflight showing you those features.

Q: What is the weight of this Appareo Stratus 3i component/unit?

The Stratus 3I weighs approx 0.40 lbs on it's own.

Q: Will this work with the iFly like the stratus 3?

Yes, this will work with the iFly GPS.

Q: Will this work with Garmin Pilot?

Per Manufacturer, the Garmin Pilot is not compatible.

Q: Will this work with FlyQ?

The Stratus 3i will work with FlyQ with limited functionality.

Q: Will the stratus 3i work with the Garmin aera 660 portable GPS?

No, the stratus 3i will not work with the Aera 660.

Q: Does the 3i have an internal battery and will it continue to operate if aircraft power is lost (like a Stratus 3 portable)?

Based on the 3i installation manual, it will require aircraft power in order to function.

Q: Will this Appareo Stratus 3I kit work with ifly on an andriod tablet?

Per the manufacturer, yes, this will work with ifly GPS.
