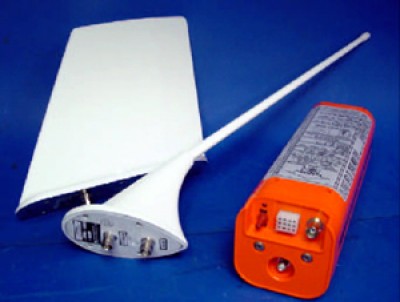

This system operates on the latest Search and Rescue (SAR) frequency of 406.025 MHz in addition to 121.5 and 243 MHz. It comes ready to connect to the Artex ELT to NAV interface, which enables the ELT to transmit Latitude and Longitude data (P/N 455-6500). The system includes an ELT transmitter, LiMnO2 5-year Battery Pack, Mounting Bracket, Remote Switch, Horn/Buzzer, Coax Cables, High Speed Rod Antenna, Installation Hardware, and an Installation and Operation Manual. The antenna system is approved for aircraft operating speeds up to 350 knots. The C406-1 uses a single connector antenna and a single coax feed cable to accommodate all three frequencies. COSPAS/SARSAT, FAA TSO C126 and JTSO-2C126 Approved. |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This kit (part number 11-02985) includes a high speed rod antenna.
Per Artex, the tray and cover between these two units will be the same, however, the cap will need to be changed to 452-5052. Ensure that your antenna has a dual input type, as the C406-2 is a dual output antenna. C406-1 and C406-N are single output antenna models.
