RAMI AV-1 Base Station Antenna

$519.00/Each
Quantity
Add to Wishlist
Part# 11-05996
MFR Model# AV-1

Overview

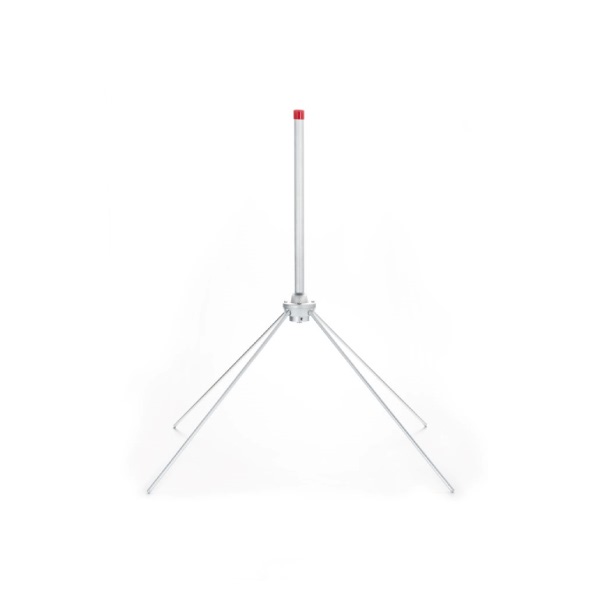

The AV-1 is a base station antenna for comminucations with ground vehicles or aircraft. It has heavy-duty construction with 3/8" diameter aluminum radials, a 1" diameter aluminum tube radiator, and is iridite-treated for durability. It mounts easily to a 1" diameter pipe or a 1-1/4" O.D. tube with locking set screws. A built-in gap-type lighting arrestor is an important design feature. The antenna requires no additional tuning and is designed to withstand windspeeds of up 100 mph.

Click here to download
the Outline Drawing in PDF format.

Specifications

  • Application: VHF Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 2.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type PL-259
  • Max Weight: 2.75 lb
  • Max Height: 34
  • RF Power Capacity: 1000 Watts
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

It seems solid and well put together. Works just fine.

Jimmy
February 10, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this RAMI AV-1 antenna come with a cable or is it just the antenna?

The cable is not included with the antenna. Please see accessories tab for recommended cable.

Q: How is this RAMI AV-1 antenna attached to the mast: screwed or clamped?

Mounts easily to a 1" diameter pipe or a 1-1/4" o.D. Tube with locking set screws.

Q: What is the RAMI AV-1 antenna gain? (dBi or dBd, specify which)

Per the MFG.- our AV-1 antenna has 0 dBd gain.
