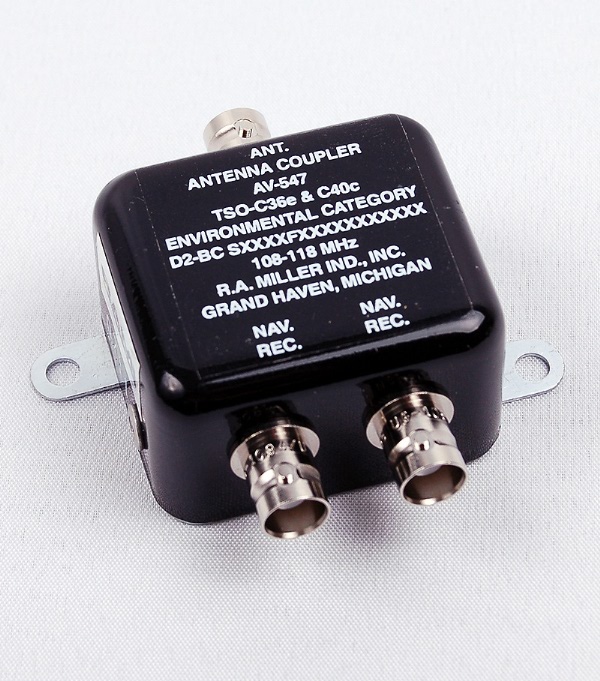

RAMI AV-547 Diplexer Coupler

$218.95/Each
Quantity
Add to Wishlist
Part# AV-547
MFR Model# AV-547

Overview

Splits the signal from a single NAV antenna into two NAV receivers; eliminating the need for a second antenna.

Application: Navigation
Frequency: 108 to 118 MHz
Impedance: 50 Ohms Nominal
VSWR: 1.4 to 1 Maximum
Connector: (3) Type "BNC" Females
Max Weight: 3.5 oz
Insertion loss: 3 dB Avg / 5 dB Max
Isolation: 30 dB Minimum
Dimensions: 2" x 1-3/3" x 1-1/8"
RF Power Capacity: Receive only

Click here to download
Outline Drawing in PDF format.
