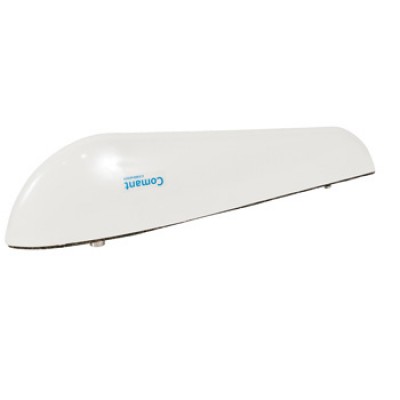

Frequency 75 MHz Designed for use with the modern, high sensitivity marker beacon receivers. Small and lightweight, featuring 4-hole internal mounting for simple installation. Antenna assembly is enclosed in an injection molded radome which is impervious to the tough environments typical of the underside of an aircraft. Skydrol and rain erosion resistant. DC grounded to minimize accumulation of precipitation static. |
MODEL CI 102 MARKER BEACON | |
Electrical | |
Frequency | 75 MHz |
VSWR | 1.5:1 Maximum / Return Loss -13.98 dB |
Polarization | Parallel to mounting plane |
Radiation Pattern | E-Field Parallel with Flight |
Impedance RF | 50 Ohms |
Resistance DC | DC Grounded |
Power RF | Receive Only |
Mechanical | |
Weight | 0.6 lb. Maximum |
Height | 2.15 in. Maximum |
Finish | Polyurethane Enamel |
Material | Molded Radome |
Connector | BNC |
Environmental | |
Temperature | -55¨¬C to +85¨¬C |
Altitude | 45,000 ft. |
Air Speed | 400 Knots TAS at 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160A |
FAA TSO | C35d |
RTCA MOPS | DO-138, DO-143 |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Comant no longer includes gaskets with their antennas. Please see part number 09-05579 for sealant recommended by Comant.
Please see replacement part # 09-05579.
