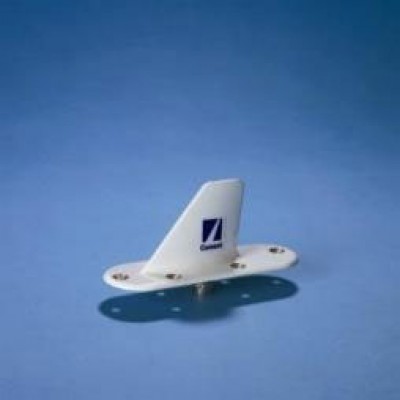

Frequency • 960 -1220 MHz All metal, low profile antenna is designed for business jet and commercial high speed aircraft. With a popular six hole mount and connector with short path to ground, this antenna is ideally suited for those aircraft equipped with standard and Mode S transponders. Tough one-piece construction provides175 lbs. side load capability. Moisture failure is prevented with completely sealed construction. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
MODEL CI 110-61 DME/XPDR | |
Electrical | |
Frequency | 960 to 1220 MHz |
VSWR | 1.5:1 960 to 1220 MHz |
Polarization | Vertical |
Radiation Pattern | Equivalent to 1/4 Stub/ Omnidirectional |
Impedance RF | 50 Ohms |
Resistance DC | Short Circuit |
Power RF | Peak 3KW Average 100 Watts |
Mechanical | |
Weight | 0.25lb. Maximum |
Height | 2.20 in. Maximum |
Material | Die Cast A380 Aluminum Alloy |
Finish | Polyurethane Enamel |
Connector | C(Female) |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 70,000ft. |
Air Speed | 600 Knots TAS at 25,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160D |
FAA TSO | C66c, C74c, C112 |
RTCA MOPS | DO-144, DO-189, DO-181 |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This requires a Coaxial C connector.
