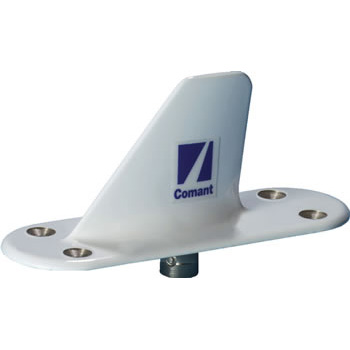

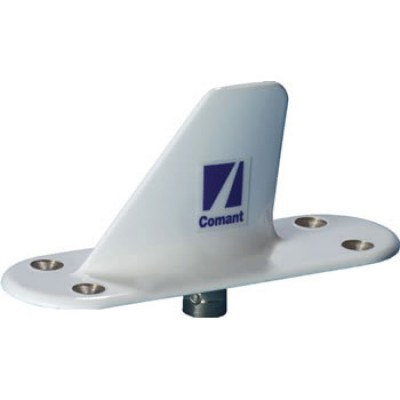

Comant DME / Transponder Antenna CI-110-41-30

$785.00/Each
Quantity
Add to Wishlist
Part# 11-06821
MFR Model# CI-110-41-30

Overview

Frequencies Covered
960 -1220 MHz

All metal, low profile antenna is designed for business jet and commercial high speed aircraft. With a popular four hole mount and connector with short path to ground, this antenna is ideally suited for those aircraft equipped with standard and Mode S transponders.

Tough one-piece construction provides 175 lbs. side load capability. Moisture failure is preventedwith completely sealed construction.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

MODEL CI 110-41-30
Electrical
Frequency
960-1220 MHz
VSWR
1.5:1 Maximum
Polarization
Vertical
Impedance RF
Omnidirectional- Equivalent to 1/4 Wave Stub
Radiation Pattern
50 Ohms
Resistance DC
Short Circuit
Power RF
3.0 KW Peak / 100 Watt Average
Mechanical
Weight
0.25 lbs
Height
2.25 Inches
Finish
Gloss White Polyurethane Enamel
Connector
C (Female)
Environmental
Temperature
-55ºC to +85ºC
Altitude
70,000 ft.
Airspeed
600 KTAS at 25,000 ft.
Federal Specifications
FAA TSO
C66c, C74c, C112 (Class 1A)
RTCA Envrionmental
DO-160D
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What part number or type of connector is needed to attach to this antenna?

Part # 11-01802 if you are using RG400 or 142 coax and part # 11-03992 if you are using RG58.
