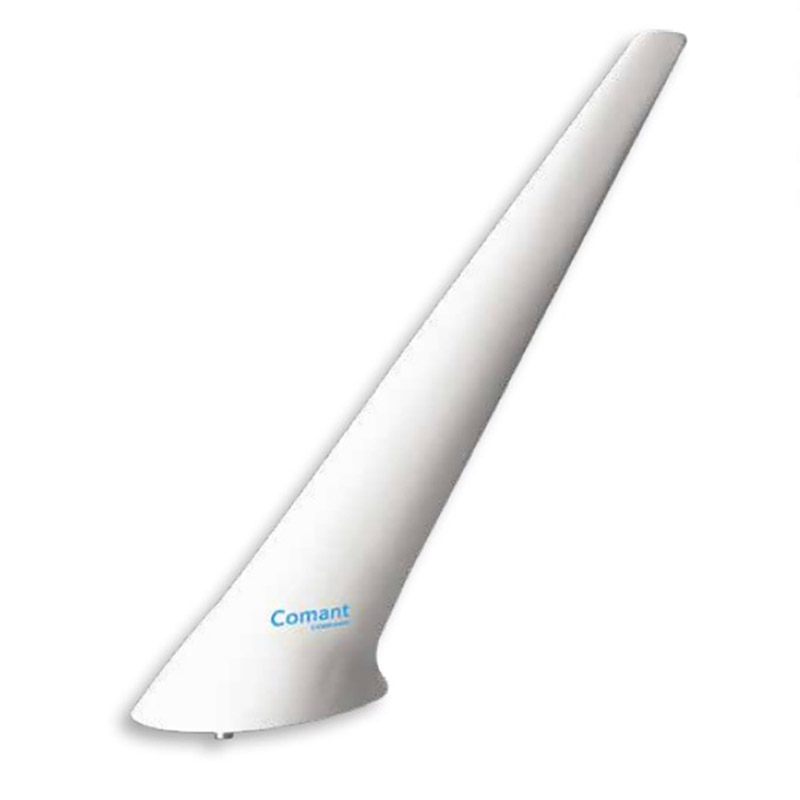

Comant CI-196 Comm Blade 4 Internal Hole Mount Offset

$1231.00/Each
Quantity
Add to Wishlist
Part# 11-19409
MFR Model# CI-196

Overview

Comant’s four internal hole mount blade style VHF communication antenna with offset BNC port. Equivalent to the CI 119 except for the mounting hole pattern. Suitable for either top or bottom mounting with both light and heavy fixed wing single engine / multi-engine and helicopter aircraft.

Specifications

  • Electrical
  • Frequency: 118-137 MHz
  • VSWR: 2.9:1 Max
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance RF: 50 Ohms
  • Power RF: 25 Watts

  • Mechanical
  • Weight: 1.25 lb
  • Height: 13.00 in
  • Material: Valox 420
  • Finish: Glossy White
  • Connector: BNC (female)

  • Environmental
  • Temperature: -55 to +85 Celsius
  • Altitude: 50,000 ft.

  • Federal Specifications
  • FAA TSO C37d, C38d

  • RTCA Environmental DO-160D
  • Gasket B19604

Documents

  • Light Fixed Wing Single Engine
  • Light Fixed Wing Multi-Engine
  • Heavy Fixed Wing Single Engine
  • Heavy Fixed Wing Multi-Engine
  • Helicopter
  • Always consult your installation shop for best application.
