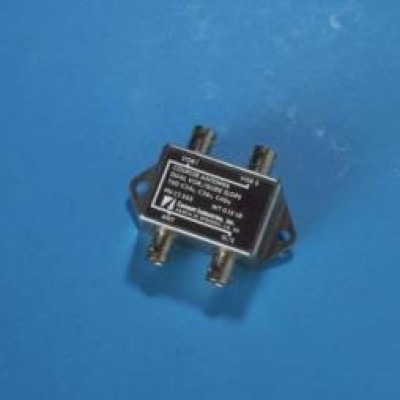

Comant Triplexer Dual VOR G/S - CI-505

$449.00/Each
Quantity
Add to Wishlist
Part# 11-17977
MFR Model# CI-505

Overview

Dual VOR coupler/single glide slope triplexer allows the operation of two VOR receivers and one glide slope receiver from one VOR/GS antenna. Compact design makes installation easy.

Specifications

MODEL CI 505 TRIPLEXER DUAL VOR / GLIDE SLOPE
Electrical
Frequency
108-118 & 329-335 MHz
VSWR
1.5:1 Maximum
Insertion Loss
0.5 dB Maximum
Isolation
20dB Minimum between any receiver port
Impedance RF
50 Ohms
Mechanical
Weight

0.20 lb. Maximum

Height
0.88 in. Maximum
Material
Die Cast Aluminum
Finish
Aluminum
Connector
BNC (Female)
Federal Specification
FAA TSO
C144
